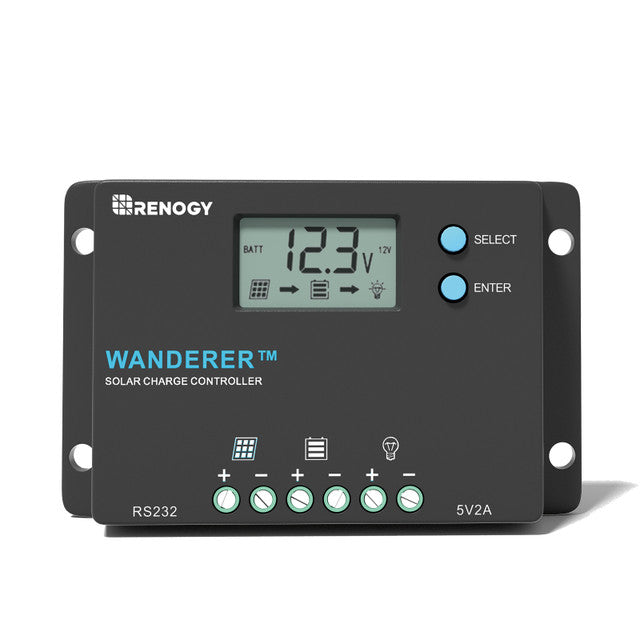

Renogy Wanderer 10 Amp Solar Charge Controller - Your Battery's Best Friend
Keep your batteries charged and ready for action with the Renogy Wanderer 10 Amp Solar Charge Controller! This amazing device features efficient PWM charging, enhancing battery life and improving overall system performance. It has a user-friendly interface with an LCD screen that shows battery info, making it easy to use.
• Efficient PWM charging for longer battery life
• User-friendly interface with LCD screen
• Protects against overcharging, over-discharging, and more
This advanced charge controller is perfect for off-grid solar setups. It works great with 12-volt or 24-volt batteries or battery banks. Its compact design makes installation a breeze. Plus, it has self-diagnostics and electronic protection to prevent damage from installation errors or system faults.
Don't let your batteries run low. Get the Renogy Wanderer 10 Amp Solar Charge Controller today!
Highlights
Automatically detects 12V/24V system voltage.
Pre-drilled mounting holes
Recommended wire size <12AWG
Full system protection to safeguard your energy system.
Maximum flexibility with multiple load control modes.

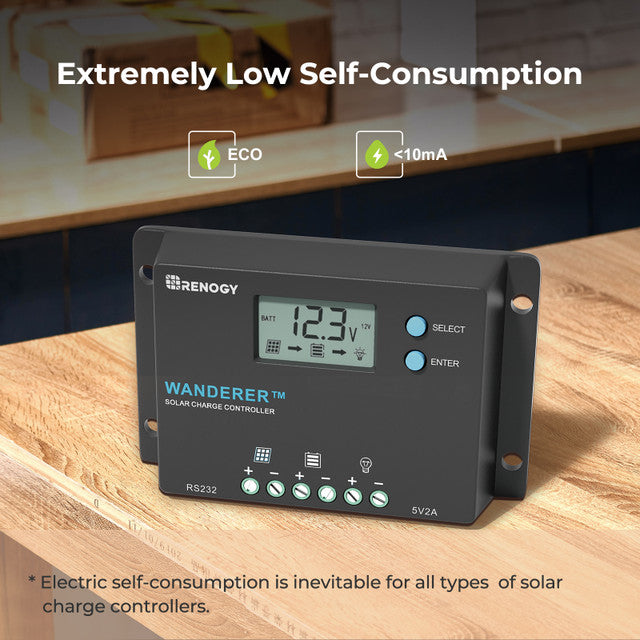

Extremely low self-consumption.

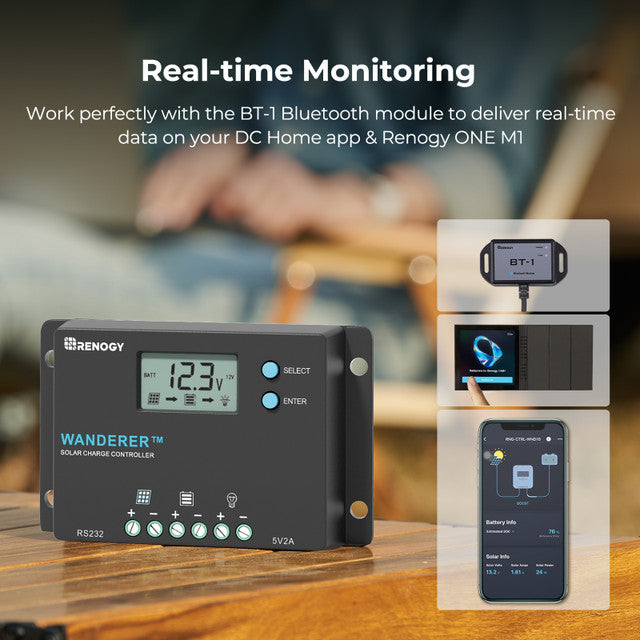

Real-time monitoring with integrated BT-1 to provide instant data on your DC Home app & Renogy ONE M1.

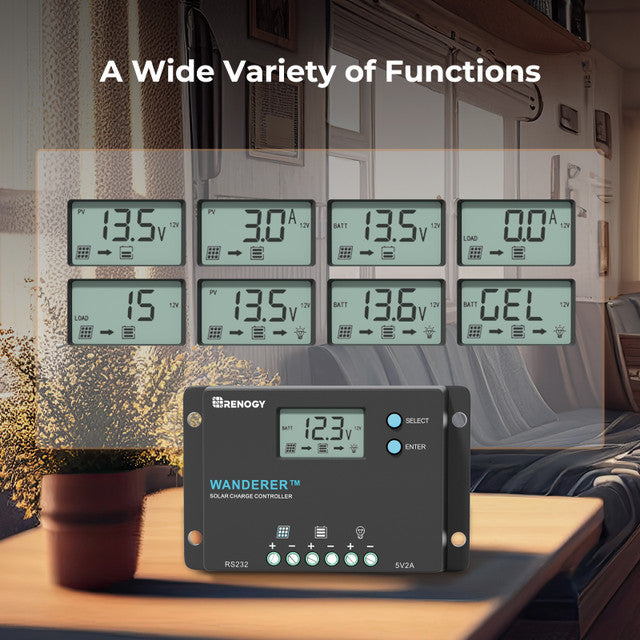

Backlit LCD
Strict quality control
SPECIFICATIONS:
Nominal Voltage: 12V/24V Auto Recognition for Non-lithium Batteries
Rated Charge Current: 10A
Max Gauge Size: Up to 12AWG
Max. PV Input Voltage: 50 VDC
Self-Consumption: <10mA
Working Temperature: -31°F - 113°F / -25°C - 45°C
Dimensions: 4.7 x 3.0 x 1.1 in / 119x75x27.5mm
Weight: 0.27 lbs / 122.47g
Storage Temperature: -31°F - 176°F / -35°C - 80°C
Temperature Compensation: -3mV/°C/2V
Max PV Input: 130W / 12V; 260W / 24V
Certification: CE / ROHS
Accessories: 2-Year Material Warranty
Charge Controllers: Wanderer
WHAT'S IN THE BOX:
1 x Renogy Wanderer 10A PWM Charge Controller
The Renogy Wanderer 10 Amp Solar Charge Controller is a must-have for anyone with off-grid solar setups. Whether you're a DIY enthusiast or a professional, this charge controller will keep your batteries in top shape. It's easy to install, thanks to its compact design and pre-drilled mounting holes. With dimensions of 4.7 x 3.0 x 1.1 in (119x75x27.5mm) and weighing just 0.27 lbs (122.47g), it won't take up much space or add a lot of weight to your system. The controller is suitable for use with 12-volt or 24-volt batteries or battery banks, making it versatile for different setups. It automatically detects the system voltage and has comprehensive protection functions to safeguard against overcharging, over-discharging, short-circuit, overload, reverse polarity, reverse current, and temperature compensation. Keep your batteries charged and your energy system running smoothly with the Renogy Wanderer 10 Amp Solar Charge Controller.
