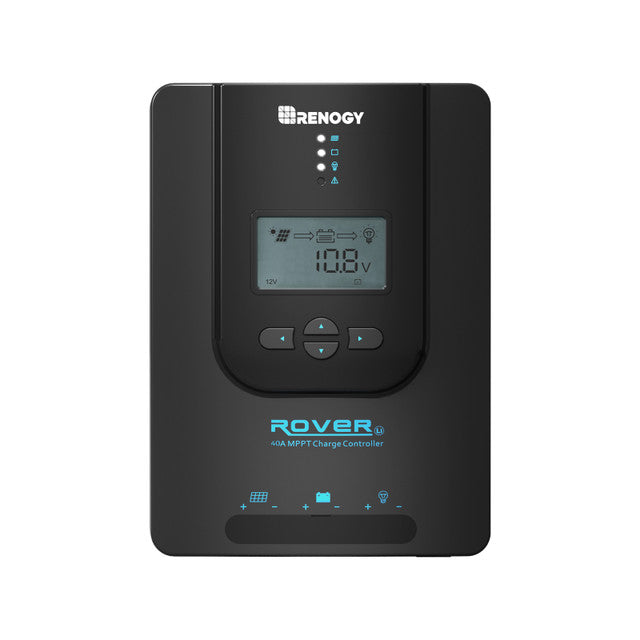

Renogy Rover Li 40 Amp MPPT Solar Charge Controller - Maximize Your Solar Efficiency
Are you looking to make the most of your solar panel system? Look no further! The Renogy Rover Li 40 Amp MPPT Solar Charge Controller is here to revolutionize the way you harness solar energy.
• High - Efficiency Charging: Utilizes MPPT technology to convert every bit of sunlight into usable battery energy.
• Wide Compatibility: Suitable for various solar panel setups, from small homes to large commercial projects.
• Advanced Safety: Equipped with overcharge, over - discharge, and overheat protection for long - lasting battery performance.

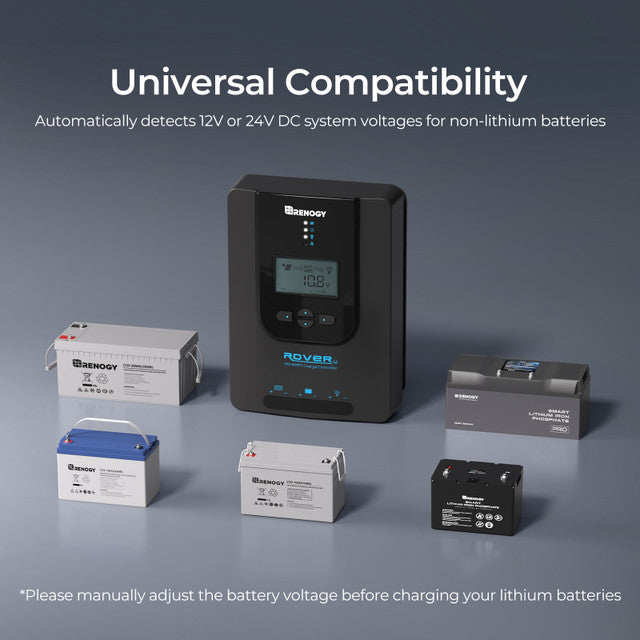

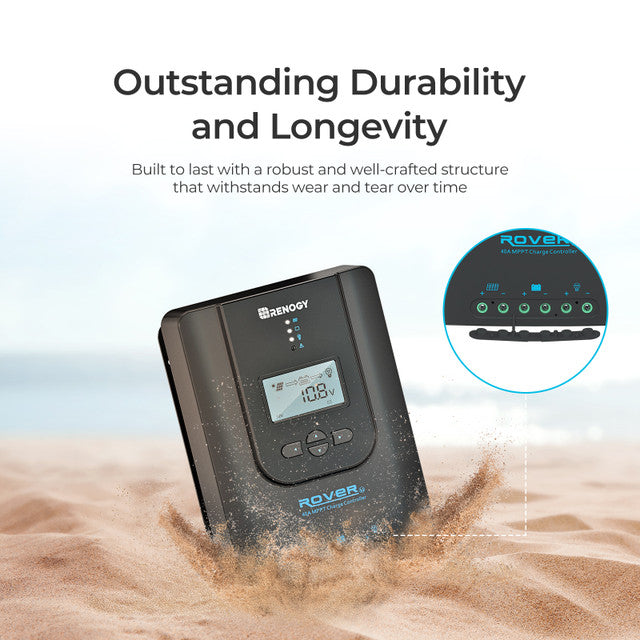

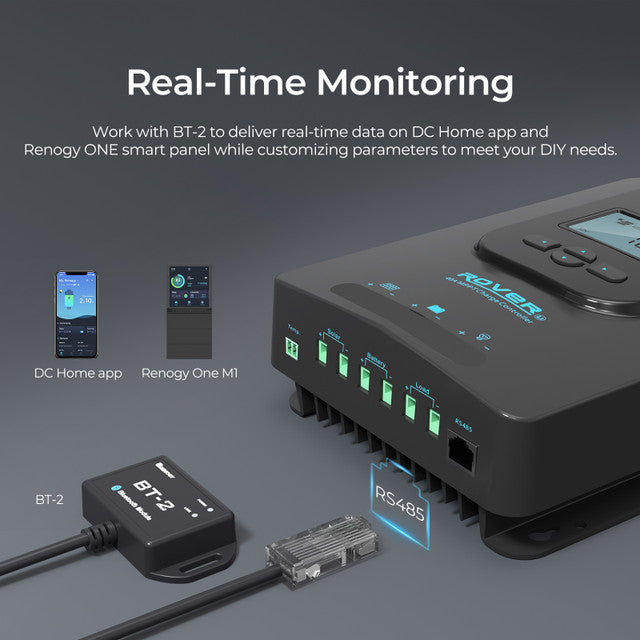

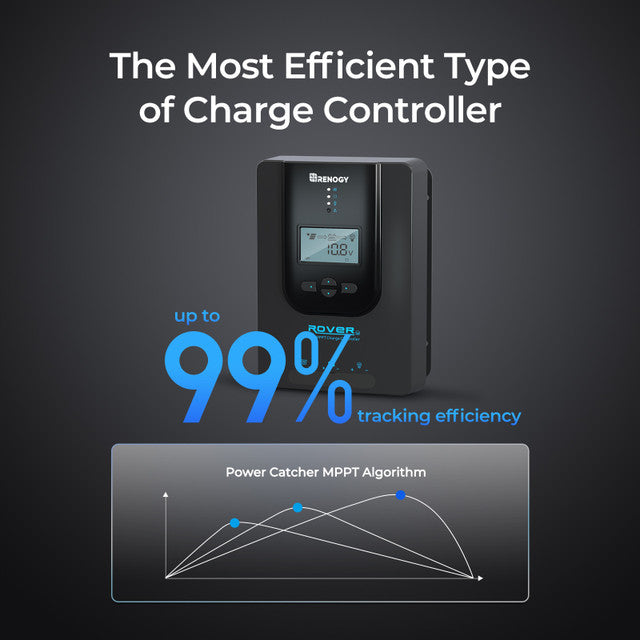

This charge controller is a game - changer. With its 40 Amp capacity, it ensures precise tracking of your solar panel's output, keeping your batteries charged optimally. It's also compatible with LiFePO4 batteries and offers custom charging parameters for a personalized experience. Real - time monitoring allows you to stay in control, while its 98% conversion efficiency and 99% tracking efficiency mean more energy savings. Made of robust die - cast aluminum, it's built to last. It automatically detects 12V/24V systems (non - lithium batteries), has simple programming, and powerful heat dissipation.
Invest in the Renogy Rover Li 40 Amp MPPT Solar Charge Controller today and start enjoying the benefits of a truly optimized solar energy system!
SPECIFICATIONS:
Electrical Parameters
Nominal System Voltage: 12/24V (Auto - Detect for Non - Lithium Batteries)
Rated Charge Current: 40A
Max. PV Input Voltage: 15VDC~100VDC
Max. PV Input Power: 12V/520W, 24V/1040W
Power Consumption: ≤100mA/12V; ≤58mA/24V
Battery Input Voltage Range: 10VDC~32VDC
Ground Type: Negative
Electrical Protection: Overcharging, over - discharging, overload, and short circuit. Capable of charging over - discharged lithium batteries.
Environmental Data
Protection Level: IP32

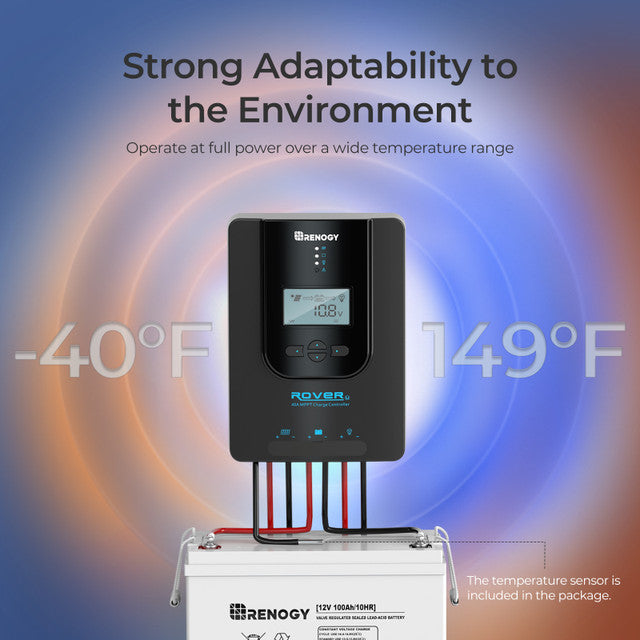

Operating Temperature Range: - 35°C to 45°C; - 31°F to 113°F
Storage Temperature Range: - 35°C to 75°C; - 31°F to 167°F
Operating / Storage Humidity: ≤90%, No Condensation
Temperature Compensation: - 3mV/°C/2V
Mechanical Specifications
Dimensions: 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in
Weight: 4.4 lbs / 2.0 kg
Max. Terminals Size: 8 AWG 10mm2
Accessories:
Temperature Sensor: 9.8ft cable length
Certifications
CE: Yes
FCC Class B Part 15 Compliant: Yes
Warranty: Material and Workmanship Warranty: 3 Year

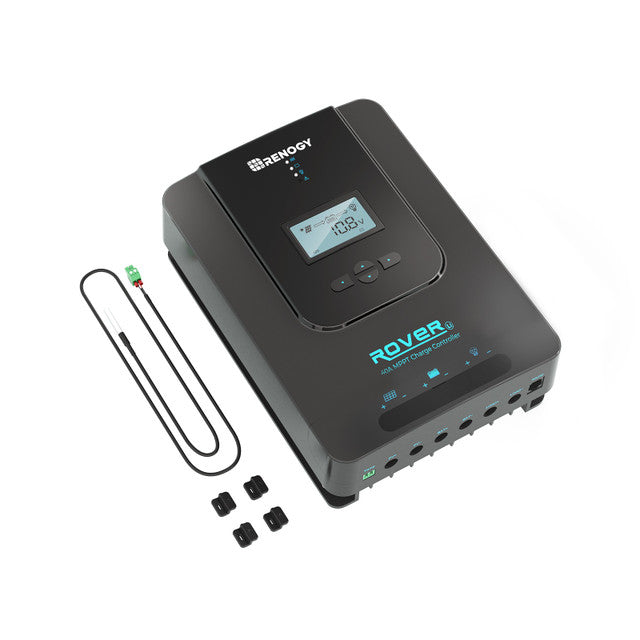

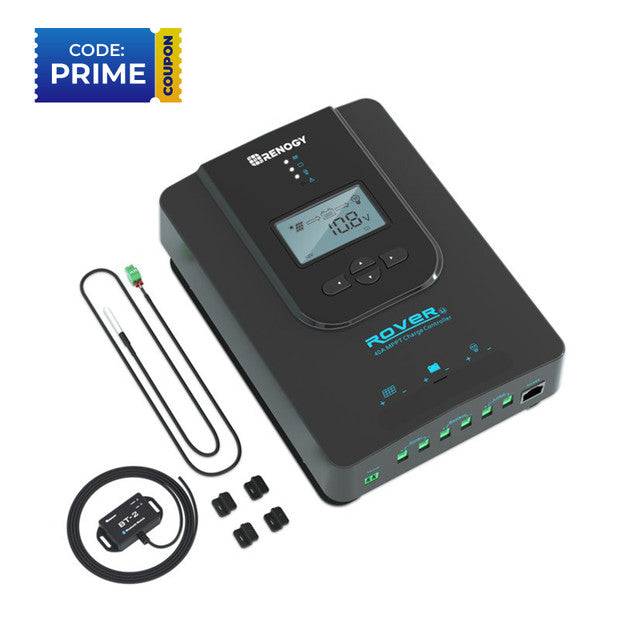

WHAT'S IN THE BOX:
1 x Renogy Rover 40A MPPT Solar Charge Controller
1 x Remote Temperature Sensor
4 x Mounting Brackets
1 x User Manual

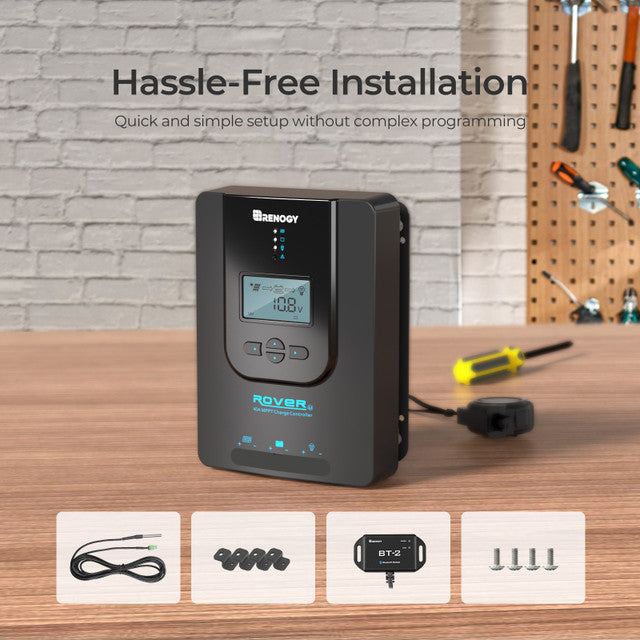

The Renogy Rover Li 40 Amp MPPT Solar Charge Controller is a must - have for anyone with a solar panel system. Whether you have a small residential setup or a larger commercial project, this charge controller can help you get the most out of your solar energy. It's easy to use and can be installed quickly. The controller has a 40 Amp capacity and is made of robust die - cast aluminum. It measures 238 x 172 x 77 mm (9.38 x 6.78 x 3.05 in) and weighs 4.4 lbs (2.0 kg). It automatically detects 12V/24V systems (non - lithium batteries) and comes with a remote temperature sensor, mounting brackets, and a user manual. With features like MPPT technology, it ensures efficient charging and maximum energy savings. Get yours today and start enjoying free solar power!
