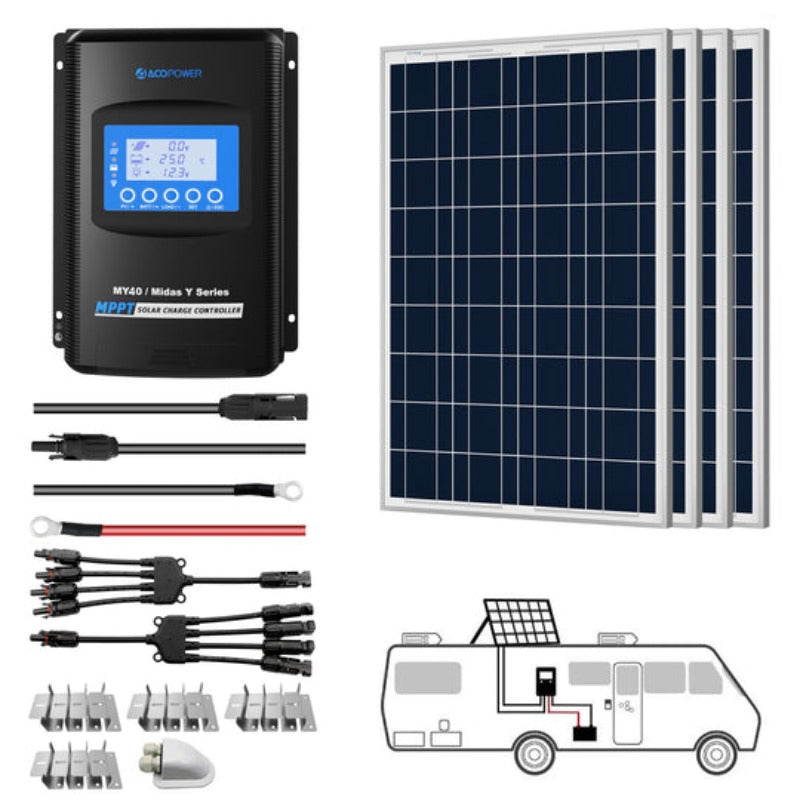

ACOPOWER 400W 12V Polycrystalline Solar Kit for RVs - Effortless Energy Solution
Embrace the freedom of sustainable energy on your adventures with this amazing kit! It's super easy to install and comes with 4 100W solar panels, a 40A charge controller, and all the essential wiring. Ideal for powering your RV, boat, camper, or any outdoor appliances, it's the perfect solution for remote structures too. Plus, it includes mounting accessories for even more convenience.

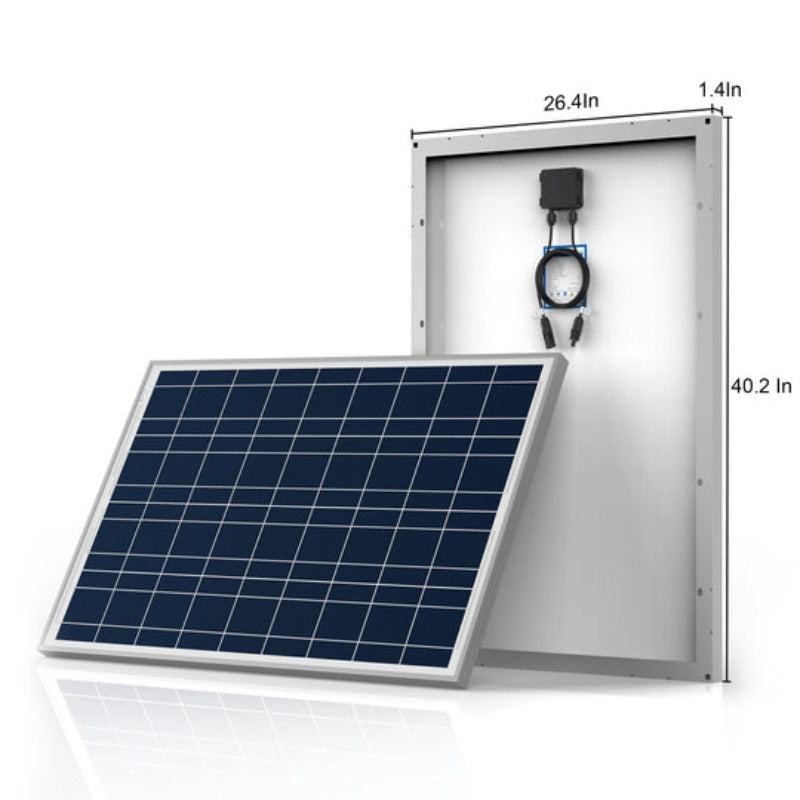

ACOPower 100W 12V Polycrystalline Solar Panel
Tailored for home, RV, van life, and various applications, this solar panel is a reliable source for charging 12-volt batteries and portable power stations. Engineered for easy installation on structures or vehicles, the panel features a durable construction with tempered glass, anti-reflective coating, two layers of EVA film, a TPT backsheet, and an anodized aluminum frame that can withstand snow loads of 5400 Pa and wind pressure of 2400 Pa. The rear junction box is water-resistant with an IP65 rating. Equipped with a 3.2-foot, 16 AWG cable with male and female quick connectors, it's ready to harness renewable energy efficiently.

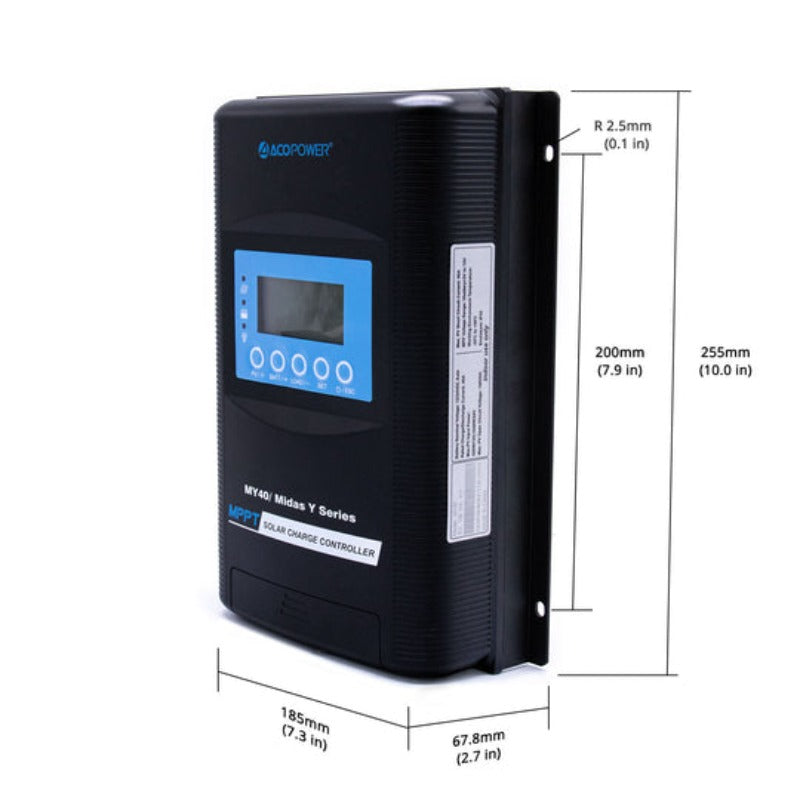

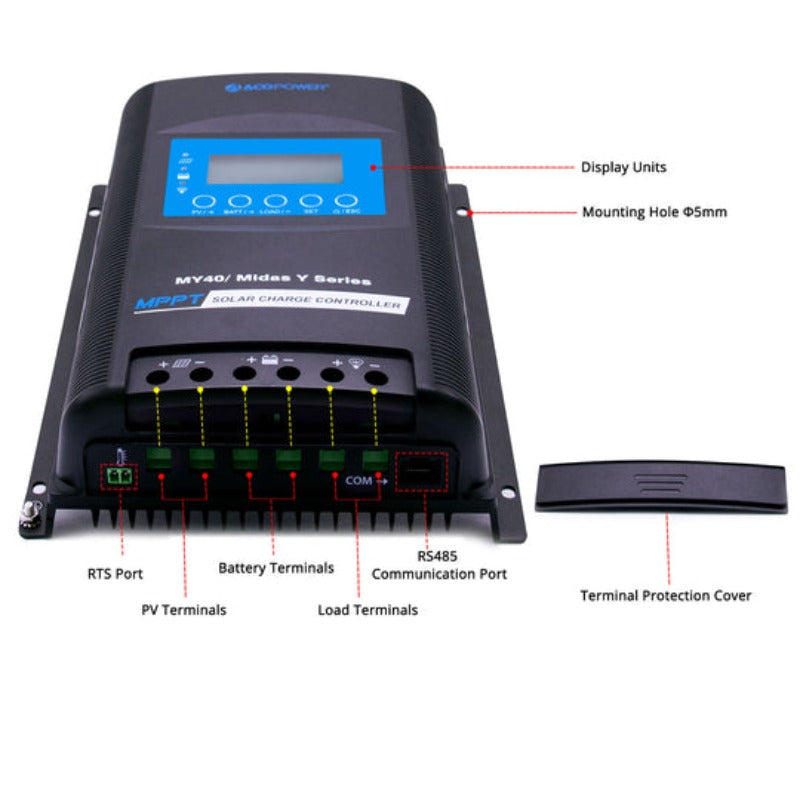

ACOPower 40A MPPT Solar Charge Controller
Maximize your solar power with the ACOPower 40A MPPT Solar Charge Controller. It allows you to safely and efficiently recharge 12, 24, 36, or 48V batteries, meeting diverse power needs. With a negative-ground configuration, it has a tracking efficiency of up to 99.5% and a peak conversion efficiency of 98%. Compatible with various battery types, it offers versatility in energy storage. The user-friendly, plug-and-play design simplifies the solar charging process. It automatically detects the solar panel voltage and uses bulk, boost, float, and equalization charging modes to optimize the battery charging cycle, ensuring a seamless solar energy utilization experience for your RV, cabin, or off-grid system.
Features:
- • Easy installation
- • High Efficiency
- • MPPT Technology
- • Green Solar System
- • Common Negative grounding design
- • Warranty
- • Multiple packages
Specifications:
Acopower 100 Watts Poly Solar Panel
- Maximum Power at STC (Pmax): 100W
- Open-Circuit Voltage (Voc): 22V
- Maximum Operating Voltage (Vmp): 17.48V
- Short-Circuit Current (Isc): 6.21A
- Maximum Operating Current (Imp): 5.72A
- Operating Temperature: -40oC to 85oC
- Dimension: 1020x670x35mm / 40.2x26.4x1.4 in
- Weight: 9.5kg / 20.6 lbs
Acopower MIDAS 40 A MPPT Solar Charge Controller
- Nominal System Voltage: 12/24VDC
- Auto Grounding: Common negative
- Rated Charge Current: 40A
- Battery Input Voltage Range: 8V - 2V
- Max. PV Open Circuit Voltage: 100V (1) 92V (2)
- Rated charge Power: 520W/12V 1040W/24V
- MPPT Voltage Range: (Battery Voltage+2V) ~72V
- RS485 Interface: 5VDC/200mA(RJ45)
- Working temperature: -25°C to +50°C
- Storage temperature: -20°C to +70°C
- Terminals: Up to 6 AWG
- Enclosure: IP33
- Dimension: 10x7.28x2.67 in / 255x185x67.8mm
- Weight: 3.75lbs / 1.7kg
What's in the Box:
- 4 x 100W Polycrystalline Solar Panel
- 1 x 40A MPPT Charge Controller

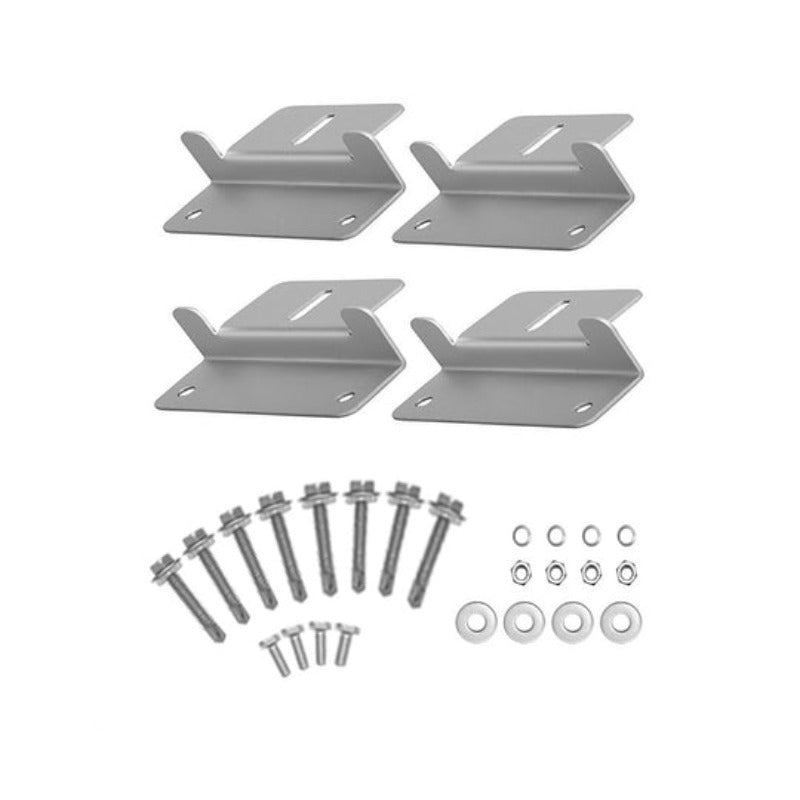

- 3 x Sets Mounting Z Bracket

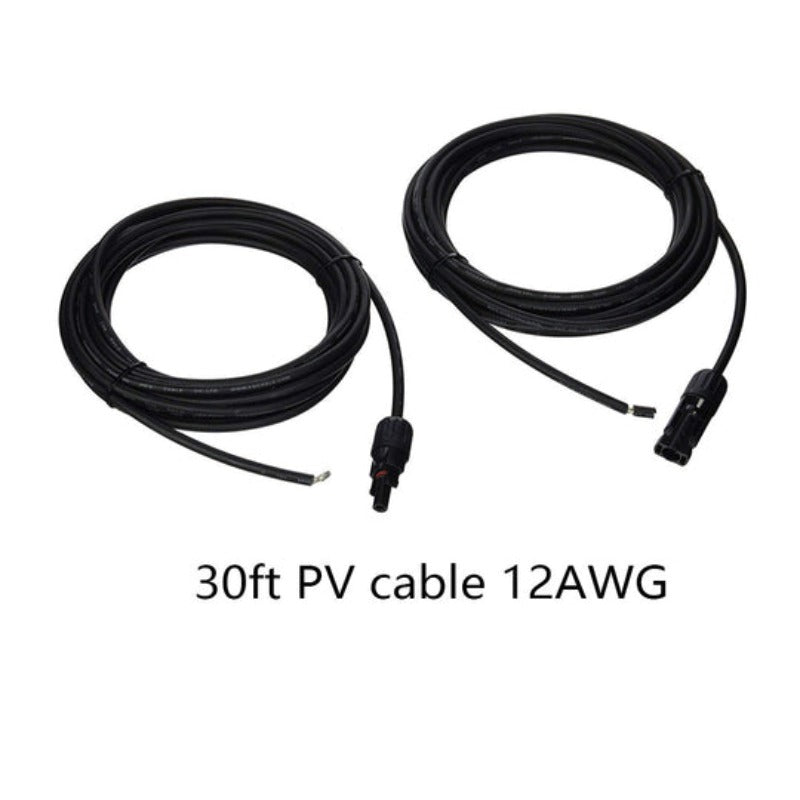

- 1 x 30ft 12AWG PV Cable

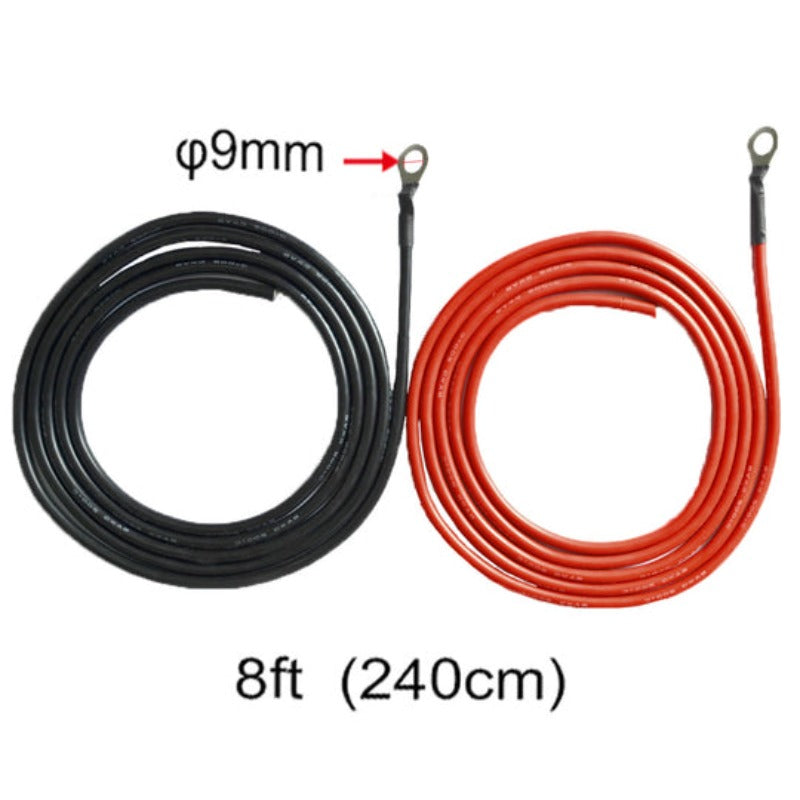

- 1 x 8FT 8AWG Tray Cable
- 1 x Cable Entry Housing

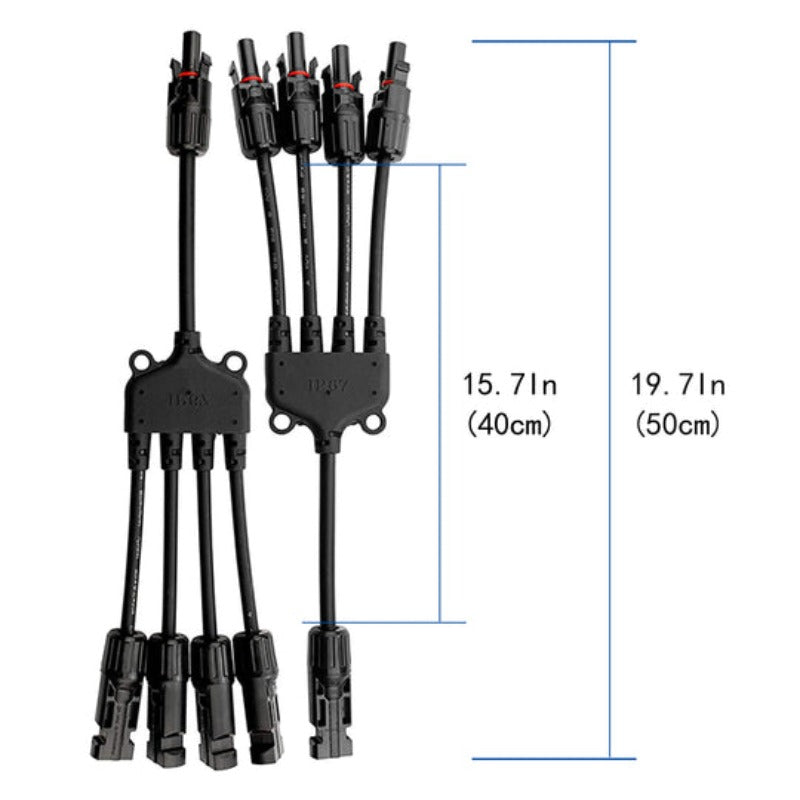

- 1 x Pair 1Y4 Branch Connector
This ACOPower solar kit is perfect for RV owners, boaters, campers, and those who love outdoor adventures. It comes with 4 100W solar panels, a 40A charge controller, and essential wiring for easy installation. Ideal for powering your outdoor appliances and providing a reliable energy source for remote structures. The 100W solar panel is 1020x670x35mm (40.2x26.4x1.4 in) in dimension and weighs 9.5kg (20.6 lbs). The 40A MPPT charge controller has a nominal system voltage of 12/24VDC, dimensions of 10x7.28x2.67 in (255x185x67.8mm), and weighs 3.75lbs (1.7kg). What's in the box: 4 x 100W Polycrystalline Solar Panel, 1 x 40A MPPT Charge Controller, 3 x Sets Mounting Z Bracket, 1 x 30ft 12AWG PV Cable, 1 x 8FT 8AWG Tray Cable, 1 x Cable Entry Housing, 1 x Pair 1Y4 Branch Connector
