Renogy Rover Li 30 Amp MPPT Solar Charge Controller Bundle
Unleash full power in any environment with the ultimate power combo for your solar system setup - the Renogy Rover Li 30 Amp MPPT Solar Charge Controller with Bluetooth Module and the Renogy One Core! This bundle is perfect for off-grid adventurers and anyone in need of reliable emergency power.
• Maximum Power Point Tracking (MPPT) technology with up to 99% tracking efficiency and 98% peak conversion efficiency, maximizing solar panel efficiency even in cloudy conditions.
• 4-stage charging for lead acid batteries and 2-stage charging for lithium batteries, along with lithium reactivation, ensuring optimal battery charging.
• Bluetooth connectivity allows for easy monitoring and control of your solar system right from your smartphone.
Upgrade your solar system with this high-performance bundle and enjoy seamless integration and smart energy management. With features like a built-in LCD screen, multiple LED indicators, and full system protection, you can trust that your solar setup is in good hands.
Highlights

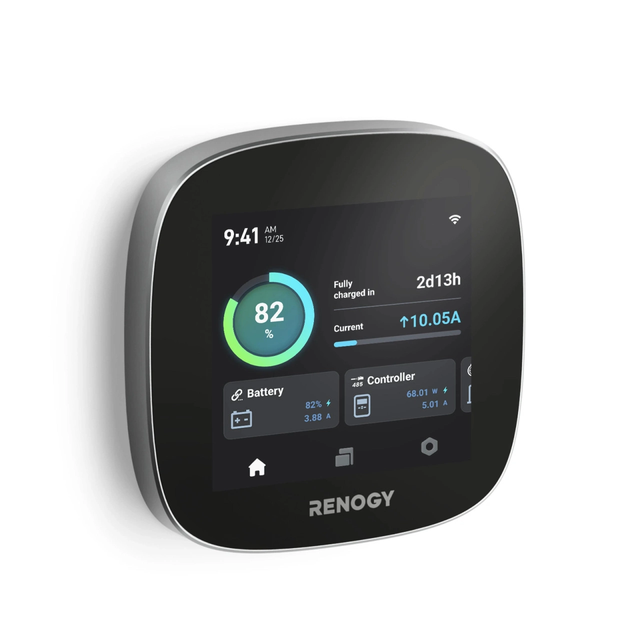

Monitoring with Renogy ONE Core
30A MMPT solar charge controller

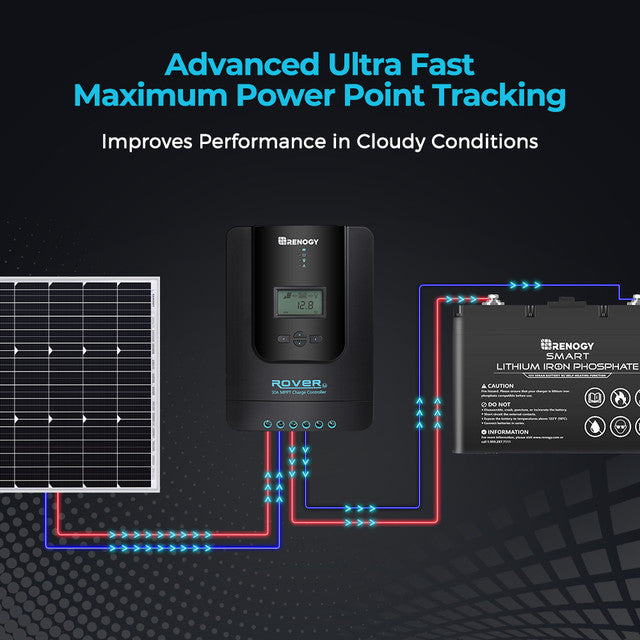

Innovative MPPT Design
Excellent heat dissipation and Renogy MPPT with a high tracking efficiency of up to 99% and peak conversion efficiency of 98%
12V/24V DC system voltages (for non-lithium battery types)
LCD screen
Multiple LED indicators display the solar charging and battery operation information, customizable parameters, and error codes
Full system protection

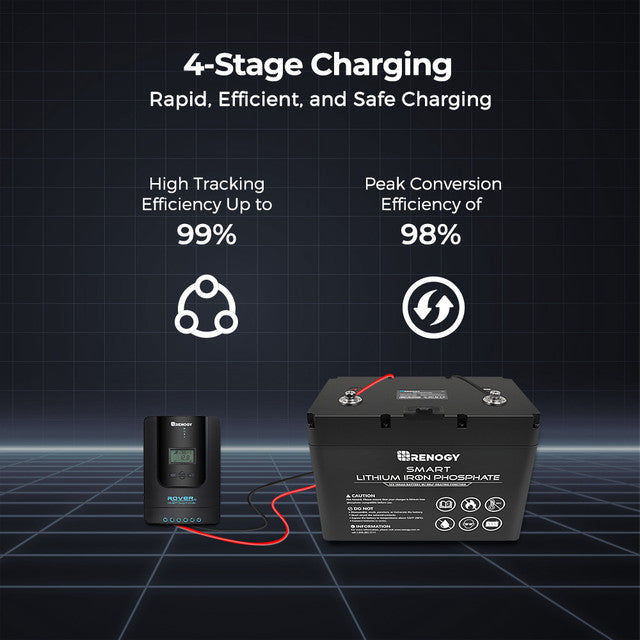

4-stage charging - Bulk, Absorption, Float, and Equalization of Lead Acid Batteries and 2-stage charging (Bulk and Absorption) for lithium batteries as well as Lithium reactivation
Diverse load control

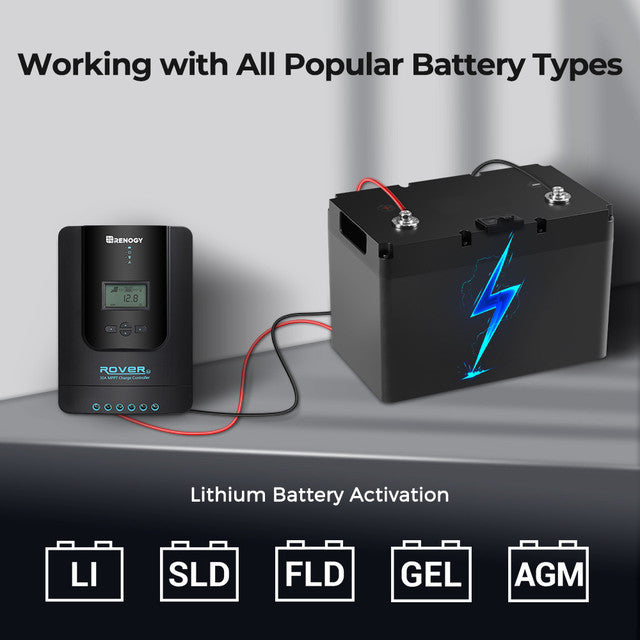

Compatible with multiple battery types - AGM, Sealed, GEL, Flooded, and lithium batteries
SPECIFICATIONS:
Electrical Parameters
Nominal System Voltage: 12/24V (Auto-Detect for Non-Lithium types)
Rated Charge Current: 30A
Max. PV Input Voltage: 95 VDC
Max. PV Input Power: 12V/400W, 24V/800W
Power Consumption: ≤100mA/12V; ≤58mA/24V
Max Battery Voltage: 32V
Ground Type: Negative

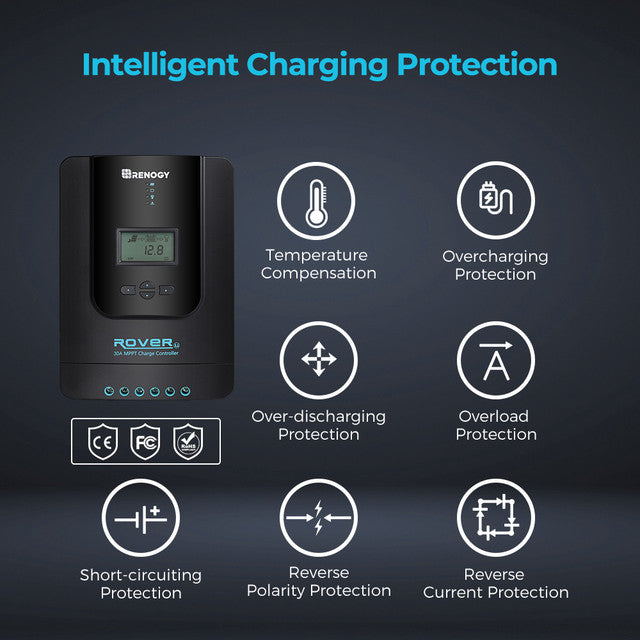

Electrical Protection: Overcharging, over-discharging, overload, and short circuit. Capable of charging over-discharged lithium batteries.
Environmental Data
Protection Level: IP32
Operating Temperature Range: -35°C to 45°C; -31°F to 113°F
Storage Temperature Range: -35°C to 75°C; -31°F to 167°F
Operating / Storage Humidity: ≤ 90%, No Condensation
Temperature Compensation: -3mV/°C/2V
Mechanical Specifications
Dimensions: 238 x 172 x 77 mm; 9.38 x 6.78 x 3.05 in
Weight: 4.4 lbs / 2.0 kg
Max. Terminals Size: 8 AWG 10mm2
Certifications
CE: Yes
FCC Class B Part 15 Compliant: Yes
Warranty
Material and Workmanship Warranty: 2-year
RENOGY BT-1 BLUETOOTH MODULE (RCM-BT1)
Compatibility
Compatible PWM Charge Controller: RNG-CTRL-WND10/RNG-CTRL-WND30-LI/RNG-CTRL-ADV30-LI
Compatible MPPT Charge Controller: RNG-CTRL-RVR20/RNG-CTRL-RVR30/ RNG-CTRL-RVR40/RNG-CTRL-RVR60S/ RNG-CTRL-RVR100
Compatible App: Renogy DC Home App available in both the App Store and Google Play
Mechanical Specifications
Communication Range: ≤82ft (25m)
Cable Length: 16.4 ft (5.00 m)
Dimensions: 9.38 x 6.78 x 3.05 in (238 x 172 x 77 mm)
Weight: 4.58oz (130 g)
Operation Temperature: -4°F to 185°F (-20°C~85°C)
Operation Specifications
Communication Protocol: RS232
Port Type: RJ12
Input Voltage: 5V
Protection Grade: IP54
Standby Power Consumption: 0.04W
Operating Power Consumption: 0.05W
Serial Baud Rate: Fixed Baud Rate 9600bps
Certifications
FCC Class B Part 15 Compliant: Yes
Warranty
Material and Workmanship Warranty: 2 Year
Charge Controllers: Rover

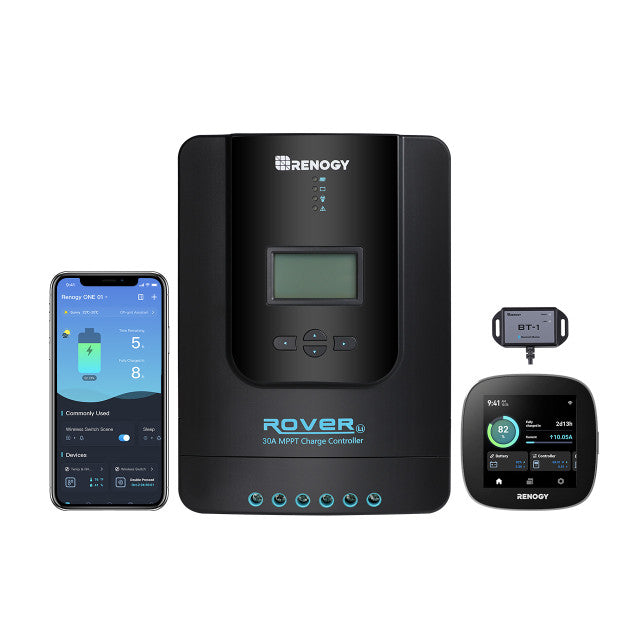

WHAT'S IN THE BOX:

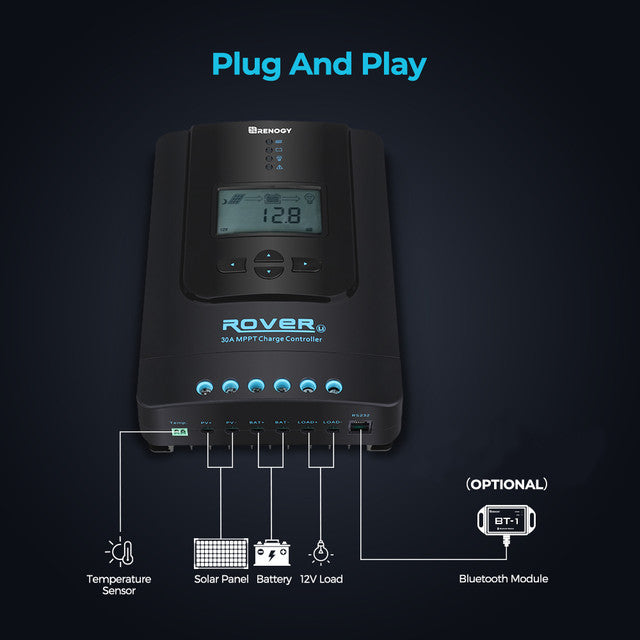

1 x Renogy Rover 30 Amp MPPT Solar Charge Controller
1 x Remote Temperature Sensor
4 x Mounting Brackets
1 x BT-1 Bluetooth Module
This Renogy Rover Li 30 Amp MPPT Solar Charge Controller Bundle is perfect for off-grid adventurers and those in need of emergency power. The bundle includes a solar charge controller with Bluetooth module and the Renogy One Core battery. The solar charge controller features MPPT technology for maximum efficiency, 4-stage charging, and Bluetooth connectivity for easy monitoring and control. The Renogy One Core battery offers long-lasting power storage. The bundle comes with a remote temperature sensor, mounting brackets, and a Bluetooth module. The solar charge controller has dimensions of 238 x 172 x 77 mm (9.38 x 6.78 x 3.05 in) and weighs 4.4 lbs (2.0 kg). The Bluetooth module has dimensions of 238 x 172 x 77 mm (9.38 x 6.78 x 3.05 in) and weighs 4.58oz (130 g).
