Renogy 550W High-Powered Rigid Solar Panel Pack (2 pcs)
Are you looking for a reliable and efficient way to harness solar energy? Look no further! Renogy's 550W rigid solar panels are here to revolutionize your energy conversion experience.

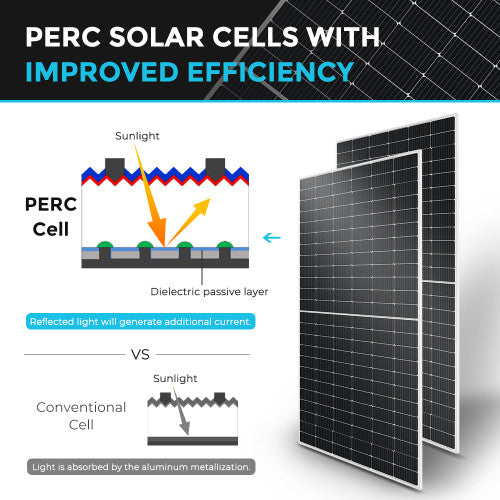

• High Efficiency Energy Conversion: These panels are designed to convert 22.8% more sunlight into energy, even in low light conditions. With high-efficiency PERC cells and space-optimized design, they're perfect for utility-scale systems, solar power plants, and residential and commercial applications.

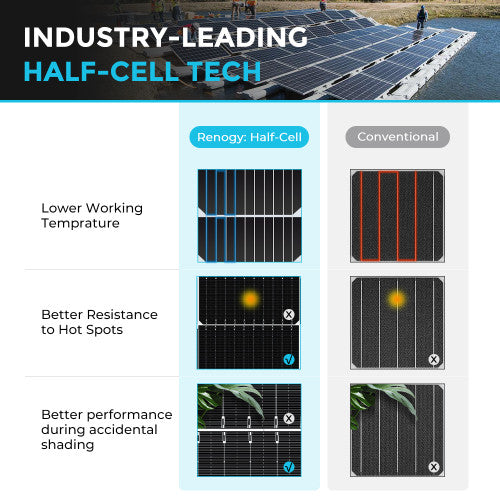

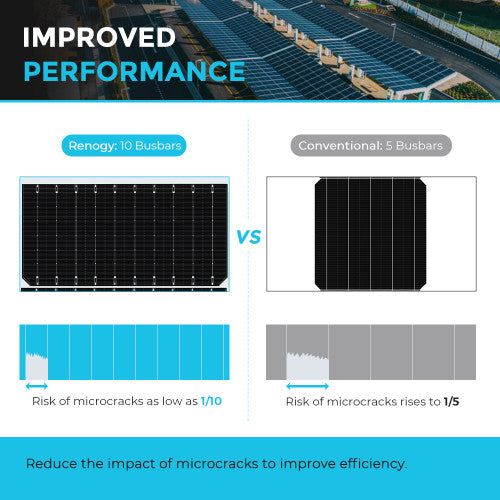

• Cost-Effective Solution: Cut down on your system equipment costs with Renogy solar panels. Combining high-efficiency mono PERC cells with half cell and 10 busbar tech, they tap sustainable, renewable energy from the sun, reducing your energy bills and carbon footprint.

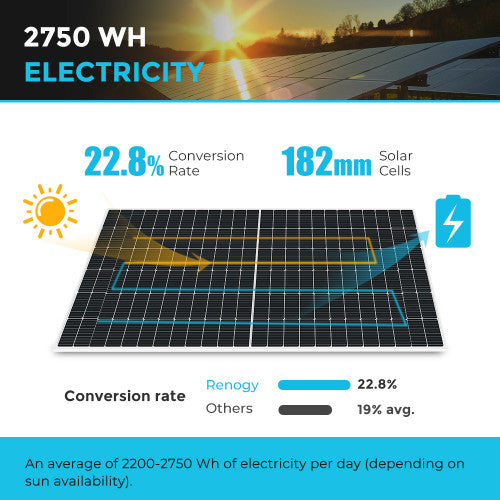

• Uncompromised Quality: This 2 pcs solar panel pack offers double the quality and efficiency. Enjoy 2200 - 2750Wh of power per day with no hot spots, as our panels have passed the strict EL test.
Highlights:
- Converts 22.8% more sunlight to energy
- Generates max power in least space

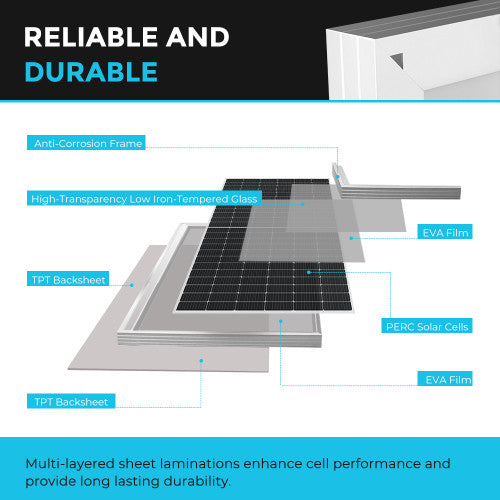

- Corrosion-resistant aluminum frame for extreme weather
- Back frame and pre drilled holes for easy installation
- Ideal for off-grid, on-grid and hybrid solar systems
- Endures high winds (2400pa) and snow loads (5400pa)
- IP68 rated waterproof junction box for long-lasting durability
Specifications:
Output Cables: 12 AWG (1ft per cable)
Cell Type: PERC Monocrystalline (7.2 x 3.6 in)
Number of Cells: 144 (6 x 24), 72 cells in series
Junction Box: IP65 / IP68 (1m, 1h) rating
MC4 Solar Connectors: IP65 / IP68 (1m, 1h) rating
Maximum Power at STC: 550W
Cell Efficiency: 22.8%
Optimum Operating Voltage (Vmp): 41.97V
Open-Circuit Voltage (Voc): 49.95V
Optimum Operating Current (Imp): 13.11A
Short-Circuit Current (Isc): 14.05A
Operating Temperature: -40°F to 185°F
Maximum Series Fuse Rating: 25A
Maximum System Voltage: 1500V DC (UL)
Rated Current (MC4 Solar Connectors): 35 A
Weight: 62.8 lbs (28.5 kg)

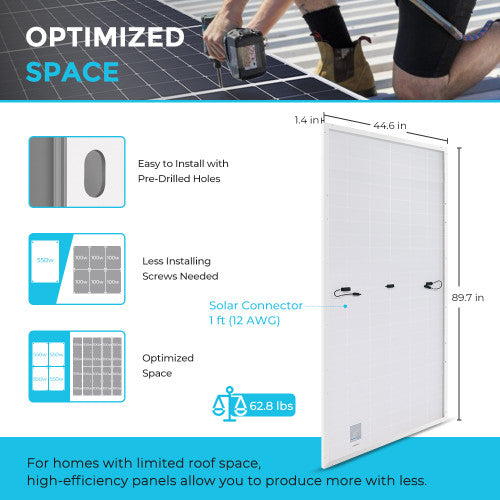

Dimensions: 89.7 x 44.6 x 1.4 in (2279 x 1134 x 35 mm)
Maximum AWG Size Range (MC4): 10 AWG
Certifications: CE, ISO, ETL
Material and workmanship warranty: 10 year material and workmanship warranty
Performance: 5 year 95% output warranty 10 year 90% output warranty 25 year 80% output warranty
What's in the Box:
2 x Renogy 550W Monocrystalline Rigid Solar Panel
1 x User Manual
These Renogy 550W rigid solar panels are perfect for those looking to switch to solar energy. Ideal for utility-scale systems, solar power plants, residential and commercial applications. Each panel weighs 62.8 lbs (28.5 kg) with dimensions of 89.7 x 44.6 x 1.4 in (2279 x 1134 x 35 mm). They offer high efficiency energy conversion, cost-effective solutions, and uncompromised quality. With features like a corrosion-resistant aluminum frame, easy installation, and durability in various weather conditions, they're a great choice for your solar energy needs.
