Renogy 5 - String Solar Power Combiner Box - Your Reliable Solar System Partner
Are you looking for a top - notch solar energy system accessory? Look no further! The Renogy combiner box is here to revolutionize your solar setup. It expertly combines inputs from 5 solar panels into a single output, ensuring seamless energy flow. With its built - in safety features, it can accommodate up to five 1P miniature circuit breakers and one 2P surge protection device, safeguarding your entire solar system.

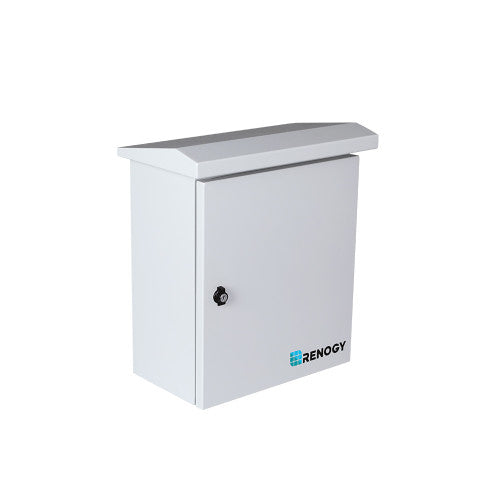

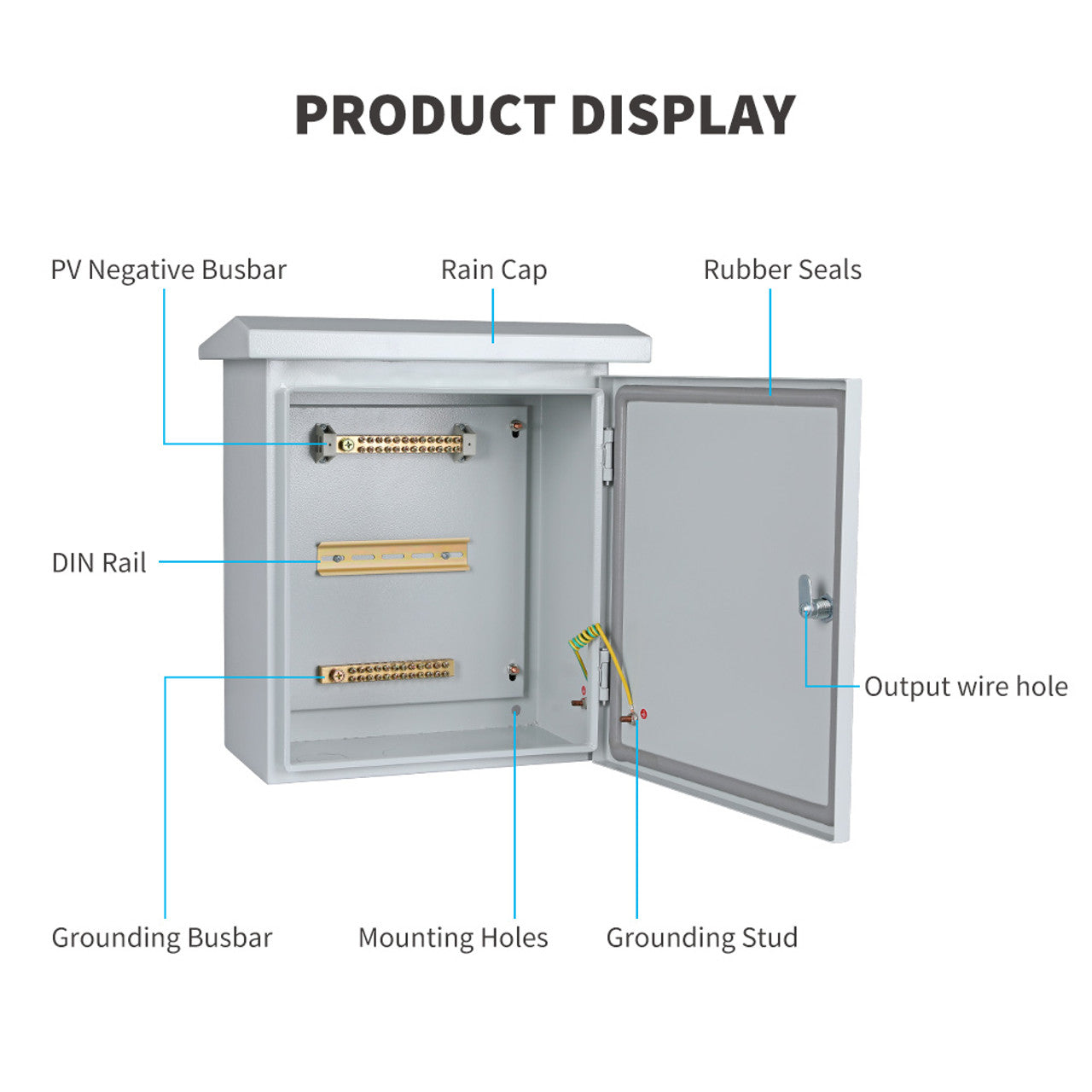

The robust grey steel enclosure, equipped with a rain cap and rubber seals, comes with a convenient built - in DIN rail for effortless installation of protection devices. Engineered to withstand outdoor conditions, it has knockouts for waterproof strain reliefs or conduits.
Highlights:
- • Effortlessly combines 5 inputs into 1 output
- • Offers overload, short circuit and lighting protection

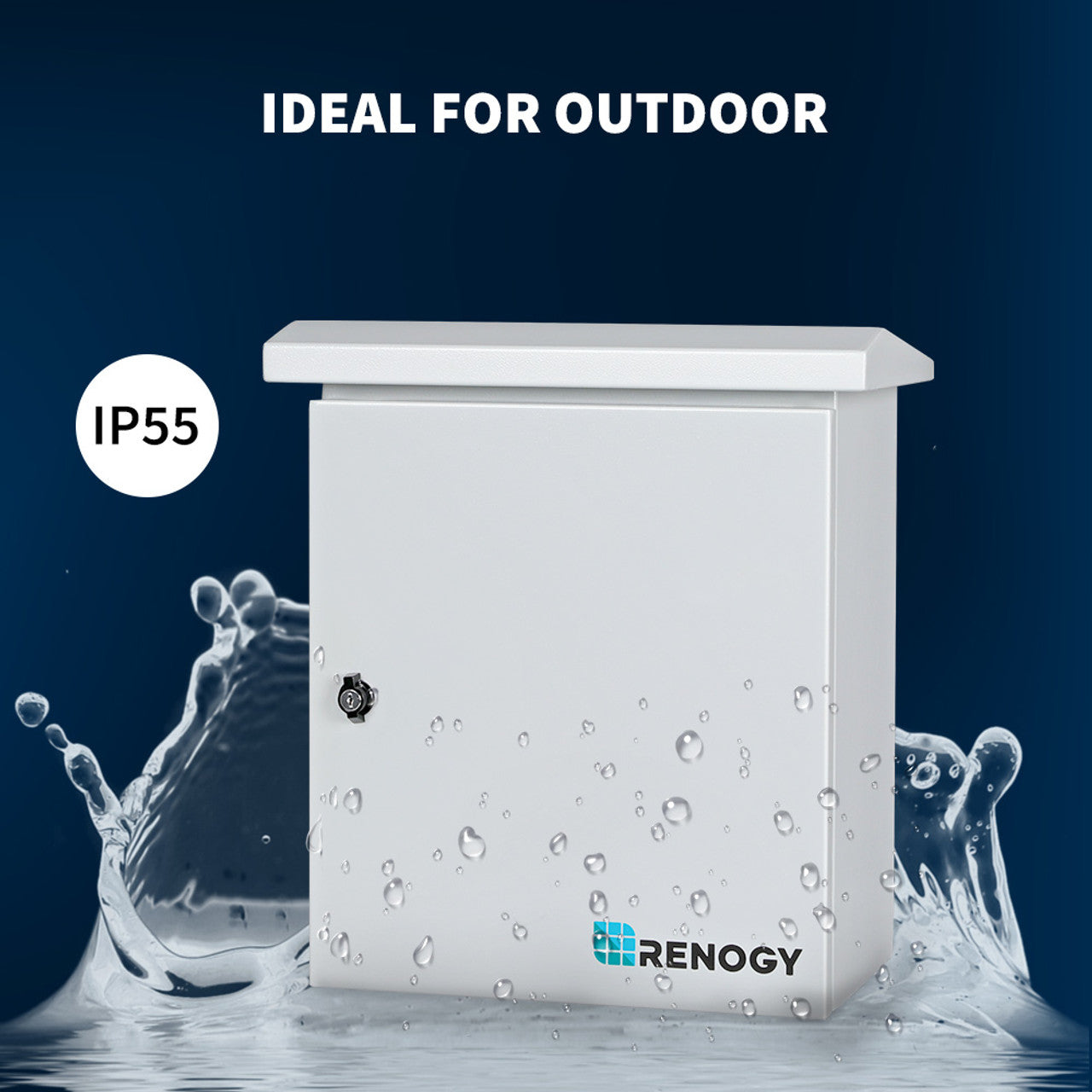

- • IP55 waterproof rating for worry - free outdoor installation
Specifications:
Maximum PV Input/Output Voltage: 250VDC
Recommended Busbar Terminal Torque: 26 inch¡¤lbs (2.9 N¡¤m) (Compression Terminal), 106 inch¡¤lbs (12 N¡¤m) (Lug Terminal)
Maximum Number of Input Circuits:5
Busbar Conductor Size: 14 AWG~6 AWG (Compression Terminal), 12 AWG~4 AWG (Lug Terminal)
Maximum Overcurrent Protection Device Rated Current: 63A

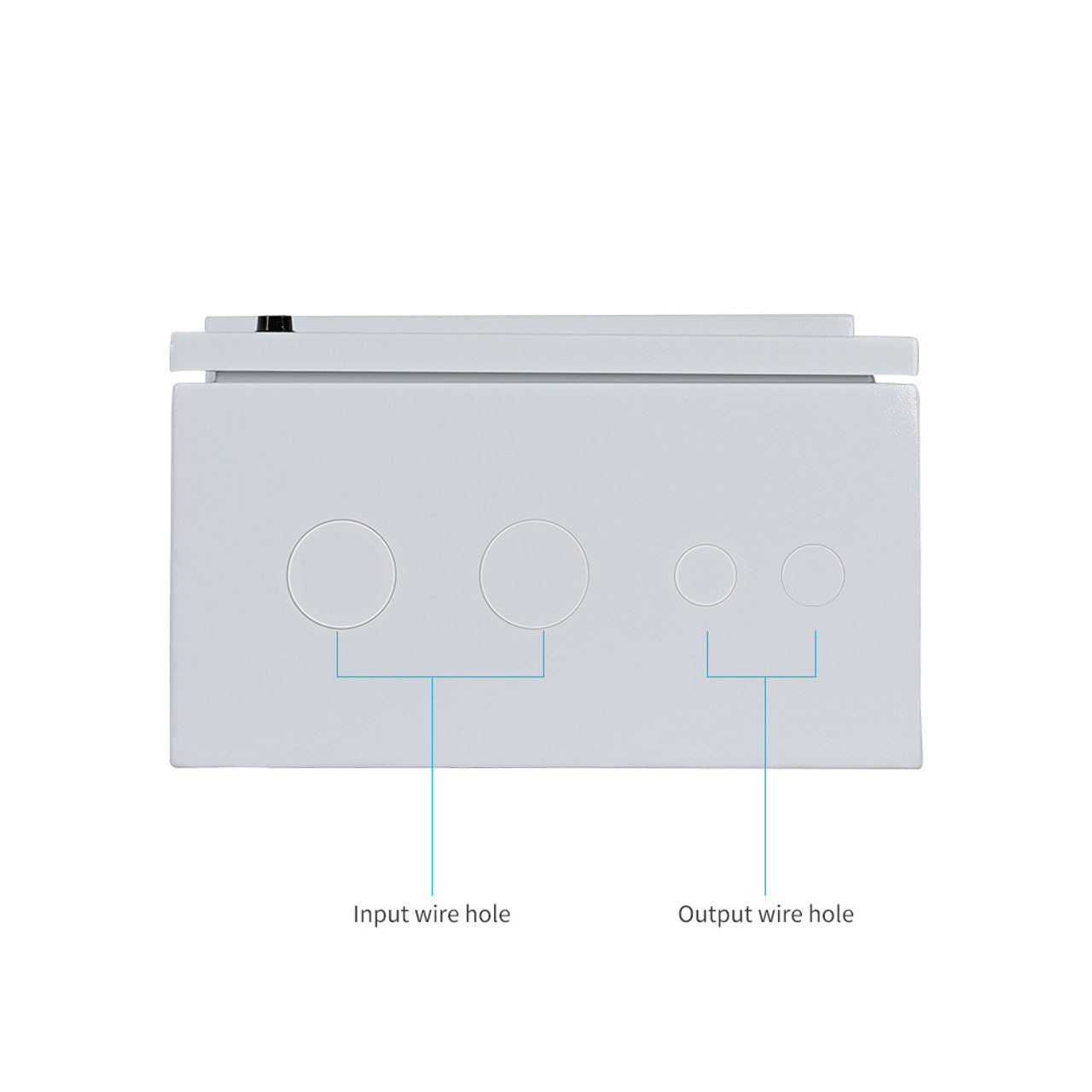

Knockout Diameter: 1.99 inch (2), 1.12 inch (2)
Rated Short Circuit Current: 6KA
DIN Rail Width: 1.38 inch (35 mm)
Maximum Output Current: 100A
Enclosure Material: Cold - Formed Steel
Number of Busbars: 2 (PV Negative Busbar, Grounding Busbar)
Enclosure Protection Rating: IP55
Busbar Rated Current: 200A
Enclosure Security: Keyed Cam Lock
Busbar Material: Copper
Mounting Method: Vertical Wall Mount
Busbar Terminal: Compression Terminals (24), Lug Terminal (1)
Installation Environment: Outdoor/Indoor
Busbar Screw: M5 (Compression Terminal), M8 (Lug Terminal)
5 Pin Busbar: Rated Current 100A
Dimensions: 17.1 x 15.0 x 8.8 in
Weight: 20.9 lb
Material and workmanship warranty: 1 Year

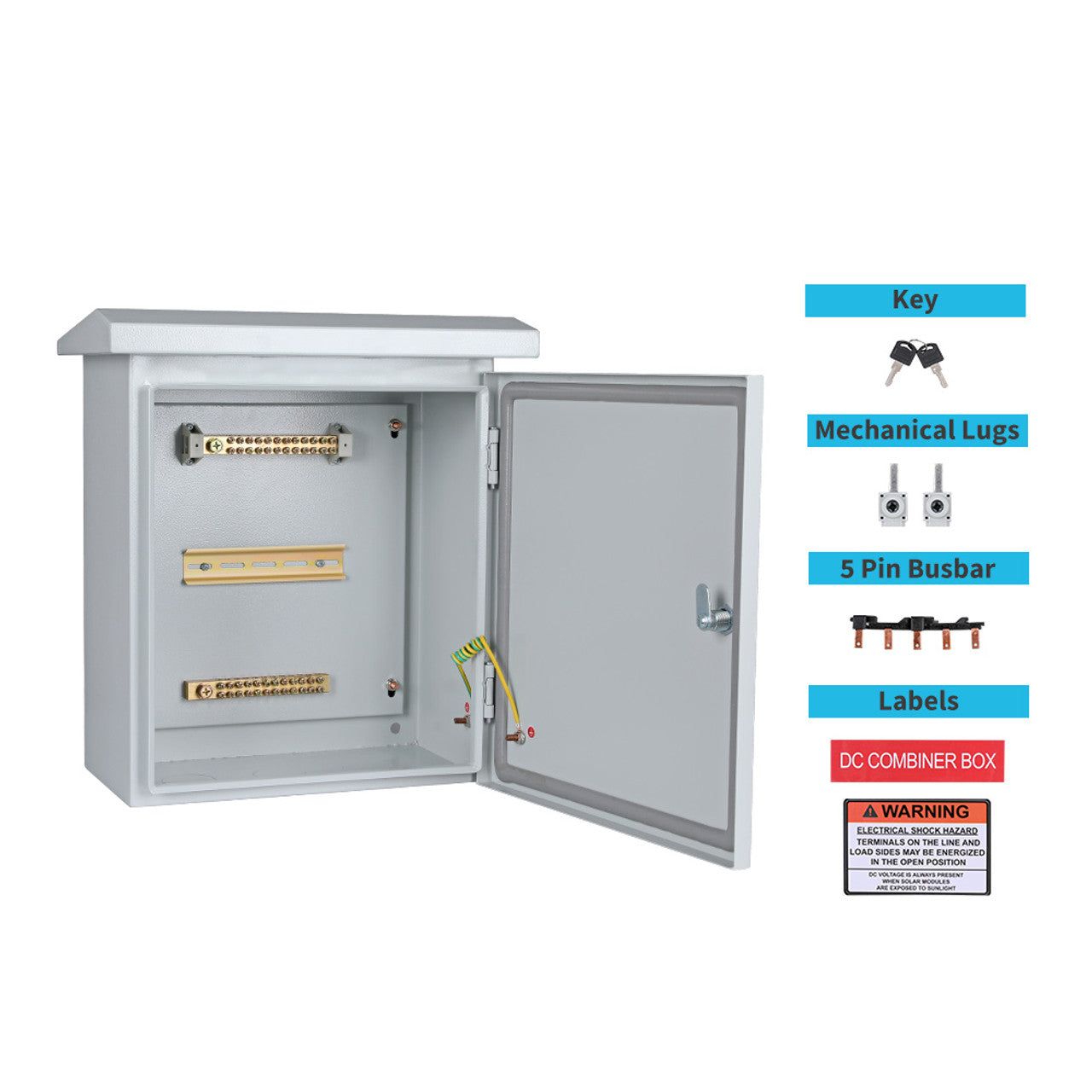

What's in the Box:
1 x 5 - String Solar Combiner Box
1 x Key
2 x Mechanical Lugs
5 x Pin Busbar
5 x Labels
1 x Instruction Manual
This Renogy 5 - String Solar Combiner Box is perfect for both homeowners and small - scale solar power installers looking to enhance their solar energy systems. Whether you're setting up a new solar array or upgrading an existing one, this combiner box is a must - have. It combines the power of 5 solar panels into one output, making your solar energy system more efficient. With dimensions of 17.1 x 15.0 x 8.8 inches and weighing 20.9 pounds, it's easy to install and fits well in various setups, both indoor and outdoor.
