Renogy 400W 12V Solar Power Kit for RV - Empower Your RV Adventures!
Are you an RV enthusiast longing for unrestricted outdoor adventures? The Renogy 400 Watt 12 Volt Solar RV Kit is here to revolutionize your RV experience. It provides sustainable energy, allowing you to enjoy your entertainment zone without relying on a power hookup. Harness the abundant sunlight and embrace the freedom of the outdoors!
• Comprehensive Kit: Comes with 4 solar panels, charge controller, adaptor kit, tray cable, branch connectors, Bluetooth module, and cable entry housing. The solar panels blend seamlessly with your RV's aesthetics, and the entire setup is negative grounded for battery compatibility.
• Intuitive LCD Screen: Displays real-time data and enables easy control of parameter settings. It also features self-diagnostics and electronic protection to safeguard the panels from faulty installation or system errors.
• Bluetooth Connectivity: Our newly added Bluetooth module allows you to view and adjust parameters in real-time via the DC home smartphone app. Stay in control wherever you are!
Highlights:
- High-efficiency Monocrystalline Silicon 21% cell conversion for maximum power output.
- Bypass diodes ensure optimal performance even in low-light conditions.
- Guaranteed no hot-spot heating for safe and reliable operation.
- IP65 rating protects against low-pressure water jets, making it durable in various weather conditions.
- Durable corrosion-resistant aluminum frame for long-lasting use.
- 4-stage battery charging process for rapid and efficient charging.
- Remote monitor and control via Bluetooth for added convenience.
Specifications:
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Maximum Power: 100W
Maximum System Voltage: 600V DC (UL)
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short-Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Dimensions: 41.8 x 20.9 x1.4 in
Weight: 14.1lbs

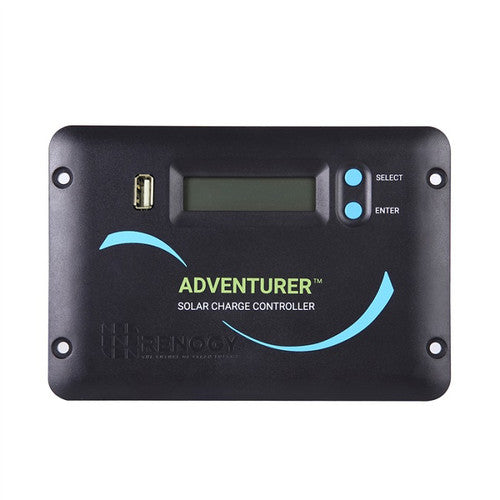

RENOGY ADVENTURER - 30A PWM NEGATIVE-GROUND CHARGE CONTROLLER WITH LCD DISPLAY
Nominal Voltage: 12V/24V Auto Recognition
Rated Charging Current: 30A
Battery Type(s): Sealed (AGM), Gel, Flooded, and Lithium
Max. PV Input Power: 400W at 12VDC
Max. PV Input Voltage: 50 VDC
Operating Temperature: -13F to 131F
Overall Dimension: 6.56 x 4.50 x 1.90 in
Weight: 0.6lb
RENOGY 16FT 10AWG TRAY CABLES (A PAIR)
Length: 16ft
AWG: 10
Rating Voltage: 600V
Temperature: -40°F to +185°F
RENOGY 30FT 10AWG SOLAR ADAPTOR KIT (A PAIR)
Length: 30ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F

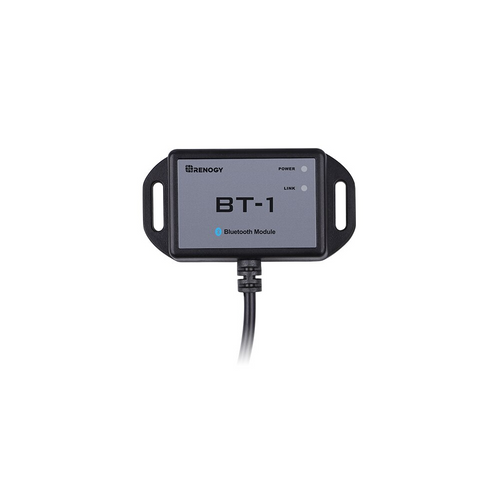

RENOGY BT-1 BLUETOOTH MODULE
Standby Power Consumption: 0.04W
Communication Range: ≤15m
Dimensions: 2.6 X 2.01 X 0.61 In
Max. PV Input Power: 400W (12V)
RENOGY SOLAR Y BRANCH CONNECTORS
Withstanding Voltage: 1000V DC(TUV), 600V(UL)
Protection Degree: IP67, mated
Wiring Size Range: 10, 12, 14 AWG
Temperature: -40°F to +194°F
RENOGY CABLE ENTRY HOUSING
Material: UV-resistant ABS Plastic
Weight (each component): 7.9 oz.
Recommended Adhesive: Sikaflex 252 or alike
Dimensions (L x W x H): 4.7 x 3.9 x 2.0 in
Cable Gland Diameter Range: 6mm – 12mm

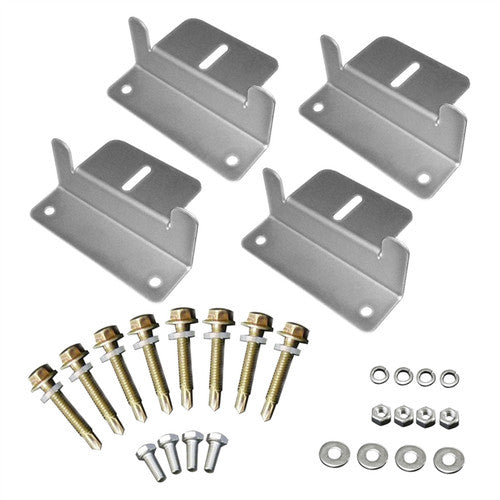

MOUNTING Z BRACKETS (SET)
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets: Four Nuts

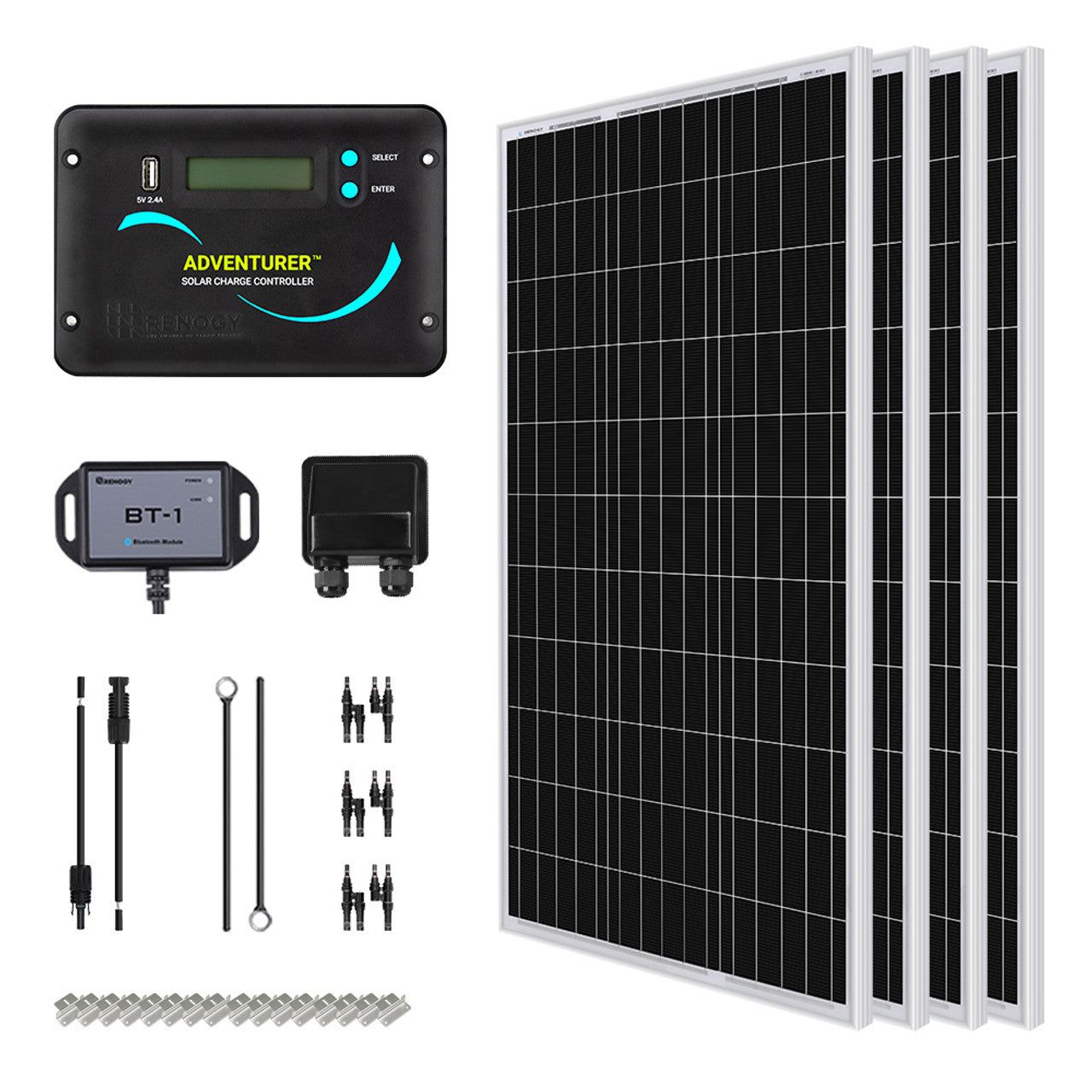

What's in the Box:
4 x 100W Mono Solar Panel
1 x Renogy Adventurer 30A PWM Charge Controller
1 x Renogy Cable Entry Housing
1 x Renogy 30ft. 10AWG Solar Adaptor Kit
1 x Renogy 16ft. 10AWG Tray Cables
3 x Renogy Solar Y Branch Connectors
4 x Mounting Z Brackets
1 x Renogy BT-1 Bluetooth Module
1 x User Manual
This Renogy 400W 12V Solar RV Kit is perfect for RV enthusiasts. It provides sustainable energy so you can enjoy your RV entertainment without a power hookup. The kit includes 4 solar panels, a charge controller, and more. The panels are 41.8 x 20.9 x1.4 inches and weigh 14.1 lbs each. The charge controller has dimensions of 6.56 x 4.50 x 1.90 inches and weighs 0.6 lb. Ideal for those seeking freedom and sustainability on the road.
