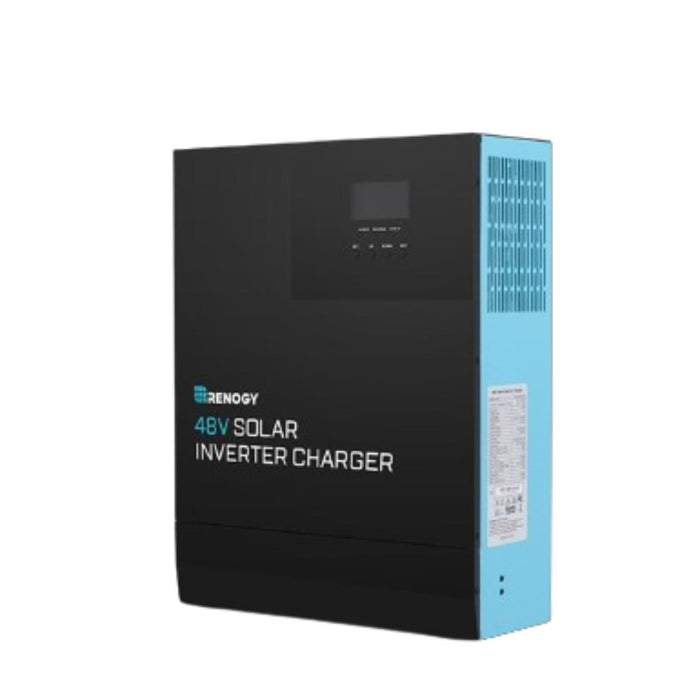

Renogy 3500W All-in-One Solar Power Solution
Take control of your energy with Renogy's 3500W Solar Power Solution! This all-in-one 48V solar inverter charger ensures uninterrupted power supply for all your needs.
VERSATILE OPERATION
• Integrates solar charging, AC/generator battery charging, and battery inverting

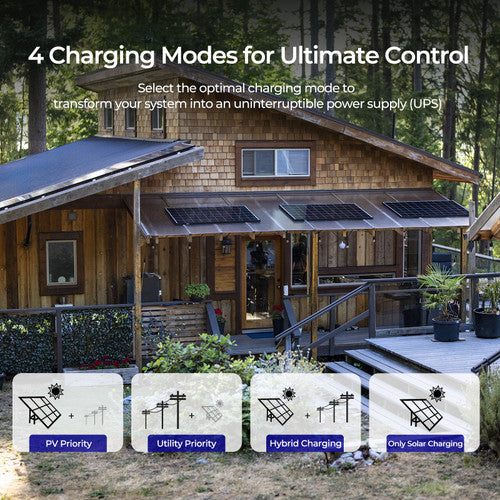

• Four user-configurable AC/Solar charging modes: PV priority, Utility Priority, Hybrid Charging, and Only Solar Charging
• 3 load output modes
• Rapid 10ms switchover to off-grid mode for seamless power
HIGH POWER OUTPUT
• Delivers 7000W surge power for heavy load appliances
• Provides 3500W of pure green energy for RV and outdoor adventures
EFFICIENT SOLAR CHARGING
• 80A/145V MPPT charge controller for optimal solar power capture and energy conversion
BUILT-IN SAFEGUARDS
• Every conceivable electronic safeguard to protect your energy system
LOW IDLE CONSUMPTION
• 45W low idle consumption automatically switches to power saving mode (less than 25W)
Specifications:
Output Waveform: Pure Sine Wave
Continuous Output Power: 3500W
Peak Power Rating: 7000W
Output Voltage: 120VAC ± 5%
Output Frequency: 50 Hz ± 0.3% / 60 Hz ± 0.3%
Input Voltage / Rated Battery Voltage: 48VDC (minimum start-up voltage 44V)
Nominal Efficiency: > 90%
Bypass Breaker Current Load: 40A
Idle Consumption: 48W
Power Saver Mode Idle Consumption: < 25W
Charge Controller Type: MPPT
Maximum Input Power: 4400W
Maximum Input Current: 50A
PV Charging Current Range: 0-80A
Recommended Max. PV Open Circuit Voltage: 145VDC
PV Operating Voltage: 60-145VDC
MPPT Voltage Range: 60-115VDC
Short-circuit Protection: Internal Fuse
Wiring Protection: Reverse Polarity
Recommended Wiring: 8 AWG
Rated Input Voltage/Input Voltage Range: 120Vac/90 ~ 140VAC ± 2% Adjustable
Frequency: 50 Hz / 60 Hz (auto detect)
Efficiency: > 95%
Conversion Time: 10ms
Battery Type: Lead Acid and Lithium Battery
Maximum Charging Current: 40A
Charging Voltage Range: 40-60VDC
Short-circuit Protection: Breakers and fuses
Overcharge Protection: Yes (Automatically alerts and turns off charging after 1 min)
Reverse Flow Protection: Yes
Dimensions: 16.8 x 12.7 x 4.9 in / 426 x 322 x 124 mm
Weight: 23.8 lbs / 10.8kg
Communication Port: RS485/CAN Communication Port (BT-2 Bluetooth Module)
Cooling Fan: Yes
Operating Temperature Range: 5°F ~ 131°F / -15°C ~ 55°C
Storage Temperature: -13°F ~ 140°F / -25°C ~ 60°C
Humidity: 5% to 95% (three-layer paint protection)
Noise: ≤60dB
IP Grade: IP 20
Safety Class: I
What's in the Box:
1 x 48V 3500W Solar Reverse Control Integrated Machine
1 x 16.4 ft. Inverter Remote Control
1 x User Manual
This Renogy 3500W All-in-One Solar Power Solution is perfect for those looking to achieve energy independence. Whether you're on an RV adventure or need reliable power at home, this product has you covered. It features a 48V solar inverter charger with a 10ms switchover for uninterrupted power. With versatile operation, high power output, and efficient solar charging, it's a great choice. The dimensions are 16.8 x 12.7 x 4.9 in (426 x 322 x 124 mm) and it weighs 23.8 lbs (10.8kg). It comes with a 16.4 ft. Inverter Remote Control and a User Manual.
