Renogy 100W Flexible Dual Battery Charging Kit - Your Off-Grid Power Solution
Discover the ultimate off-grid power solution with the Renogy 100W Flexible Dual Battery Charging Kit! This kit is designed for RV enthusiasts, boat owners, and overland adventurers who want reliable power on the go.
Key Features:
Flexible 100W Monocrystalline Solar Panel: Lightweight and bendable, it can be installed on curved surfaces for easy power access.
Dual Battery Charge Controller: Intelligently manages power distribution between two batteries, ensuring reliable power for all your systems.
Advanced Battery Protection: Built-in protections against overcharging, short circuits, and reverse polarity keep your batteries safe.
The Renogy 100W Flexible Dual Battery Charging Kit is your ticket to worry-free off-grid power. Don't miss out!
Technical Specifications:
Nominal Voltage: 12V
Rated Charge Current (Single Input): 30A (either Solar or Alternator)
Rated Charge Current (Dual Input): 15A (Solar) + 15A (Alternator) = 30A Max
Max PV Input Voltage: 25 VDC
Max PV Power: 400W (for 12V systems)
Temperature Compensation: -3mV/¡ãC/2V (excludes Lithium batteries)
Operating Temperature Range: -35¡ãC to 65¡ãC (-31¡ãF to 149¡ãF)
Self-Consumption: 60mA
Weight: 3.1 lbs (1.4 kg)
Dimensions: 9.2 x 5.8 x 3.0 in (234 x 146 x 77 mm)
Terminals: M8 x 1.25-10mm
Certifications: CE, ROHS, FCC Part 15 Class B
Grounding: Common Negative

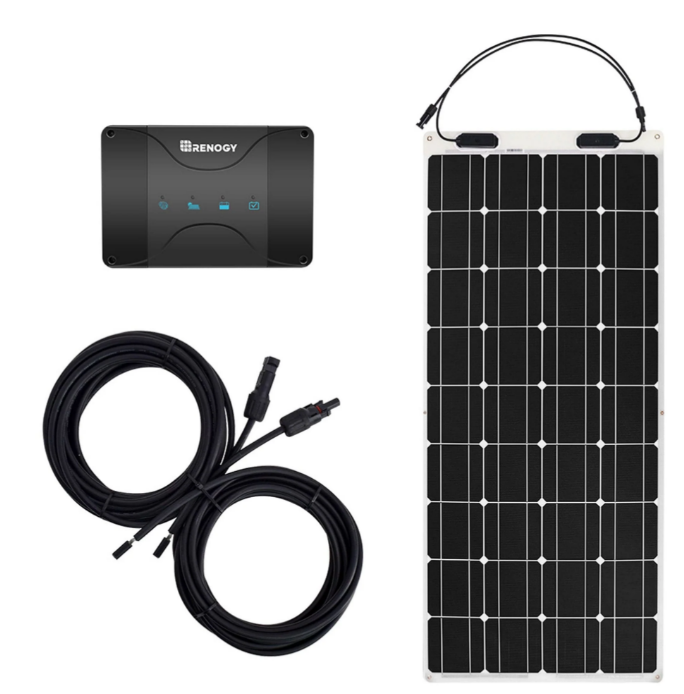

What's in the Box
1 x 100W 12V Flexible Monocrystalline Solar Panel
1 x DCC30S 12V 30A Dual Input DC-DC On-Board Battery Charger with MPPT
1 x 20ft 10AWG Solar Panel to Charge Controller Adapter Kit
The Renogy 100W Flexible Dual Battery Charging Kit is perfect for RVers, boat owners, and overland adventurers. It includes a 100W flexible monocrystalline solar panel, a 30A dual battery charge controller, and all necessary accessories. The panel is lightweight and bendable, allowing for easy installation on curved surfaces. The kit intelligently manages power distribution between two batteries, ensuring reliable power for all your systems. With built-in protections against overcharging, short circuits, and reverse polarity, your batteries are safe. The kit is easy to install and compatible with both 12V and 24V battery systems. Technical Specifications: Nominal Voltage: 12V, Weight: 3.1 lbs (1.4 kg), Dimensions: 9.2 x 5.8 x 3.0 in (234 x 146 x 77 mm)
