Acopower 110w Flex 200Ah/1.5kW (2x100Ah) Li200Ah F330w - Your Off-Grid Power Solution
This Acopower solar system is a must-have for those seeking off-the-grid power. It's high-quality, reliable, and offers efficient and sustainable energy.
• Flexible Design: The 110-watt flex solar panel is highly flexible and lightweight, perfect for various surfaces like RVs, boats, and cabins.
• Powerful Energy Storage: Two 100Ah lithium batteries provide long-lasting power with a high energy density and low self-discharge rate.
• User-Friendly Control: The 330-watt solar generator has multiple ports and an LCD for easy device connection and real-time monitoring.
With this system, say goodbye to power worries! Ideal for RV enthusiasts, boat owners, and cabin dwellers.
- Wide application
- 330W Flexible Solar RV kit
- Two 100Ah batteries
- Off-grid 12 volt Lithium battery 12V Flexible Solar Panel system
- 1500 Watt Pure Sine Wave Inverter provides plenty of AC power 120VAV
- Designed for RVs, cabins, homes, boats, fences, security cameras, greenhouse, camper, lawnmower, motorcycle, jet ski, trailer, camper, back-up and remote power use
- Flexible solar panel
- Solar charging 330W will provide about 1584Wh (Watt-hour} or 132Ah (Ampere-Hour) of charge per day (Depends on sunlight availability)
- 2560Wh of 2pcs 100Ah Lithium batteries
- 30A MPPT solar charge controller
- Double protection against power surge
- Easy-to-read LCD display
- Built-in BMS(battery management system)
- DIY Kit
SPECIFICATIONS:
12V 100Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V
Charge voltage: 14.2 - 14.6V
Battery Capacity: 1280WH
Depth of Discharge (DoD): 100%
Standard charge current: 20A
Max continuous charge current: 50A
Max continuous discharge current: 100A
Dimension (inch):12.99 x 6.81 (W) x 8.58 (H) inch;
Approx. Weight: 23.8lb

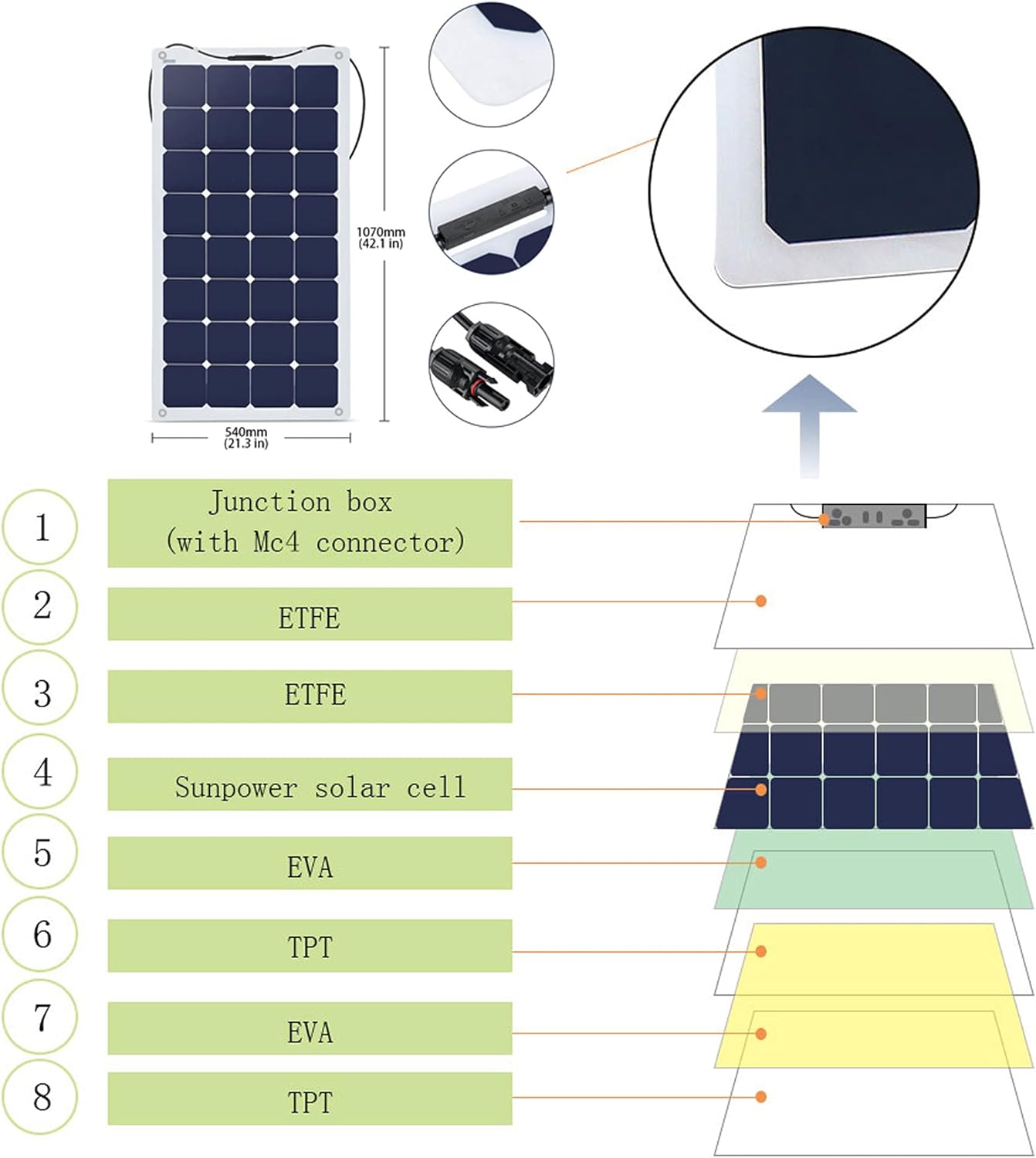

110W Semi-Flexible Solar Panel
Peak Power (Pmax):110W
Peak Circuit Voltage (Voc):20.8V
Max Power Voltage (Vmp):17.6V
Short Circuit Current (ISC):6.87A
Max Power Current (Imp):6.25A
Weight: 4.85 lb
Dimension: 44.68*21.26*0.12 Inch

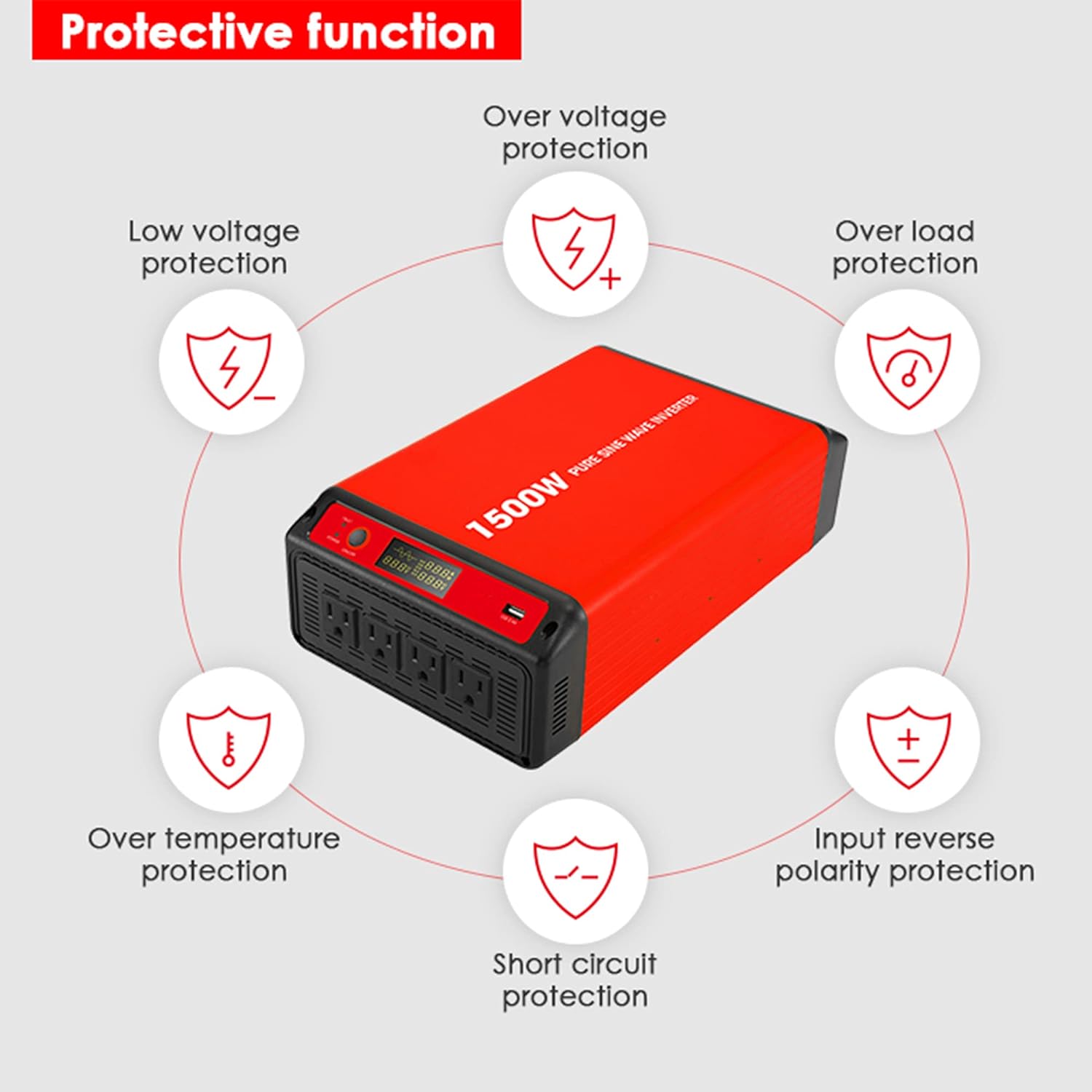

1500W Pure Sine Wave Inverter
Continuous output 1500W
Surge Power 3000W
Wave Form: Pure Sine Wave
Protection: Under voltage protection, Overvoltage protection, Overload
Protection, Output short circuit protection
Weight: 7.79lb
Dimension (inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

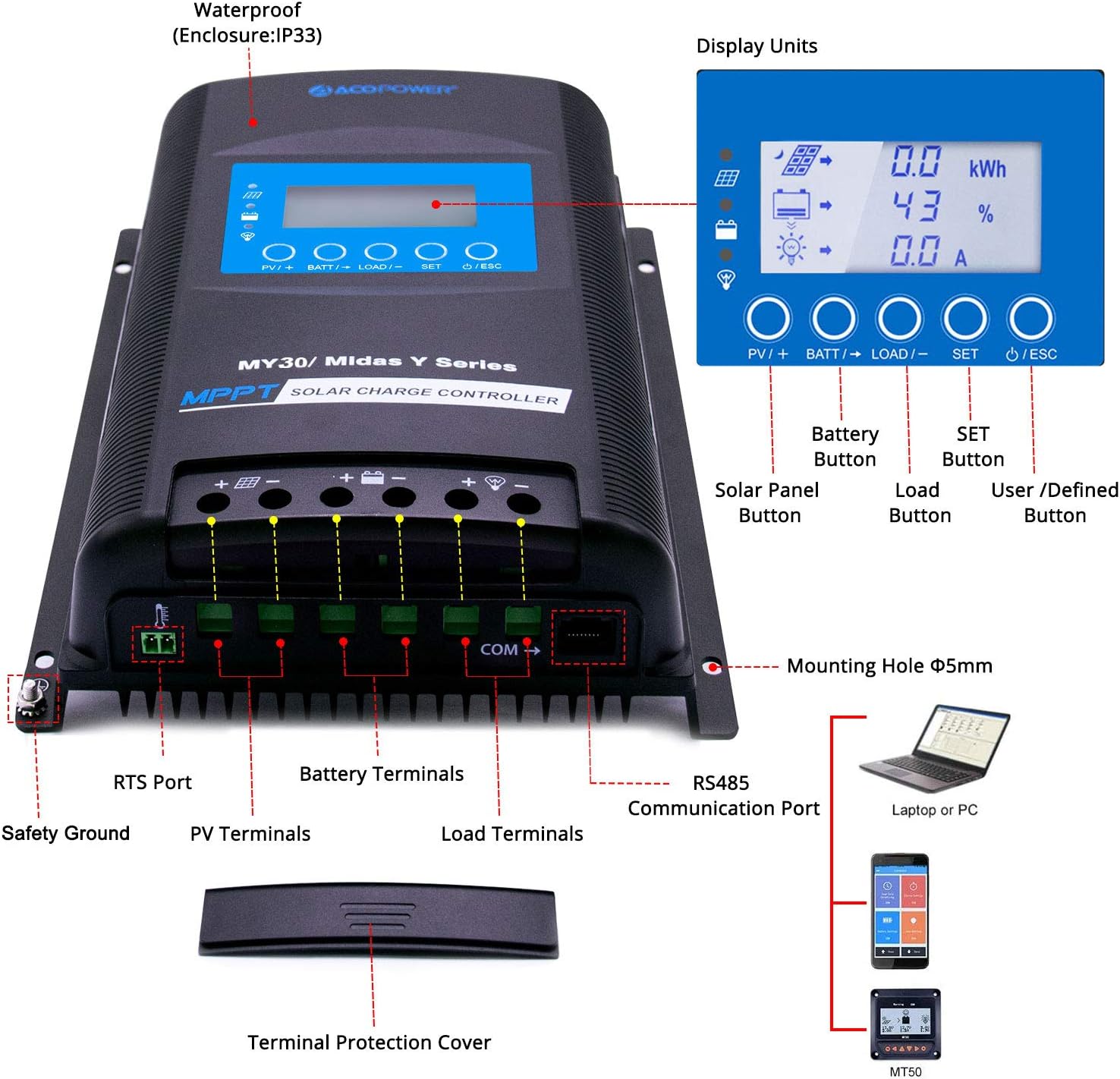

MPPT Solar Charge Controller 30A
Rated charge current: 30A
Battery voltage range: 8V~32V
Max.PV open circuit voltage: 100VDC
Max.PV input power: 12V/390W, 24V/780W
Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded, and Lithium-ion. LiFePO4 Multiple Load Control Method.

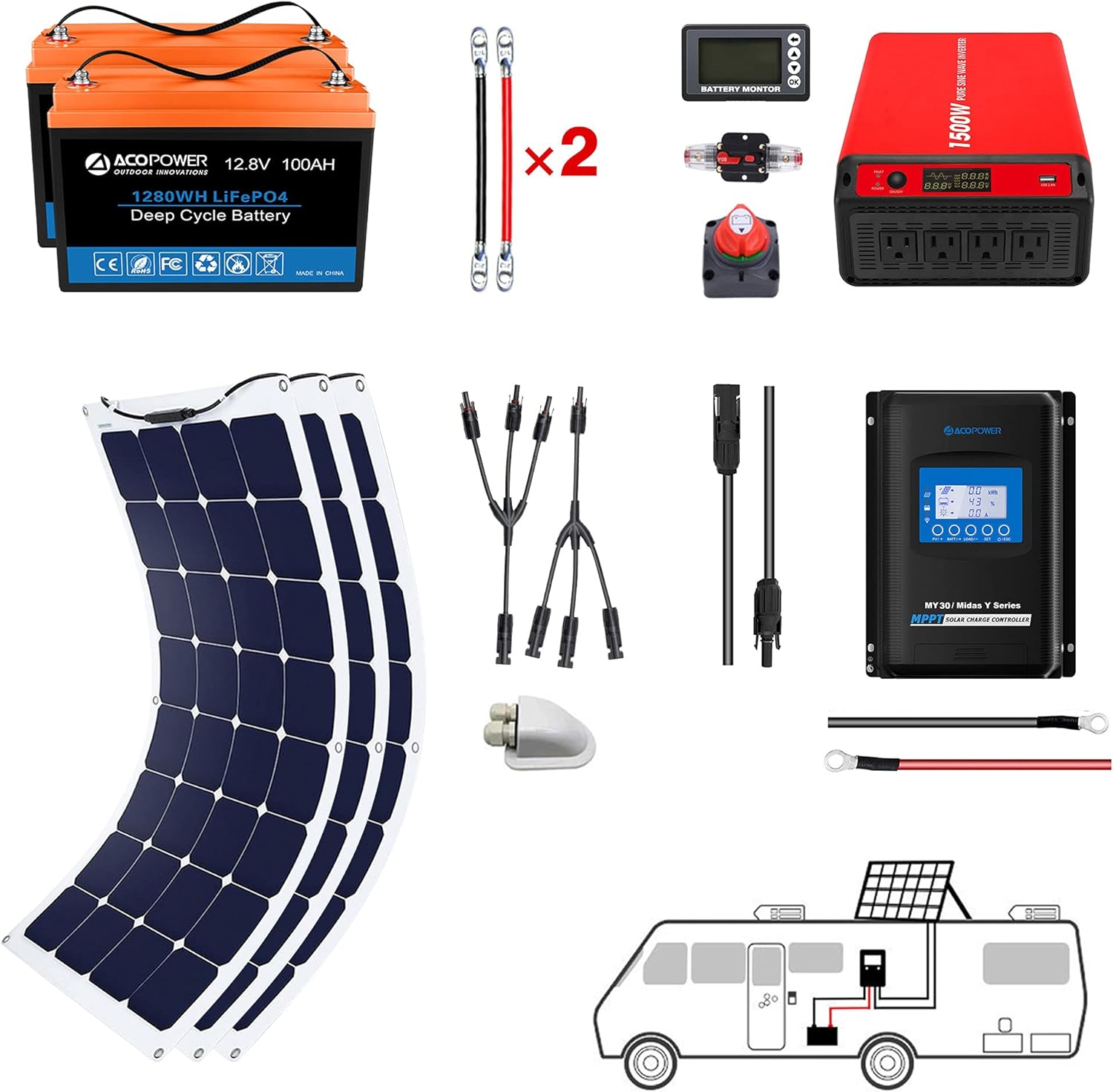

WHAT'S IN THE BOX:
2 x 100Ah LiFePO4 Battery
3 x 110W Solar Panel
1 x 1500W Inverter
1 x 30A MPPT Charge Controller
1 x Battery Monitor
1 x Battery Switch
1 x 60A Fuse
1 Pair x 30ft 10AWG PV Cable
2 Pair x 1Ft 4AWG Battery Cable
1 Pair x 8FT 8AWG Tray Cable
1PC x Cable Entry Housing
1 Pair x Y Branch Solar Panel Connectors
This Acopower solar system is perfect for off-grid living. Ideal for RVers, boat owners, and cabin dwellers. It includes a 110-watt flex solar panel (44.68*21.26*0.12 Inch, 4.85 lb), two 100Ah lithium batteries (12.99 x 6.81 (W) x 8.58 (H) inch, 23.8lb), and a 330-watt solar generator. The flexible panel can be installed on various surfaces. The batteries offer long-lasting power, and the generator has easy-to-use ports and an LCD for monitoring.
