Versatile & Reliable Power Solution

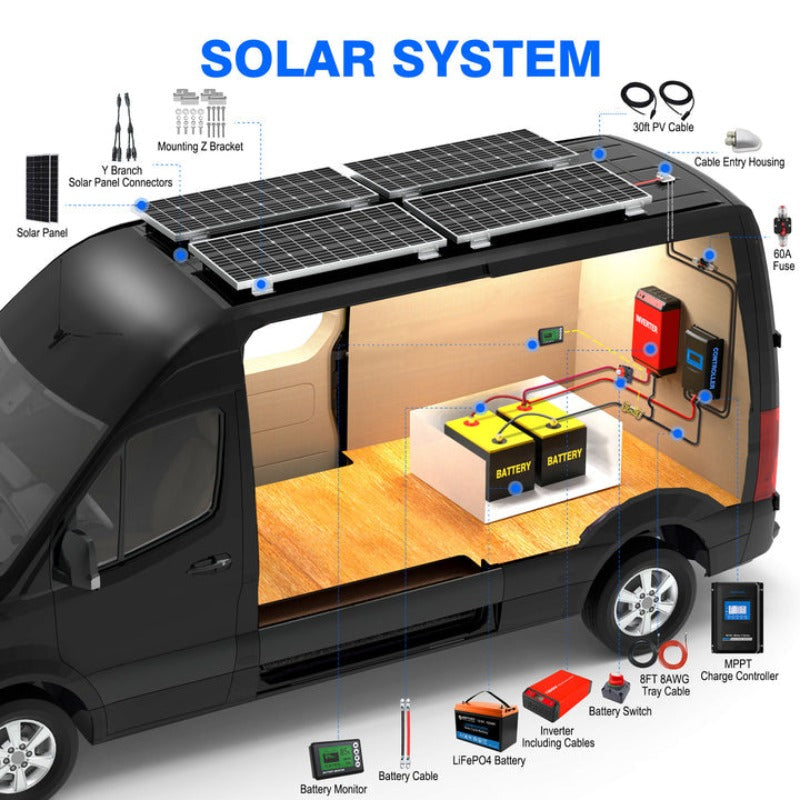

• Ideal for RVs, cabins, homes, and boats. Keep your appliances running smoothly with this all-in-one solar kit.
• High-capacity 2560Wh-3840Wh 2 100Ah lithium batteries for longer use.
• 40A MPPT Charge controller with 98% peak conversion efficiency and 99% tracking efficiency.
Ready for Easy Installation

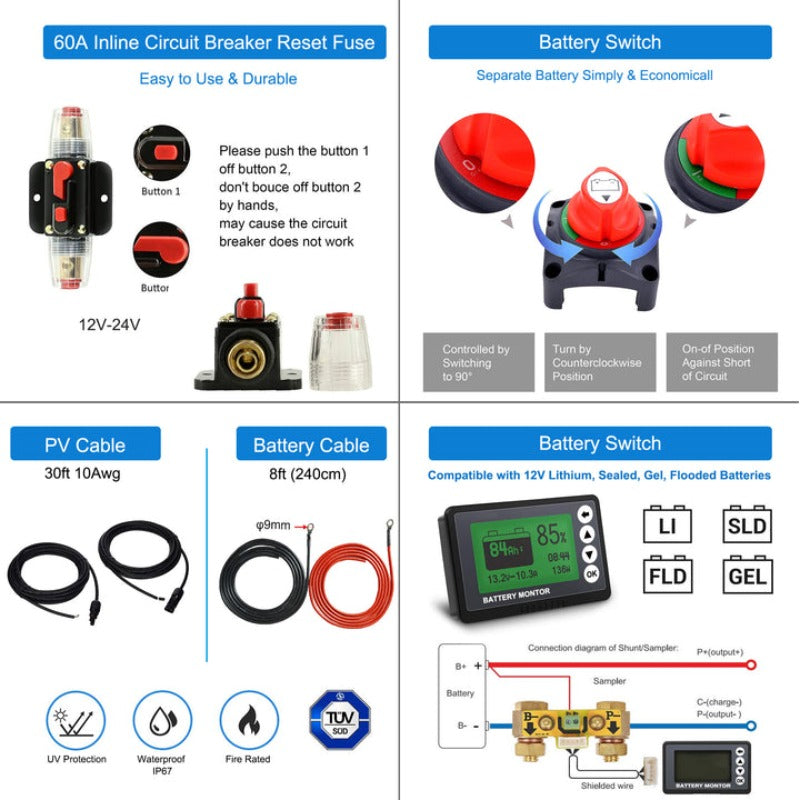

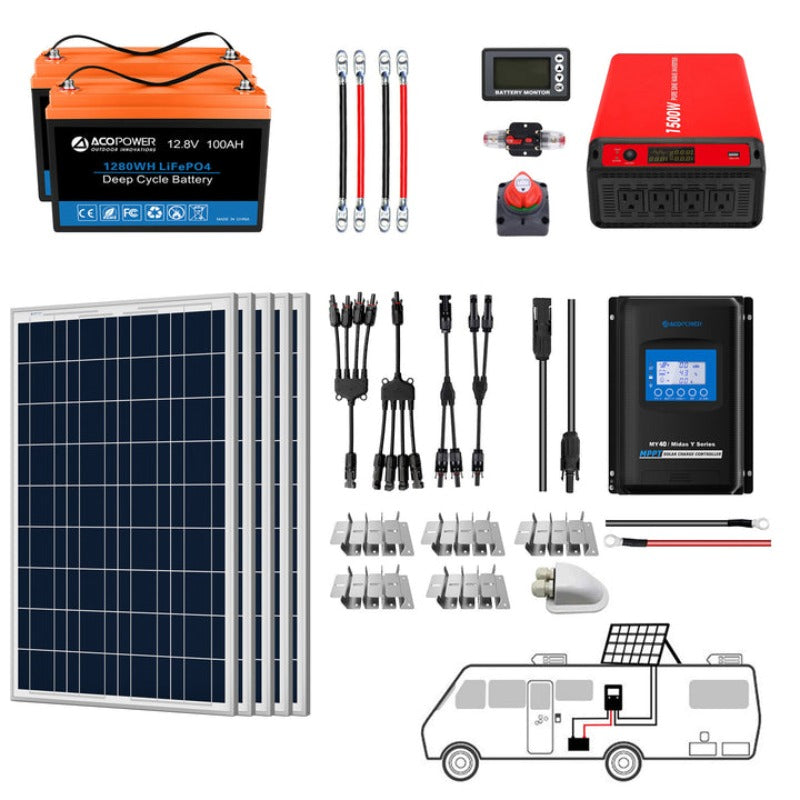

This complete kit comes with everything you need to set up your solar charge system. Just DIY! It includes 5pcs 100 Watt Polycrystalline Solar Panels, 2pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 60A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.
Specifications You Need to Know

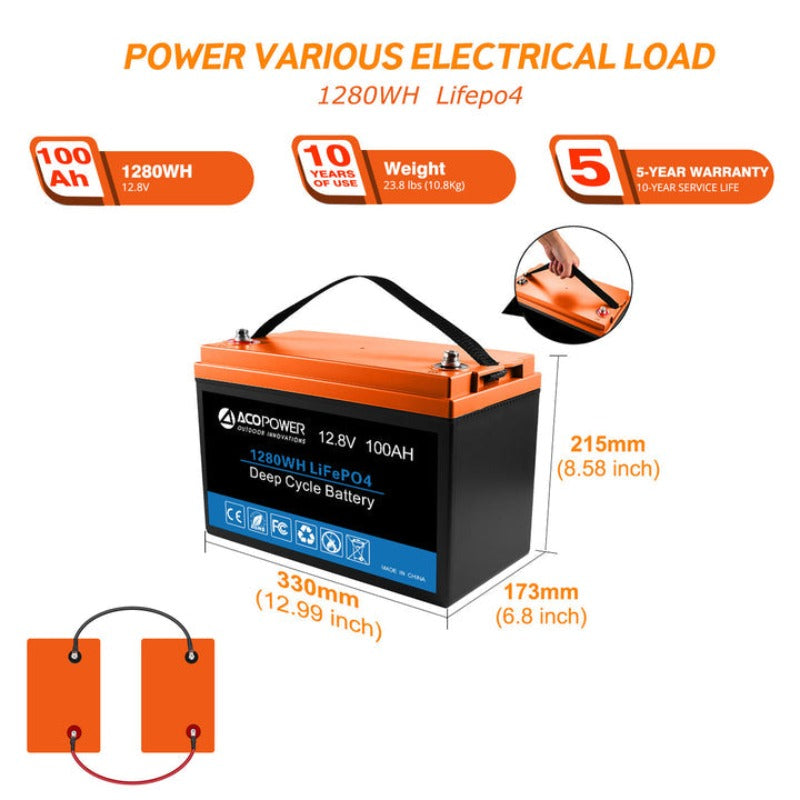

12V 100Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage: 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:1280WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 20A
- Max continuous charge current: 50A
- Max continuous discharge current: 100A
- dimension(inch):12.99 x 6.81 (W) x 8.58 (H) inch;
- Approx. Weight: 23.8lb

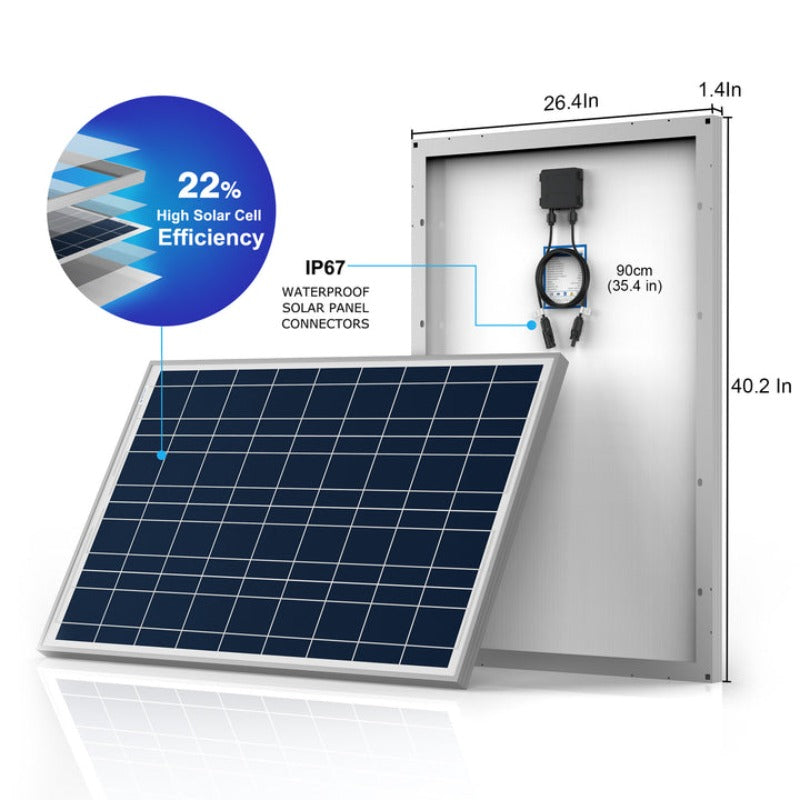

100W Poly Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.21A
- Max Power Current(Imp):5.72A
- Weight:17.6lb
- Dimension:40.2*26.4*1.4 Inch
- Application Class: Class A

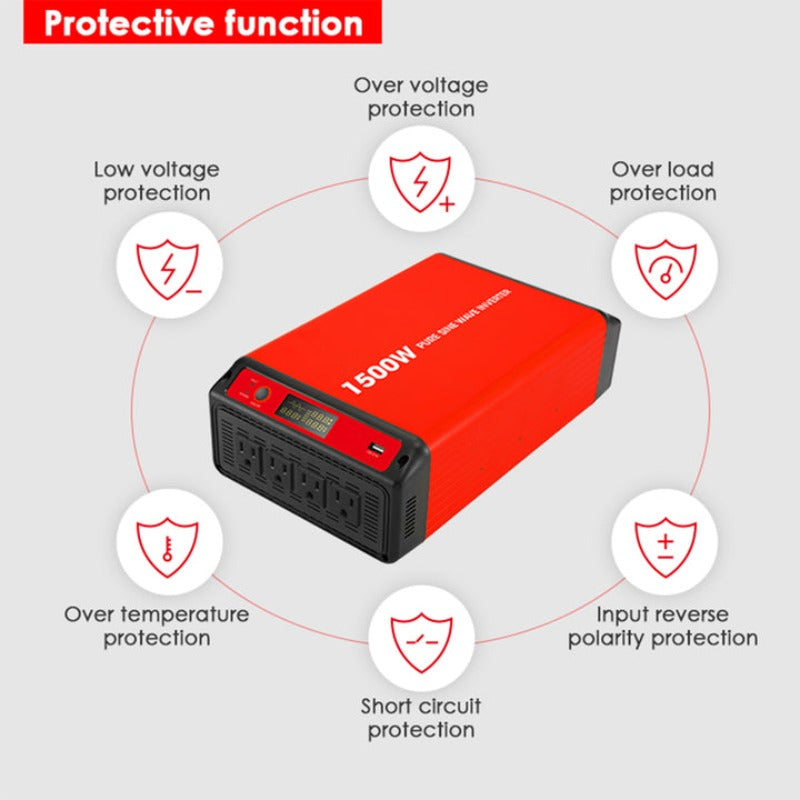

1500W Pure Sine Wave Inverter
- Continuous output 1500W
- Surge Power 3000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 7.79lb
- Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

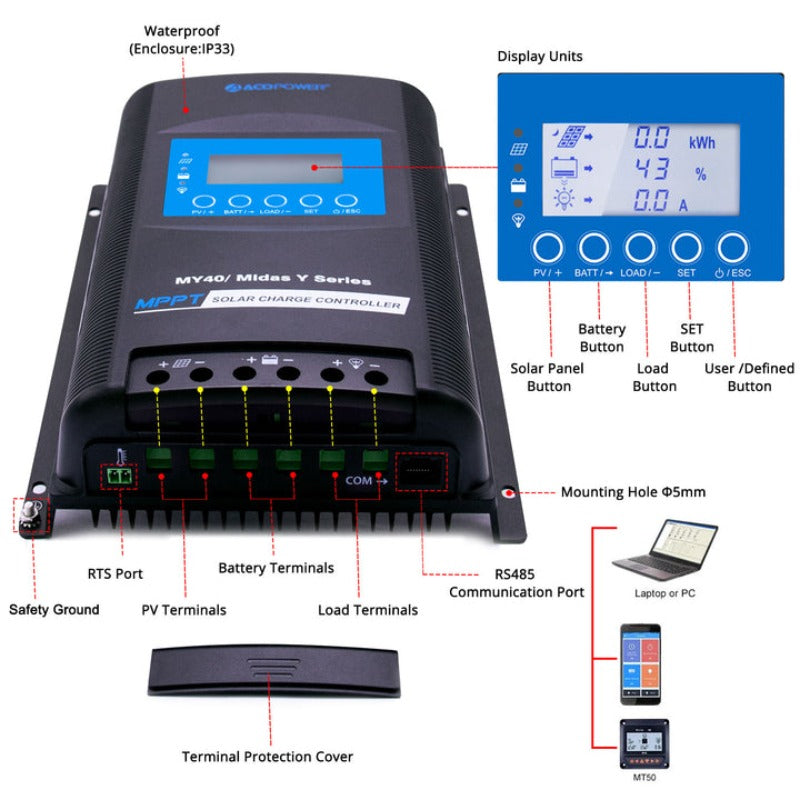

MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium-ion. LiFePO4 Multiple Load Control Method.
This Acopower solar kit is perfect for RVs, cabins, homes, and boats. It comes with 5 100W polycrystalline solar panels, 2 100Ah LiFePO4 deep cycle lithium batteries, a 1500W inverter, a 40A MPPT charge controller, and all necessary cables and brackets. The lithium batteries have a capacity of 2560Wh-3840Wh, offer high charging/discharging efficiency, and can endure over 3000 deep cycles. The 40A MPPT charge controller has a peak conversion efficiency of 98% and a tracking efficiency of 99%. The 12V 100Ah LiFePO4 battery has a rated voltage of 12.8V, a charge voltage of 14.2 - 14.6V, and weighs about 23.8lb. The 100W poly solar panel has a peak power of 100W and weighs 17.6lb. The 1500W pure sine wave inverter has a continuous output of 1500W and weighs 7.79lb. The 40A MPPT solar charge controller has a rated charge current of 40A and is compatible with various battery types.
