Incredible Swan K1 VTOL Drone for Mapping - Your Aerial Surveying Marvel
A Fixed-Wing UAV Beyond Imagination

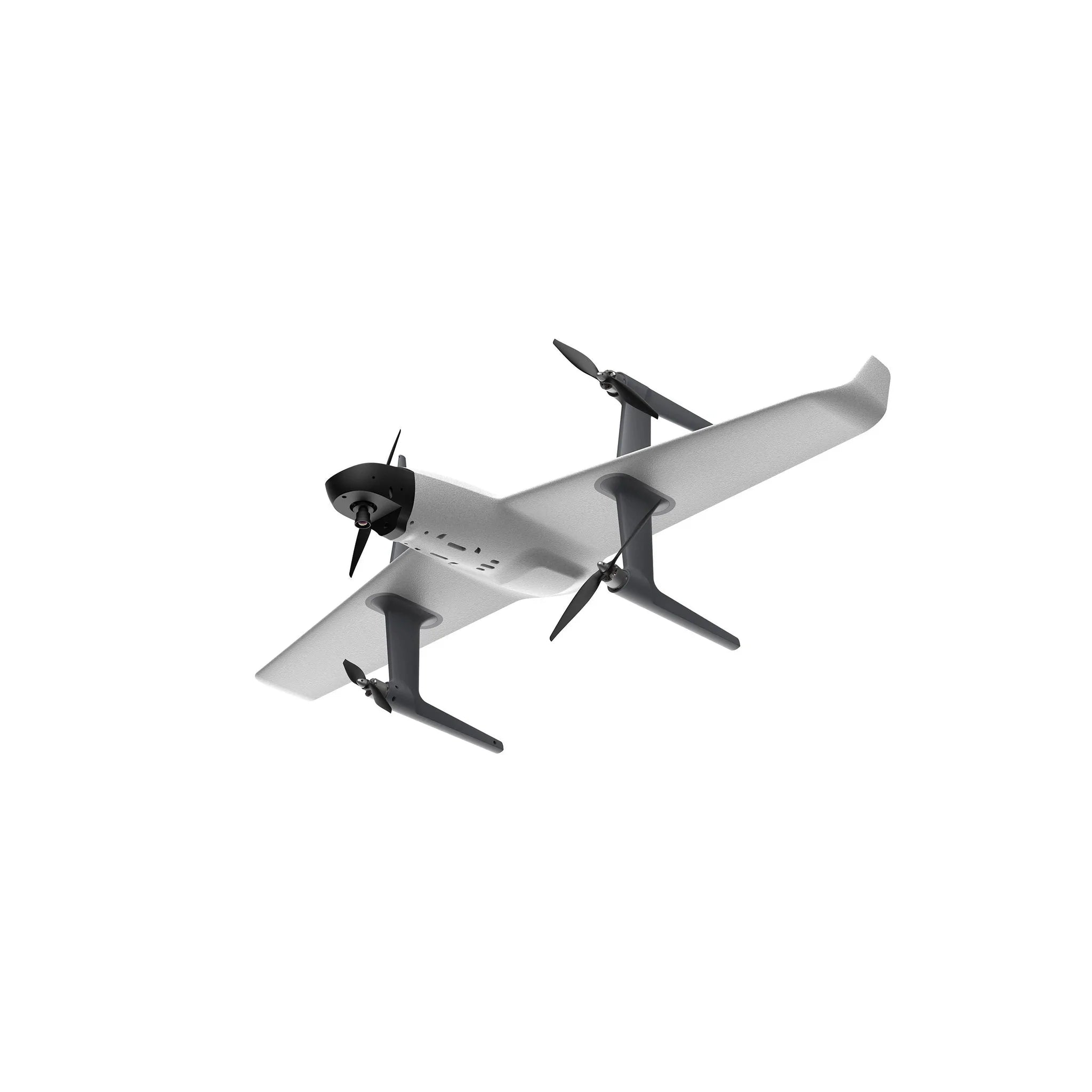

The Swan-K1 mapping is a revolutionary Small Vtol UAV for surveying and mapping. It can take off and land vertically and switch flight modes with one button. Enjoy a minimalist control experience with its no rudder surface control technology. The best part? It can get centimeter-accurate maps without GCPs, truly achieving GCPs-free control measurement.
Main features
- • Vertical take-off and landing - Effortlessly take to the skies and land safely with ease.
- • One-Click Switch - Seamlessly switch between fixed-wing and rotor flight modes in seconds.
- • Centimeter-accurate Map without GCPs - Get precise maps without the need for ground control points.
- • Minimalist control experience - Simple and intuitive controls for everyone.
- • 1 hour super long flight time - Stay airborne longer for extensive surveys.
- • Long voyage - Cover large areas with ease.
- • Zero Threshold Requirement - No prior experience needed to operate.
- • Intelligent Return - Automatically return to the starting point.
One-Click Take-Off
Unlike traditional fixed-wing drones, the Swan K1 offers one click take-off and one click return function. Switch between fixed-wing mode and rotor flight mode effortlessly. Master the flying skills in minutes even without any fixed-wing UAV or model airplane piloting experience.
A Fixed-Wing UAV Packed with Advantages
The Swan-K1 mapping is lightweight, portable, easy to disassemble and install, suitable for single-person operation, and has a long battery life. Ideal for surveying and mapping, measurement, remote inspection, power inspection, urban planning, energy projects, road construction projects, and mine surveying.

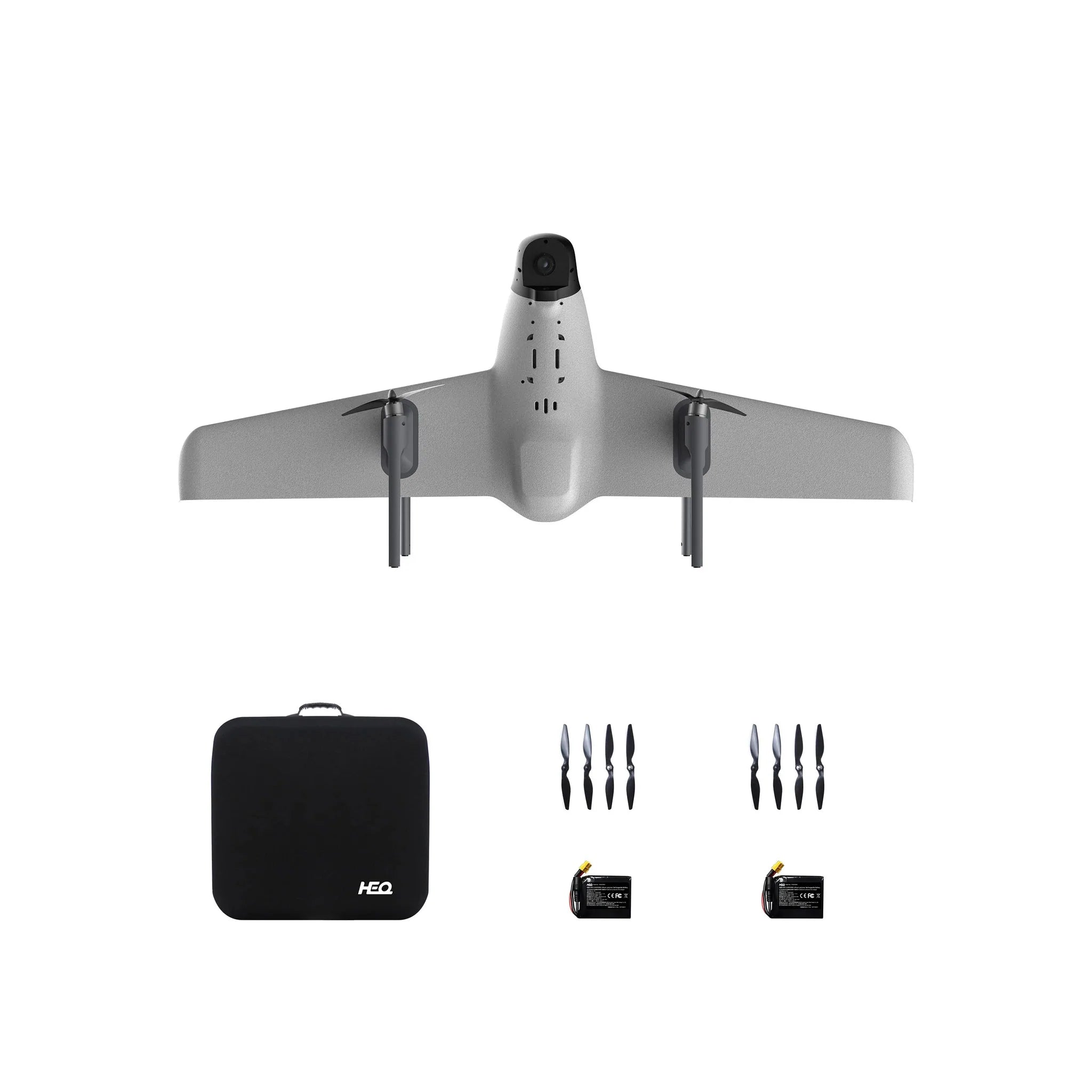

What's in the box
1x Swan-K1 Mapping aircraft
1x set of quick detachable nylon propellers
1x Radio controller(with HD touch screen)
1x Carry case
1x 5500mAh 15.2V Lipo Battery
1x Power charger
1x Aircraft User Manual and Disclaimer
1x Custom 24 Mega pixels SONY camera
1x PPK module
Specifications
Camera
Size
75¡Á65¡Á90mm (including 25mm lens)
Weight
220g( including lens)
Pixel
24.3 million pixels
Camera frame
APS frame
Sensor size
23.5¡Á15.6mm
Maximum resolution
24MP
Lens mount
Sony E mount
Access current
2~7S 10~30V
PPK module
Operating temperature
-30~+75¡æ
GNSS signal
GPS¡¢GLONASS¡¢BDS¡¢Galileo
GNSS channel
72
Update rate
5Hz
Input voltage
5V
Antenna voltage
3.3V
Average current
25mA
Data storage
16GB
Data Format
RINEX
Antenna interface
Mcx
Light
Trigger, satellite, storage, power
Horizontal accuracy
2cm+1ppm
Vertical accuracy
4cm+1ppm
Work efficiency
Overlap rate
80%¡Á70% Resolution 5/10/20 cm 60mins flight time
1£º500 Flying height 210m
2-3 square kilometers per flight
1£º1000 Flying height 420m
4-5 square kilometers per flight
1£º2000 Flying height 840m
8-9 square kilometers per flight
Operation accuracy
1£º500 Without ground control points
Horizontal accuracy¡Ü 5cm
Vertical accuracy¡Ü 5cm
1£º1000 Without ground control points
Horizontal accuracy¡Ü 8cm
Vertical accuracy¡Ü 10cm
1£º2000 Without ground control points
Horizontal accuracy¡Ü 15cm
Vertical accuracy¡Ü 20cm
The Swan K1 VTOL Drone is perfect for professionals in surveying, mapping, and various inspection industries. Its lightweight design (75×65×90mm, 220g including lens) makes it easy to carry and operate. With features like vertical take-off and landing, one-click switch between flight modes, and centimeter-accurate mapping without GCPs, it's a great tool for getting the job done efficiently. Suitable for single-person operation, it comes with a radio controller, carry case, battery, charger, and more.
