Description

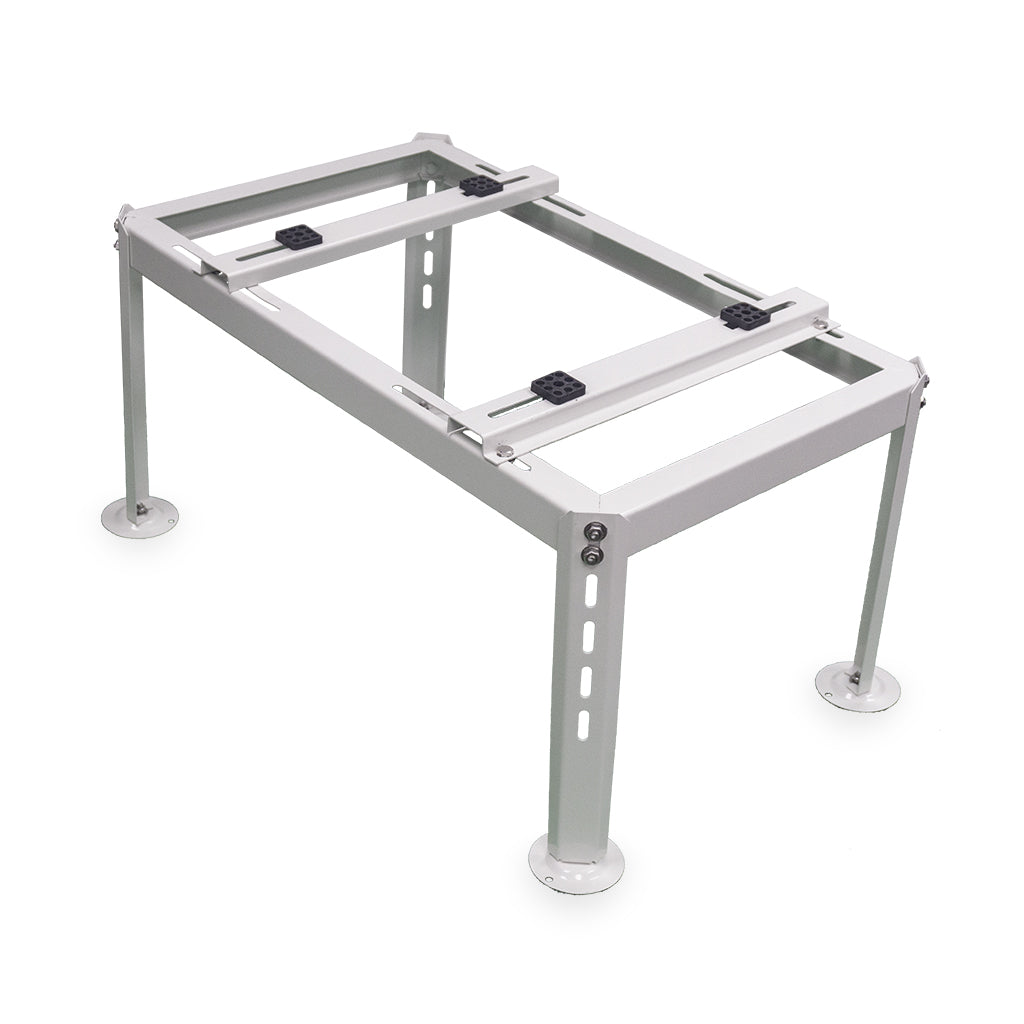

Protect your valuable Pioneer Mini Split investment! This heavy - duty floor - mountable condenser bracket safeguards against snow, floods, debris, and more. Ideal for when wall - mounting isn't an option, it offers a flexible solution. Elevate your system up to 18 inches above ground and keep it safe.
Key Benefits
- • Weather & Snow Resistant with White Powder - Coated Surface
- • 5 Adjustable Height Levels for Customization
- • Comes with Rubber Vibration Absorbers for the Condenser Unit
Specifications
- Hot galvanized bracket set, 2.2mm thick
- Stainless Steel SS201 standard hardware
- Loading weight: 350 lbs (2P), 450 lbs (3P)
- 14 mm Wrench needed for assembly
- Assembled Dimensions (WDH):
- 2P: 31.5 x 18.875 x 15.75 inches
Compatible with mounting feet up to 27.5 inches wide - 3P: 31.5 x 23.625 x 15.75 inches
Compatible with mounting feet up to 29 inches wide
Video
Document version

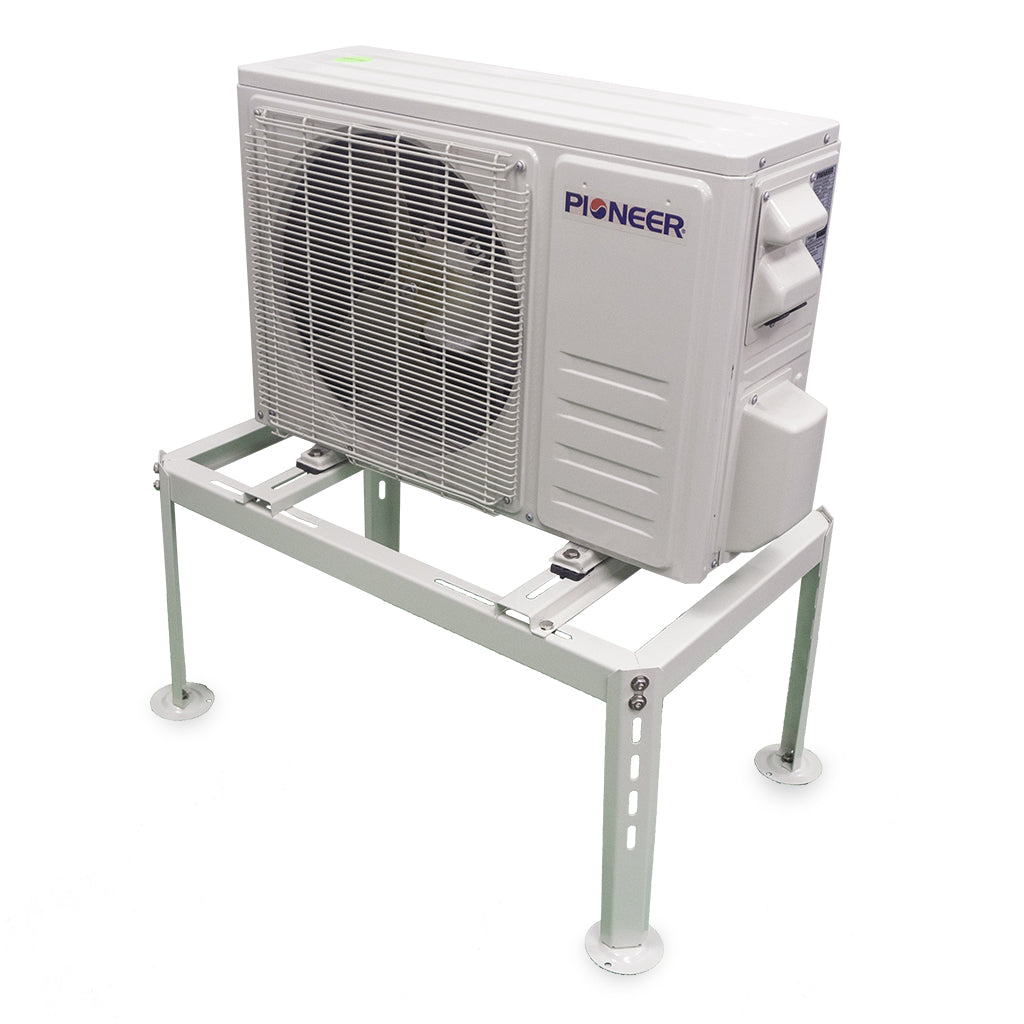

This floor stand bracket is designed for protecting Pioneer Mini Split condenser units. It's perfect for situations where wall - mounting isn't possible. The bracket can elevate the system up to 18 inches above the ground. It's suitable for homeowners and businesses with Pioneer Mini Split systems. The 2P bracket has assembled dimensions of 31.5 x 18.875 x 15.75 inches (WDH) and can handle mounting feet up to 27.5 inches wide, with a loading weight of 350 lbs. The 3P bracket has dimensions of 31.5 x 23.625 x 15.75 inches (WDH), can handle mounting feet up to 29 inches wide, and has a loading weight of 450 lbs.
