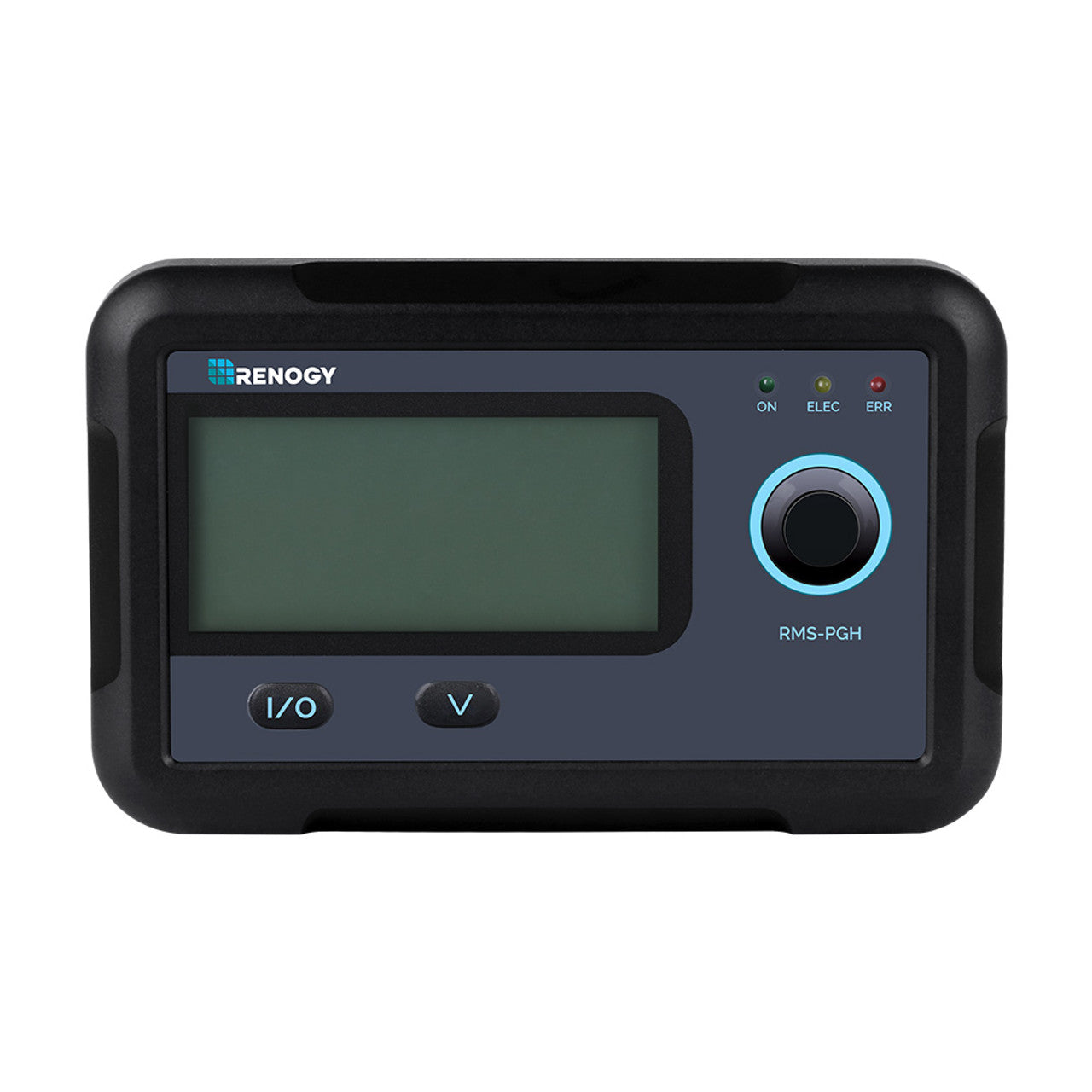

Renogy PGH Inverter Series Remote Monitor - RMS-PGH
Take charge of your solar power system effortlessly with the Renogy RMS-PGH Inverter Series Remote Monitor! This amazing device is perfect for anyone who wants to keep tabs on their solar-inverter system. Designed specifically for the PGH1 2000W Power Saving Inverter, it offers a seamless monitoring experience.

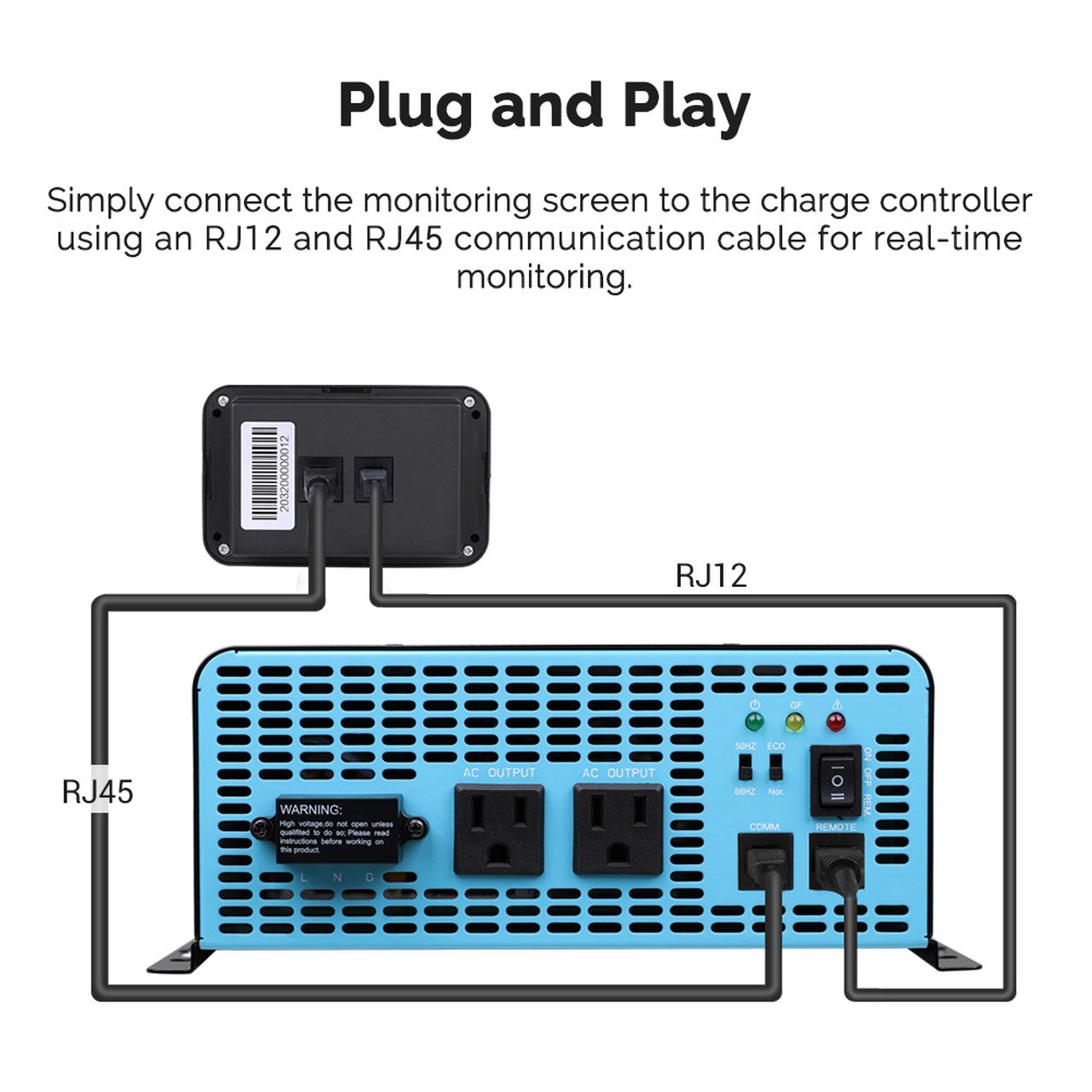

With its sleek design, it can be easily flush-mounted on RVs and camper walls. It combines the convenience of LCD screen monitoring and wired remote control. It's a breeze to set up - just plug and play! Connect the monitoring screen to the charge controller using an RJ11 and RJ45 communication cable for instant real-time monitoring.
Here are its awesome features:

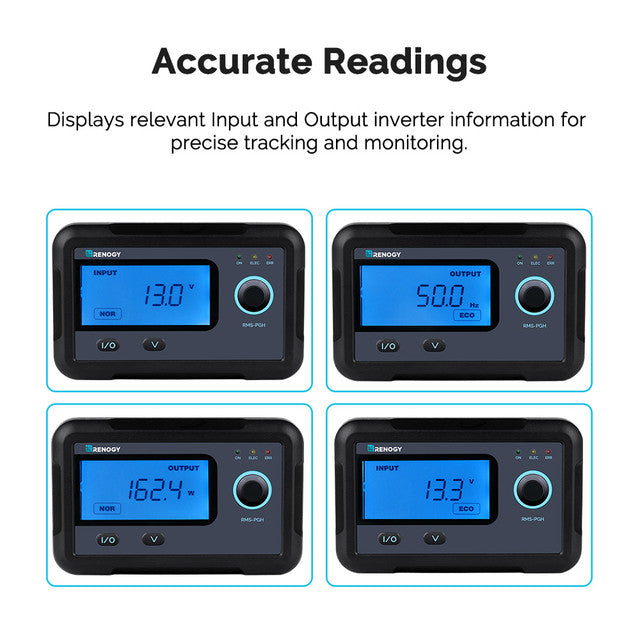

• Accurate Readings: Get precise data on energy generation, battery performance, and system status.

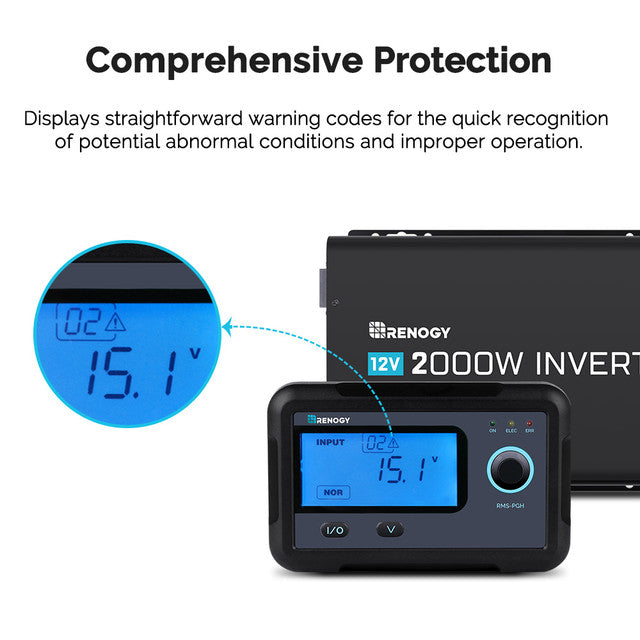

• Comprehensive Protection: Comes with a robust protection system with warning codes for peace of mind.
• Easy Navigation: Effortlessly access all the information you need.
Stay connected to your Renogy PGH1 2000W Power Saving Inverter like never before. Order now and start monitoring your energy savings!
Highlights:
Dual function
Plug and play
Accurate readings
Comprehensive protection
SPECIFICATIONS:
Electrical Specifications
Supply Voltage: 5VDC
Supply Current: 30mA
Power Consumption: <1W
Operating Temperature Range: -4°F~113°F / -20°C~45°C
Voltage Accuracy: ±0.1V
Current Accuracy: ±0.1A
Mechanical Specifications
Communication Port: RJ45 (RS485 Protocol) & RJ12
Display: Backlit LCD
User Interface: 2 Front Menu Buttons, 1 On/Off Push Button
Mounting System: Wall Mount
Dimension: 4.33 x 2.76 x 1.25 inch / 110 x 70 x 31.8 mm
Weight: 0.14 lbs / 62 g
Wire Length: 2 x 16.4ft / 5m
Mounting Screw: M2.9x13mmAccessories: 1-Year Material Warranty
WHAT'S IN THE BOX:
1 x Monitoring Screen for PGH Inverter Series
The Renogy PGH Inverter Series Remote Monitor - RMS-PGH is a must-have for anyone with a solar power system, especially those in RVs or campers. It's designed to work seamlessly with the PGH1 2000W Power Saving Inverter. With a sleek look, it can be flush-mounted on walls. It combines LCD screen monitoring and wired remote control for easy use. Just plug it in with an RJ11 and RJ45 communication cable to the charge controller for real-time monitoring. Its features include accurate readings, comprehensive protection, and easy navigation. The monitor has a supply voltage of 5VDC, consumes less than 1W, and has an operating temperature range of -4°F to 113°F (-20°C to 45°C). It has an RJ45 (RS485 Protocol) & RJ12 communication port, a backlit LCD display, and 2 front menu buttons and 1 on/off push button. It measures 4.33 x 2.76 x 1.25 inches (110 x 70 x 31.8 mm) and weighs 0.14 lbs (62 g). The wire length is 2 x 16.4ft (5m). It comes with a 1-year material warranty and includes 1 monitoring screen for the PGH Inverter Series.
