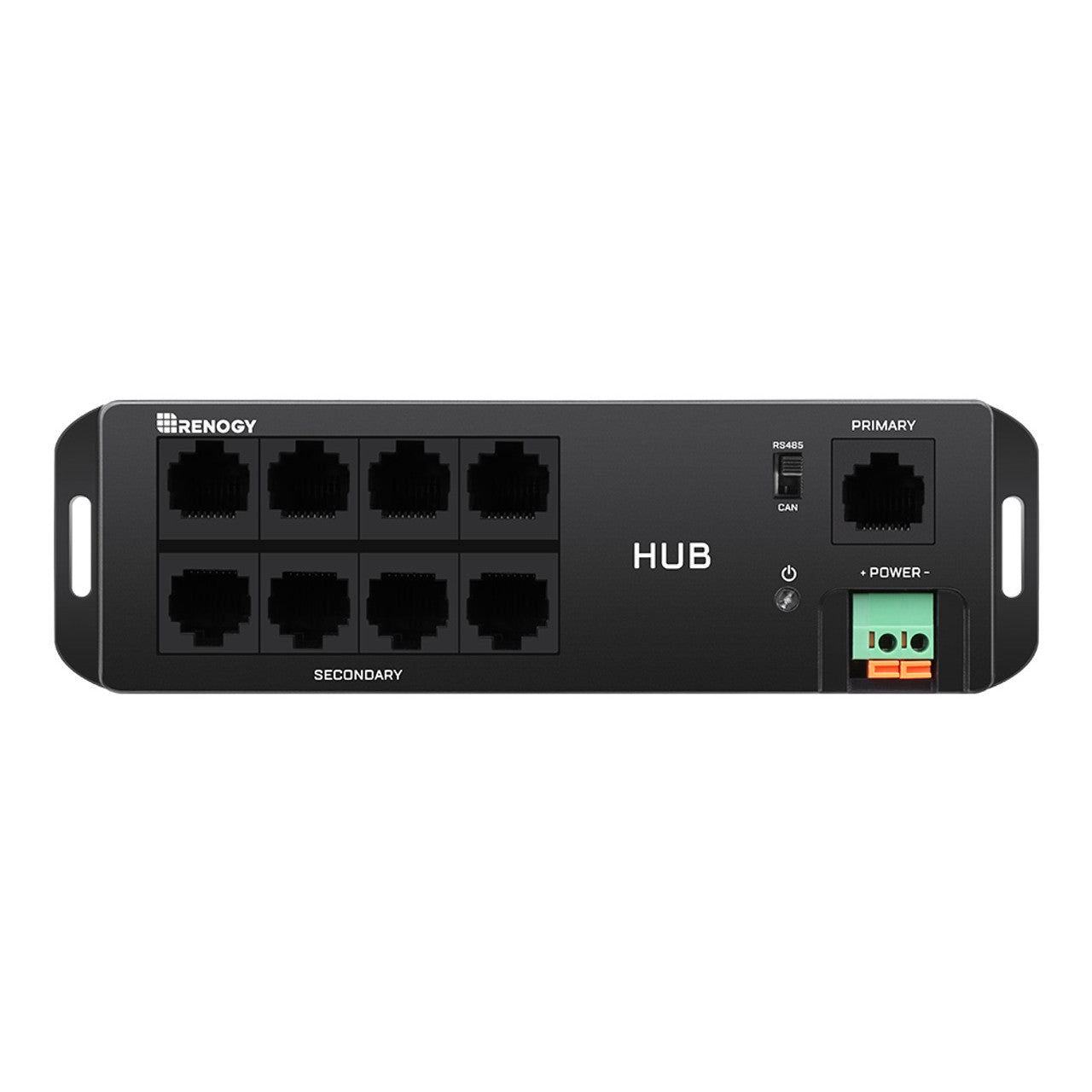

Renogy RCM-HUB: The Ultimate Communication Hub for Your Renogy Appliances

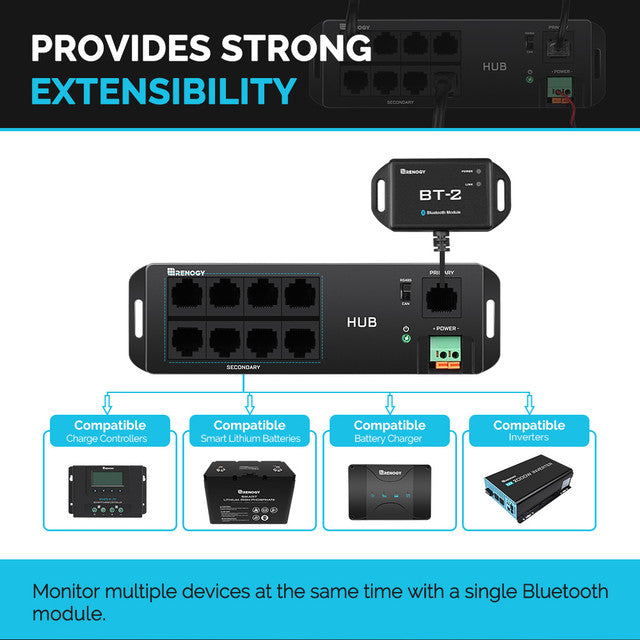

Take control of your Renogy devices with the Renogy Communication Hub! Connect one BT-2 Bluetooth module to multiple Renogy appliances via an RJ45 connector and RS485 communication protocol. Now, monitor multiple devices simultaneously right from your phone! It also supports both RS485 and CAN communication protocols, giving you even more compatibility options.
Highlights:
• Monitor multiple devices at once with just one Bluetooth module

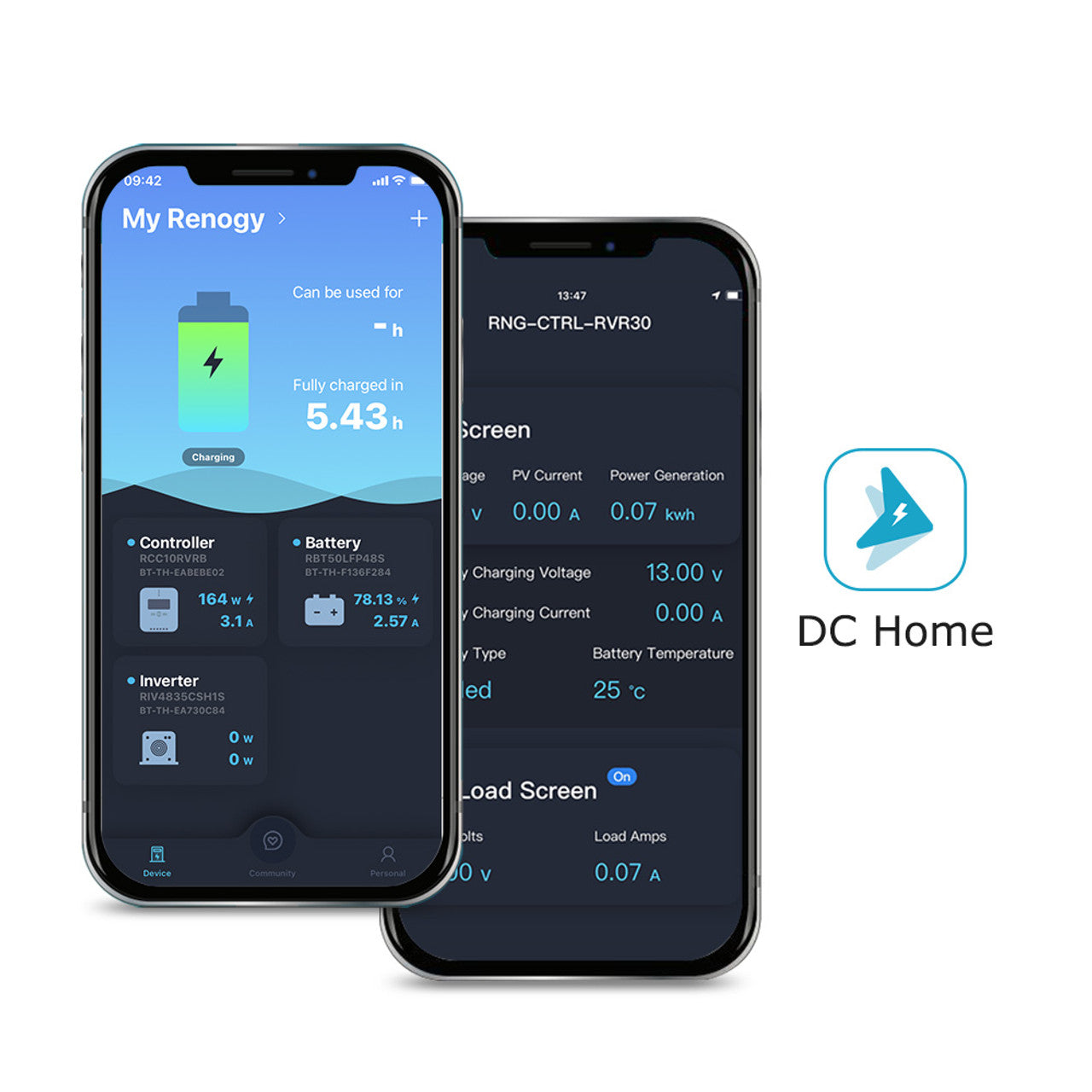

• Connect to the smartphone App and Renogy DC Home for easy system tracking
• Supports both RS485 and CAN communication protocols

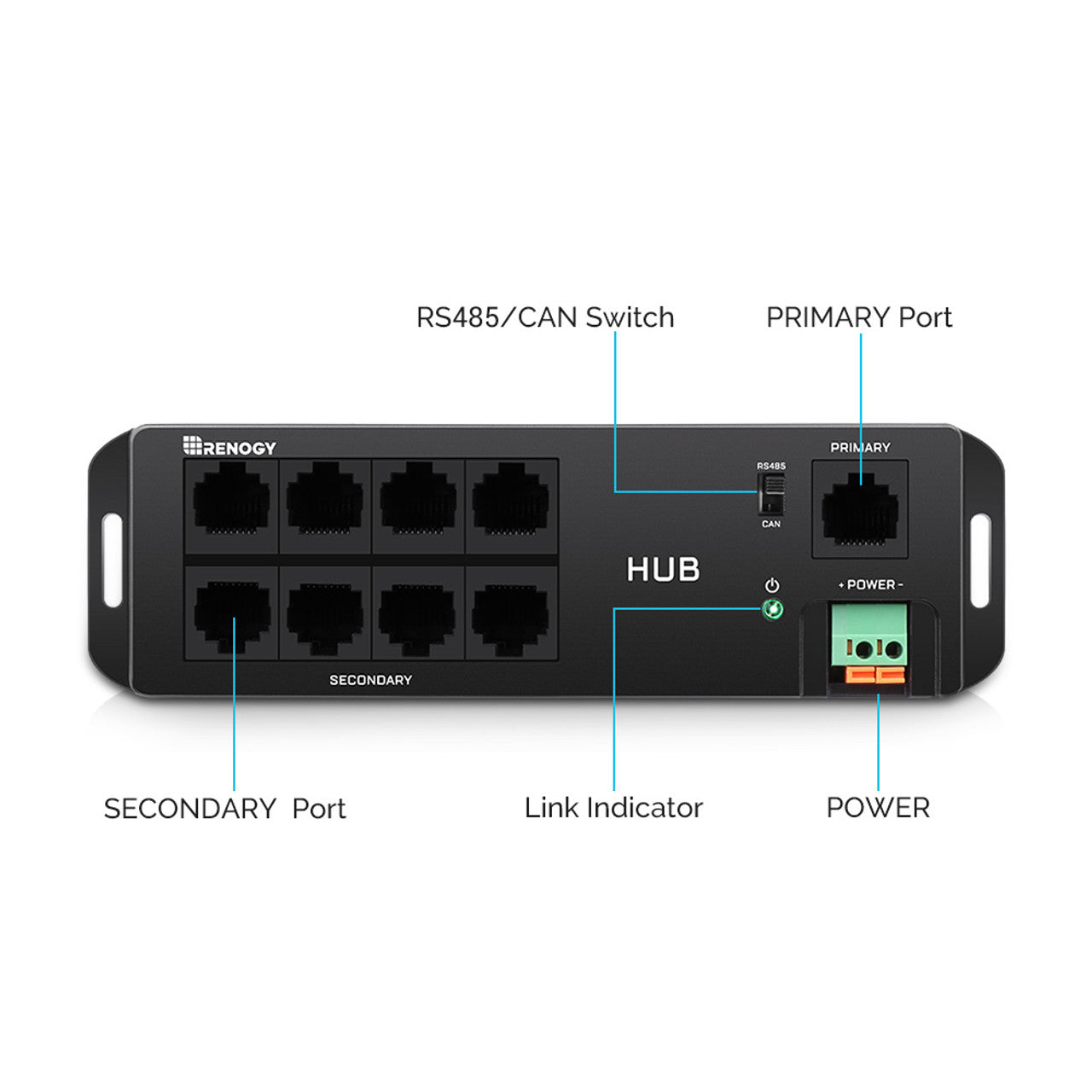

• Green LED lights to clearly show which communication is active
This hub is perfect for anyone looking to streamline their Renogy device management. Whether you're a DIY enthusiast or a professional installer, the Renogy RCM-HUB makes it easy to keep tabs on your systems. With its compact size of 6.29 X 1.89 X 0.91in (160 x 48 X 23mm) and lightweight 125g (4.41oz), it's easy to install and won't take up much space. The operating temperature range of -20°C~85°C (-4°F to 185°F) ensures reliable performance in various environments.
SPECIFICATIONS:
Input Voltage: 9V-60V
Port Type: RJ45
Standby Power Consumption: 0.324W
Cable Length: 5.00m (16.4ft)
Operating Power Consumption: <0.35W

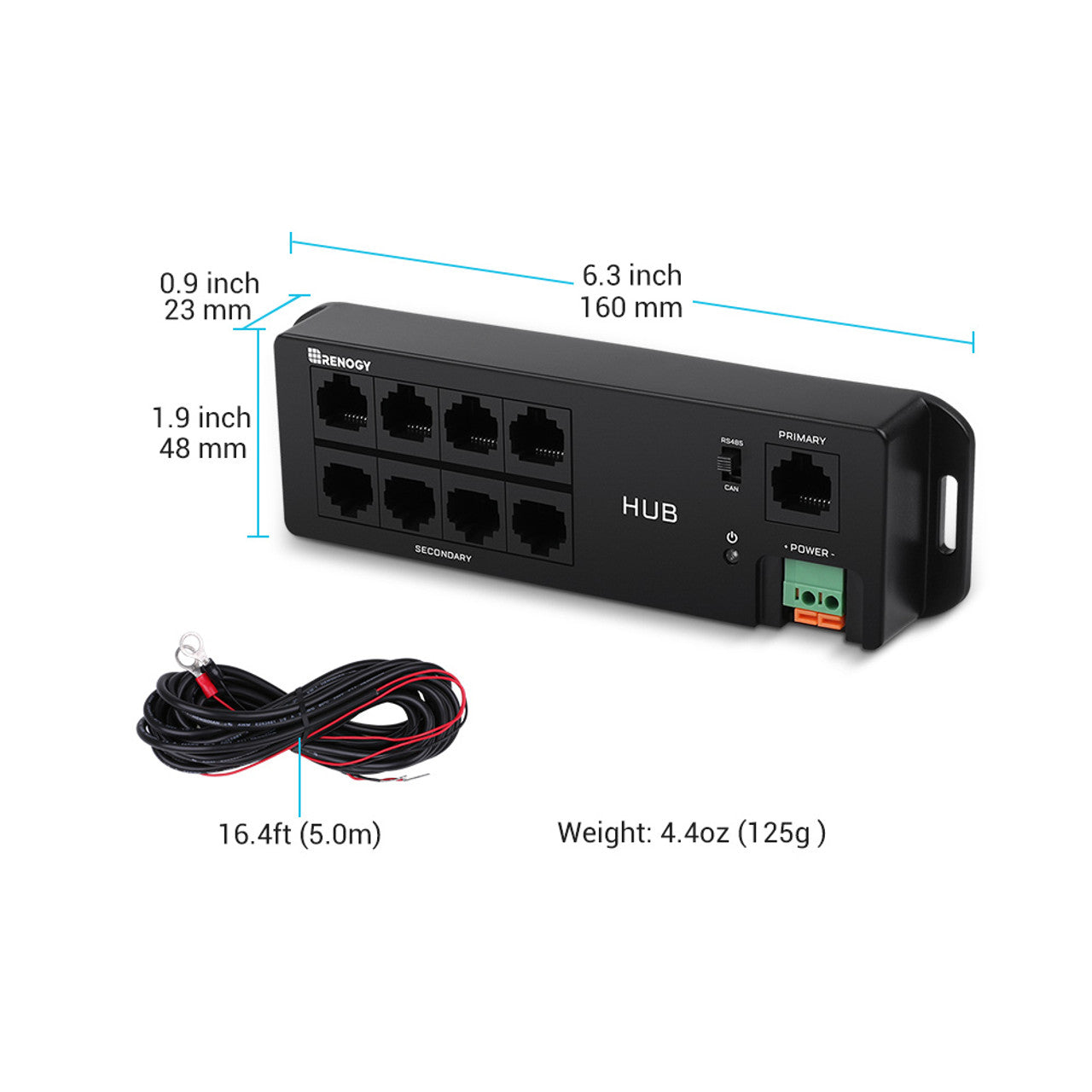

Dimension: 6.29 X 1.89 X 0.91in (160 x 48 X 23mm)
Communication Range: ¡Ü82ft
Installation Dimension: 151.4 ¦Õ3.5mm (5.96 ¦Õ 0.14in)
Serial Baud Rate: RS485-9600 bps CAN-500 kbps
Operation Temperature: -20¡ãC~85¡ãC;(-4¡ãF to 185¡ãF)
Communication Protocol: RS485 CAN
Weight: 125g (4.41oz)
Warranty Information: Accessories 1-year Material and Workmanship Warranty
WHAT'S IN THE BOX:
1 x Renogy Bluetooth Hub
1 x Power Cable
The Renogy RCM-HUB is a must-have for anyone using Renogy appliances. It allows you to connect one BT-2 Bluetooth module to multiple appliances via RJ45 connector and RS485 communication protocol. Ideal for DIYers and pros alike, this hub enables you to monitor multiple devices simultaneously from your phone. Its features include support for RS485 and CAN protocols, and green LED lights to indicate active communication. With dimensions of 6.29 X 1.89 X 0.91in (160 x 48 X 23mm) and a weight of 125g (4.41oz), it's easy to install and manage. The operating temperature range of -20°C~85°C (-4°F to 185°F) ensures reliable performance in various environments.
