Renogy 400W 12V Premium Solar Kit - Harness Green Power Effortlessly

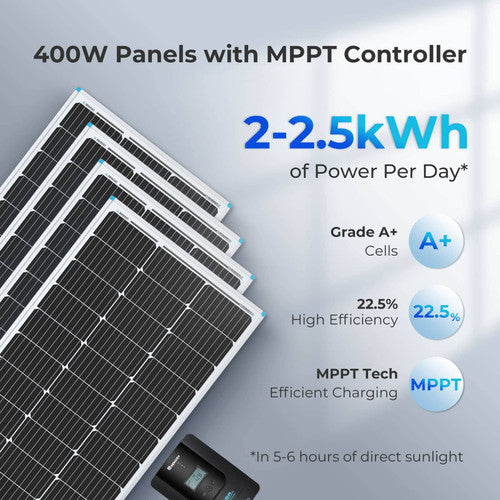

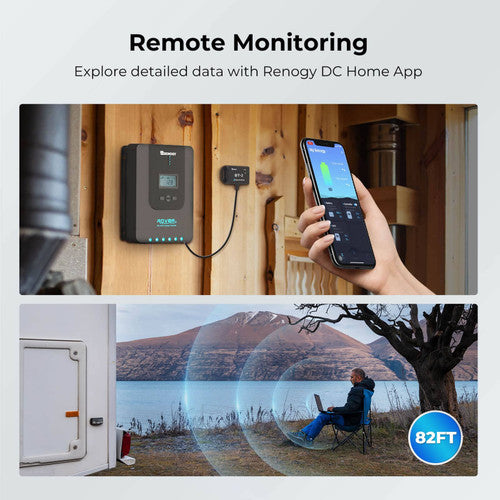

Unleash the power of nature with the Renogy 400 Watt 12 Volt Solar Premium Kit! Feel the difference as you generate 2 - 2.5kWh of clean, green energy. This all - in - one kit comes with top - notch Renogy Solar Panels, an ANL fuse, and a Rover MPPT charge controller that harvests 30% more power. Plus, enjoy Bluetooth connectivity for easy remote monitoring and control.
• High - quality PERC cells in half - cell BB design for 22.5% higher cell efficiency. The panels are built to last a lifetime with premium materials like TPT backsheet and aluminum frame.
• The MPPT charge controller with 8 protection features safeguards your system from over temperature, low temperature, reverse current, reverse polarity, short - circuit, overload, overcharging, and overdischarging.

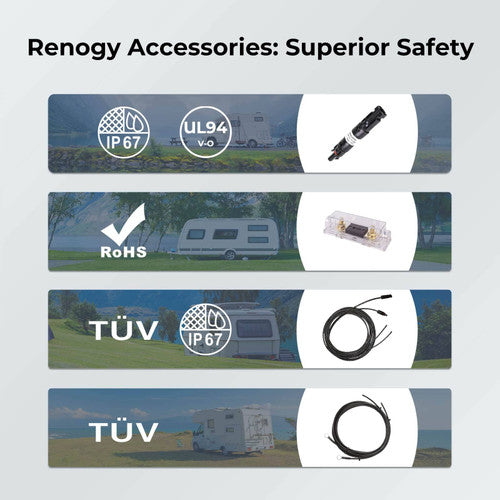

• Supports both series and parallel wiring, making it easy to upgrade your energy system. The kit also includes an In - line fuse and ANL fuse for a reliable fuse solution.
Specifications:
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Maximum Power: 100W
Maximum System Voltage: 600V DC (UL)
Open - Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short - Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Dimensions: 41.8 x 20.9 x1.4 in
Weight: 14.1lbs/6.4kg
ROVER LI 40A MPPT CHARGE CONTROLLER

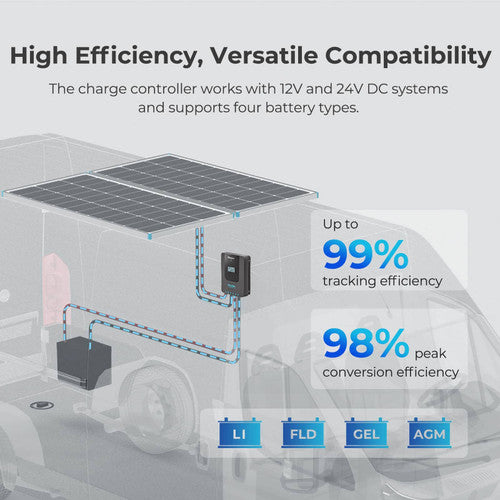

Nominal System Voltage: 12V/24V Auto Recognition
Rated Charge Current: 40A
Max. PV Input Voltage: 100 VDC
Max. PV Input Power: 12V/520W, 24V/1040W
Max Battery Voltage: 32V
RENOGY 8FT 8AWG TRAY CABLES (A PAIR)
Rating Voltage: 600/1000V
Length: 8ft
Wire Gauge: 8AWG
Temperature: -40°F to +185°F
2FT 8AWG ANL FUSE CABLE
Length and Wire Gauge: 2ft and 8AWG
Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV
Temperature: -40°F to +194°F
RENOGY 20FT 10AWG SOLAR ADAPTOR KIT (A PAIR)
Length: 20ft
Wire Gauge: 10AWG
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
BT - 2 BLUETOOTH MODULE
Input Voltage: 5V or 12V
Communication Range: ≤82ft (25m)
Communication Protocol: RS485
Operation Temperature: -4°F to 185°F ('-20°C~85°C)
RENOGY 10A IN - LINE FUSE HOLDER W/FUSE
Rated Current: 10A
Rated Voltage: 1000 V DC
Contact Material: Copper, Silver Plated
Replaceable Fuse: Cylindrical PV Fuse (10x38mm)
ANL 40A FUSE SET
Current Rating: 40A
Voltage Rating: 72V
Interrupt Capacity: 80A
Withstanding voltage: 1000V DC(TUV), 600V(UL)
Rated Current: 50A
Protection Degree: IP67, mated
Temperature : -40°F to +194°F
Protection Class: Class II
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets: Four Nuts
Panels: 25 - year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10 - year material and workmanship warranty
Accessories: 1 - year material and workmanship warranty

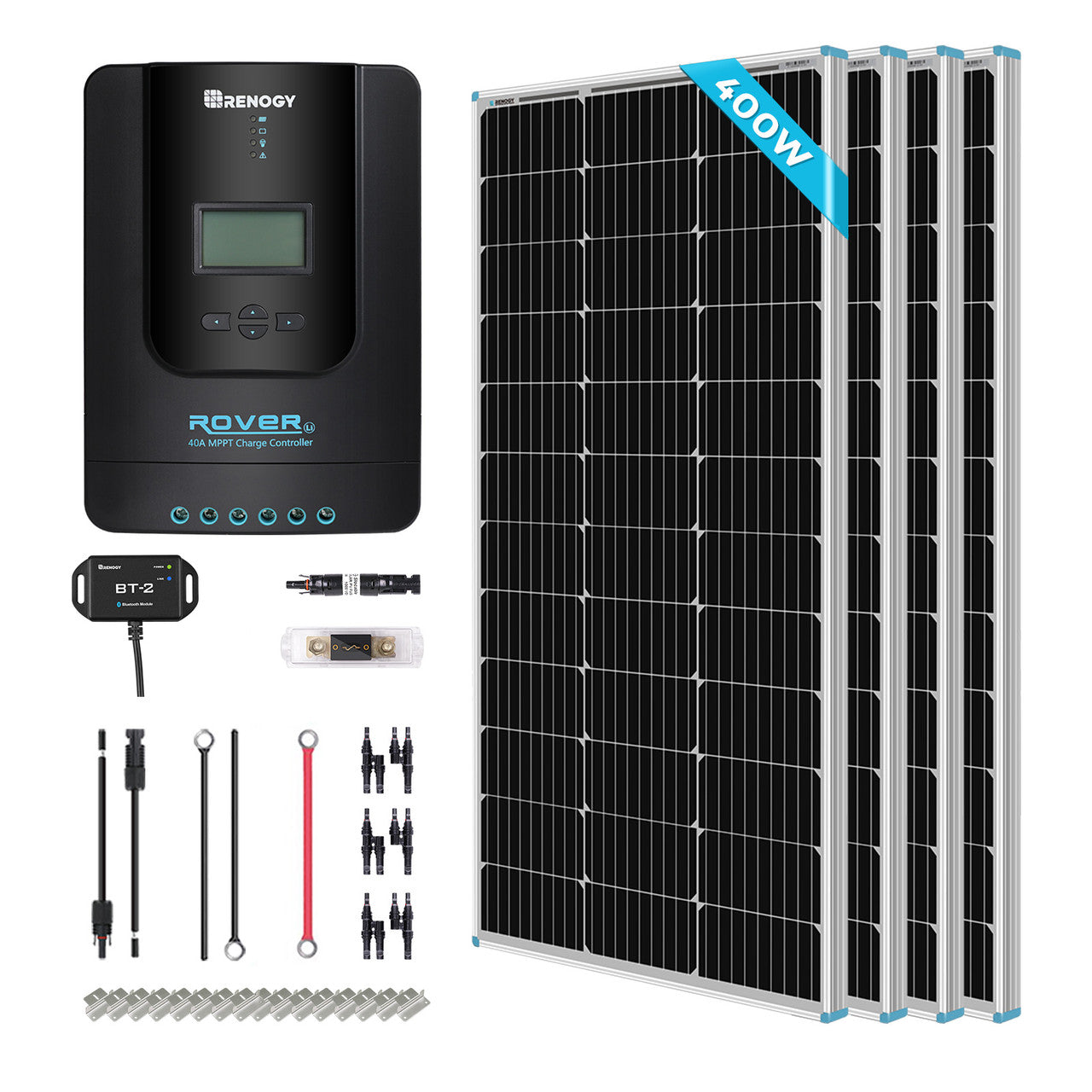

What's in the Box:
4 x 100W Mono Solar Panel
1 x Rover Li 40A MPPT Charge Controller
1 x BT - 2 Bluetooth Module
1 x 20FT 10AWG Adaptor Kit
1 x 2FT 8AWG Fuse Cable
1 x 8FT 8AWG Tray Cable
4 x Mounting Z Brackets (Set)
3 x Solar Y Branch Connectors MMF+FFM Pair
1 x 10A In - line Fuse
1 x 40A ANL Fuse
1 x User Manual
This Renogy 400W 12V Premium Solar Kit is perfect for homeowners, campers, and anyone looking to go green with their energy source. Whether you want to power your home appliances during a power outage or keep your camping gear charged on the go, this kit has you covered. The solar panels are 41.8 x 20.9 x1.4 inches in size and weigh 14.1lbs/6.4kg each. With it, you can easily generate 2 - 2.5kWh of clean energy, monitor and control your system remotely via Bluetooth, and upgrade your energy system with ease.
