Renogy 200W 12V Solar Starter Kit
Are you ready to embrace the power of the sun? This kit is perfect for beginners eager to start using solar energy in small off-grid setups. Whether it's for your RV, boat, cabin, or shed, we've got you covered!
Key Features:
- • 200W Solar Power: Two 100W monocrystalline solar panels for efficient power generation.
- • 30A PWM Charge Controller: Protects batteries and monitors system status.
- • Easy Expansion: Expandable up to 400W for future power needs.
Why Choose This Kit?

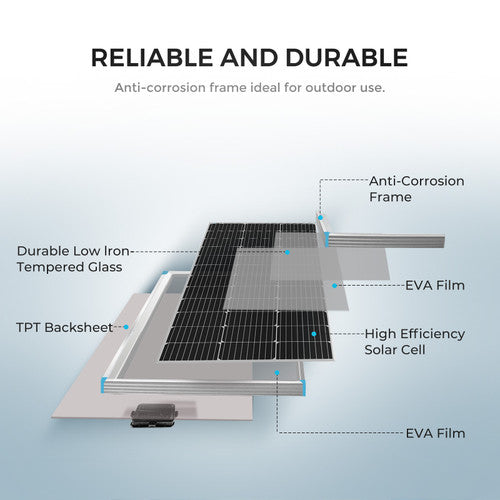

Our kit offers excellent efficiency, durability, and flexibility. The monocrystalline panels are corrosion-resistant and built to last. With pre-drilled holes and included mounting hardware, installation is a breeze. Plus, you get a 25-year power output warranty on the panels and a 1-year warranty on accessories.
Technical Specifications:
RENOGY 100W MONOCRYSTALLINE SOLAR PANEL
Max Power at STC: 100W
Open-Circuit Voltage (Voc): 24.3V
Optimum Operating Voltage (Vmp): 20.4V
Short-Circuit Current (Isc): 5.21A
Optimum Operating Current (Imp): 4.91A
Operating Temperature: -40°F to 185°F (-40°C to +85°C)
Weight: 14.1lb (6.4kg)
Dimensions: 41.8*20.9*1.38in(1062x530x35mm)

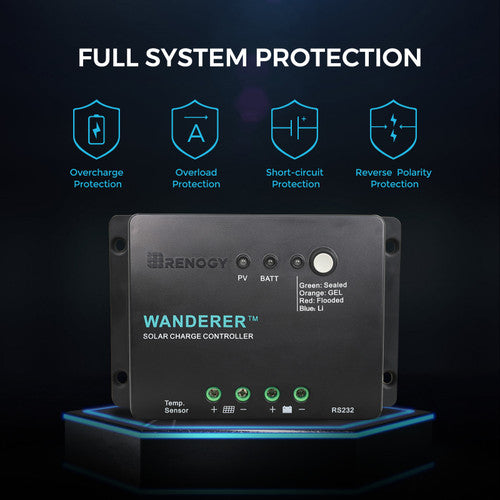

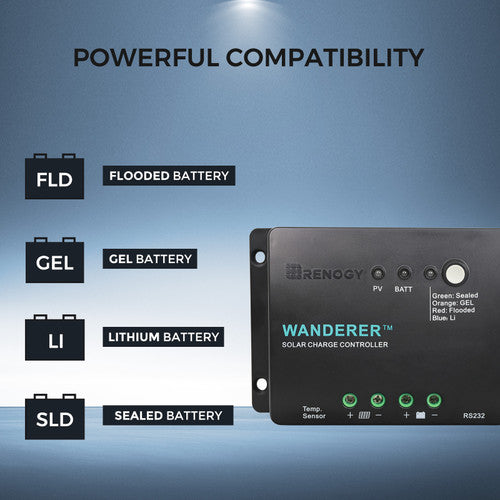

WANDERER LI 30A PWM CHARGE CONTROLLER
Nominal Voltage: 12 V
Rated Charge Current: 30A
Max. PV Input Voltage: 25 VDC
Max. PV Input Power: 400W (12V)
RENOGY 20FT 10AWG SOLAR ADAPTOR KIT (SET)
Length : 20FT
AWG : 10
Rating Voltage : 600/1000V
Temperature : -40°F to +185°F
RENOGY 8FT 10AWG TRAY CABLES (PAIR)
Length: 8ft
AWG: 10
Rating Voltage: 600/1000V
Temperature: -40°F to +185°F
RENOGY SOLAR Y BRANCH CONNECTORS
Withstanding Voltage: 1000V DC(TUV), 600V(UL)
Protection Degree: IP67, mated
Rated Current: 50A
Temperature: -40°F to +195°F
MOUNTING Z BRACKETS (SET)
Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers
Four Z Shape Solar Panel Brackets: Four Nuts
WARRANTY INFORMATION
Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty; 25 year 80% output warranty10 year material and workmanship warranty
Accessories: 1-year material and workmanship warranty

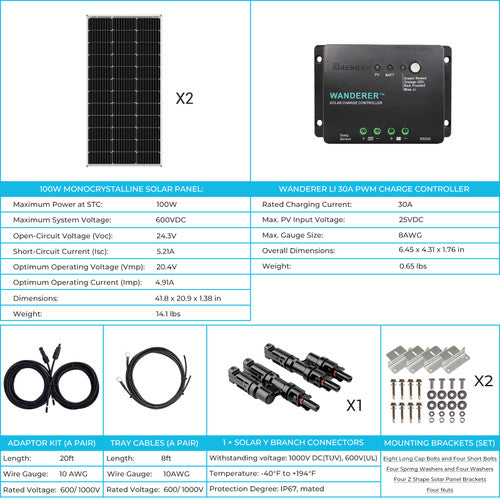

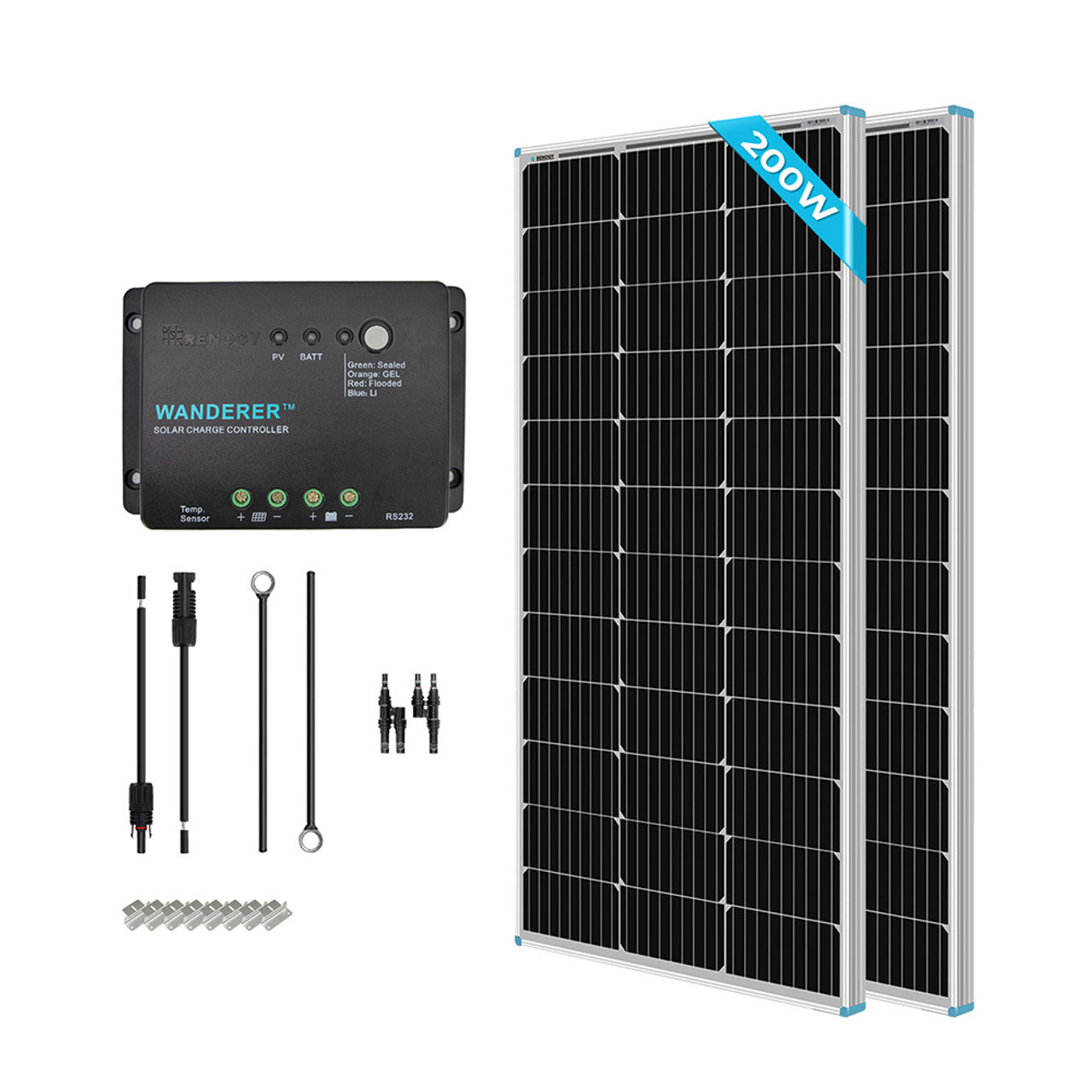

What's in the Box:
2 x 100W Mono Panel
1 x Solar Y Branch Connectors
2 x Mounting Z Brackets
1 x Renogy 20ft 10AWG Solar Adaptor Kit (A pair)
1 x Renogy 8ft 10AWG Tray Cables (A pair)
1 x Renogy Wanderer Li 30A PWM Charge Controller
This Renogy 200 Watt 12 Volt Starter Kit is perfect for beginners wanting to use solar energy in small off-grid setups like RVs, boats, cabins, or sheds. It comes with two 100W monocrystalline solar panels for efficient power generation. The panels are corrosion-resistant with an aluminum frame. The kit also includes a 30A PWM charge controller to protect batteries and has an LCD display for easy monitoring. It's expandable up to 400W in the future. Installation is straightforward as it includes all necessary mounting hardware and pre-drilled holes on the panels. The 100W monocrystalline solar panel has a Max Power at STC of 100W, an Open-Circuit Voltage (Voc) of 24.3V, and weighs 14.1lb (6.4kg) with dimensions of 41.8*20.9*1.38in(1062x530x35mm). The Wanderer Li 30A PWM Charge Controller has a Nominal Voltage of 12V and a Rated Charge Current of 30A.
