Renogy 200 Watt 12 Volt Solar RV Kit

Renogy 200W 12V Solar Power Kit for RVs

Get ready for your off-grid adventures with the Renogy 200W 12V Solar Power Kit! This all-in-one solution is perfect for RVers and campers who want a reliable source of power on the go.

Key Features:

• • High-efficiency 200W solar power generation
• • Durable and weather-resistant panels
• • Easy installation with included hardware

Benefits:

• • Stay powered even in remote locations
• • Expandable system for future needs
• • Peace of mind with a 25-year panel warranty

Technical Specs:

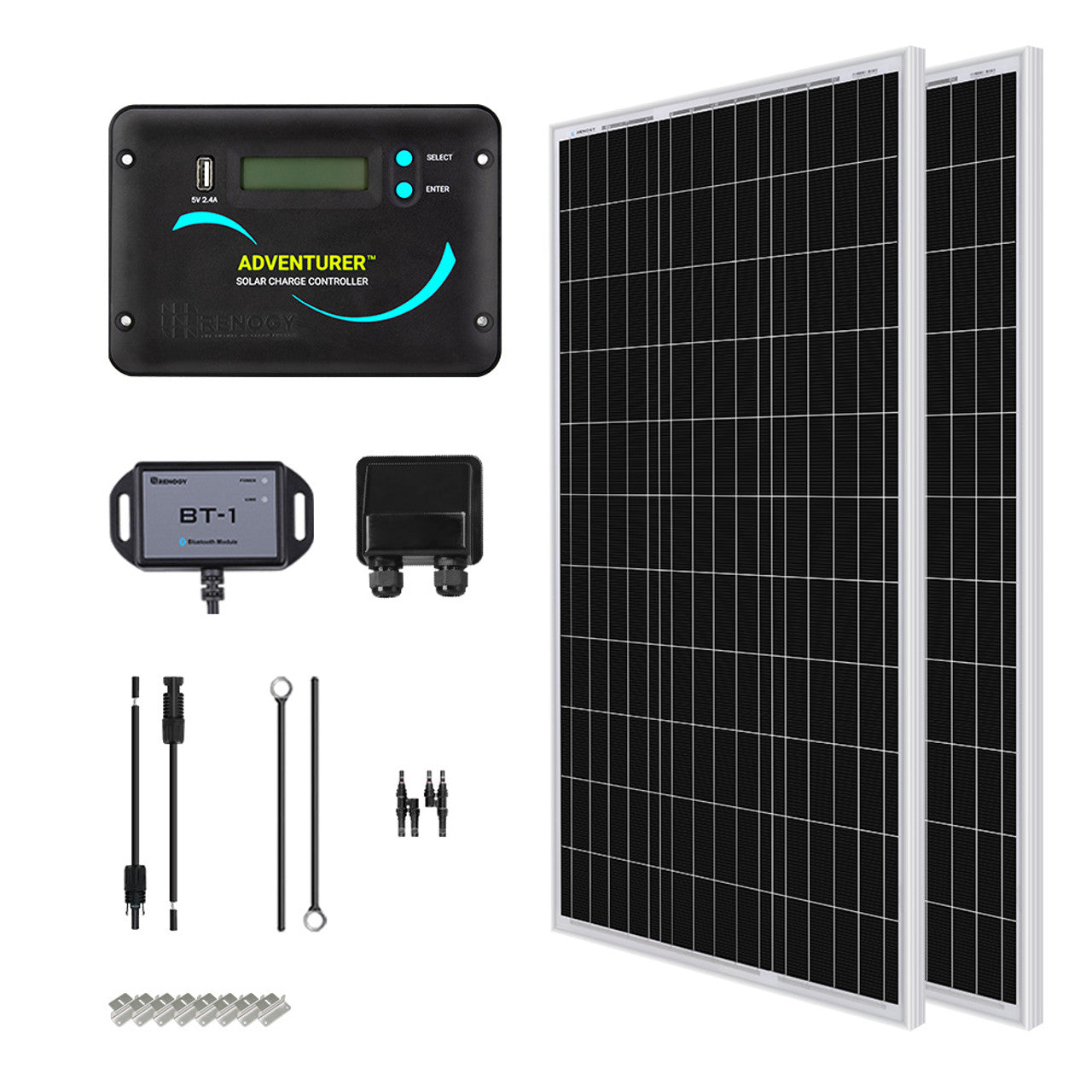

• • Two 100W monocrystalline solar panels
• • 30A PWM charge controller with LCD display

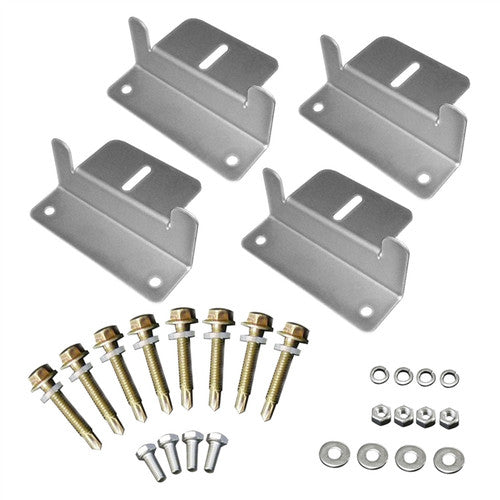

• • Z-brackets, cable entry housing, and all necessary mounting hardware included

This Renogy 200 Watt 12 Volt Solar RV Kit is designed for RVs, campers, and off-grid use. It comes with two 100W monocrystalline solar panels, a 30A PWM charge controller, and all the necessary hardware for installation. The panels are durable and weather-resistant, with a corrosion-resistant aluminum frame. The kit is expandable, allowing you to add more panels as needed. The 100W monocrystalline solar panels have a maximum power of 100W, a maximum system voltage of 600V DC (UL), an open-circuit voltage (Voc) of 24.3V, a short-circuit current (Isc) of 5.21A, an optimum operating voltage (Vmp) of 20.4V, an optimum operating current (Imp) of 4.91A, a weight of 14.1lbs, and dimensions of 41.8 x 20.9 x1.4 in. The Renogy Adventurer - 30A PWM Negative-Ground Charge Controller has a nominal voltage of 12 VDC/ 24 VDC, a rated charge current of 30A, a max. PV input voltage of 50 VDC, and a max. PV input power of 12V(400W) / 24V(800W). The Renogy 16FT 10AWG Tray Cables have a length of 16ft, an AWG of 10, a rating voltage of 600V, and a temperature range of -40°F to +185°F. The Renogy 30FT 10AWG Solar Adaptor Kit has a length of 30ft, an AWG of 10, a rating voltage of 600/1000V, and a temperature range of -40°F to +185°F. The Renogy BT-1 Bluetooth Module has an input voltage of 5V-12V, a communication range of ≤15m, dimensions of 2.6 X 2.01 X 0.61 In, and a weight of 120 g (4.2oz). The Renogy Solar Y Branch Connectors have a withstand voltage of 1000V DC(TUV), 600V(UL), a protection degree of IP67, mated, a wiring size range of 10, 12, 14 AW, and a temperature range of -40°F to +194°F. The Renogy Cable Entry Housing is made of UV-resistant ABS Plastic, has a weight of 7.9 oz., a recommended adhesive of Sikaflex 252 or alike, dimensions of 4.7 x 3.9 x 2.0 in, and a cable gland diameter range of 6mm – 12mm. The Mounting Z Brackets set includes eight long cap bolts, four short bolts, four spring washers, four washers, four Z shape solar panel brackets, and four nuts. The panels come with a 25-year power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate and a 10-year material and workmanship warranty. Accessories have a 1-year material warranty. What's in the box: 2 x 100W Mono Solar Panel, 1 x Renogy Adventurer-30A PWM Charge Controller, 1 x Renogy Solar Y Branch Connectors, 1 x Renogy 30ft 10AWG Solar Adaptor Kit, 1 x Cable Entry Housing, 1 x Renogy 16ft 10AWG Tray Cables, 2 x Mounting Z Brackets, 1 x Renogy BT-1 Bluetooth Module
