EcoFlow Advanced Modular Power Station: Your Ultimate 4kWh RV and Tiny Home Power Solution
Discover the world's first fully modular power system designed specifically for RVs and tiny homes! The EcoFlow 4kWh Power Kit is a plug-and-play solution for all your power needs.
Main features:
- Plug and Play: Effortlessly set up and customize your power solution with expandable battery banks, solar panels, and accessories.
- Fast & Multiple Charging: Charge quickly with up to 4800W of solar, 1000W from your alternator, or 3000W from shore power. Smart generators provide emergency backup.
- Advanced 48V System: More efficient than traditional 12V systems, with built-in protection and balanced power draw.
The Ultimate Plug and Play Solution
Once set up, the EcoFlow Power Kit is easy to use with expandable components. No need to be an electrician - it's perfect for DIY enthusiasts.
Enjoy a hassle-free DIY experience with instant deployment. Spend more time using your electronics.
Fast & Multiple Charging
Stay powered on the go! Charge with solar, alternator, or shore power. Smart generators offer backup when needed.
Advanced 48V System
The 48V design is more efficient, with less heat and power loss. Built-in protection keeps your LFP batteries safe.
Integrated & Compact
The Power Hub combines multiple components into one compact device, reducing wiring and installation headaches.
Expandable
Massively expandable with up to 3 LFP batteries in parallel, offering 2kWh - 15kWh of energy storage options.
Configurations Available
2kWh - 1 x 2kWh LFP battery
4kWh - 2 x 2kWh LFP battery
5kWh - 1 x 5kWh LFP battery
10kWh - 2x 5kWh LFP battery
15kWh - 3x 5kWh LFP battery
Monitor & Control
Control your power solution with the EcoFlow App. Monitor consumption and optimize settings for any power need.
Configurations Available

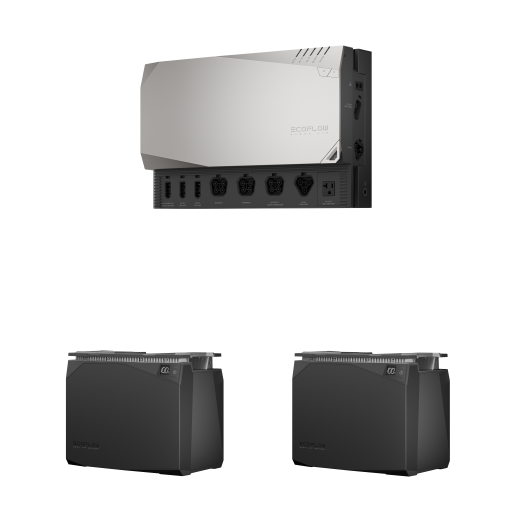

Get Set Kit Includes: Battery + Power Hub + Cable Pack

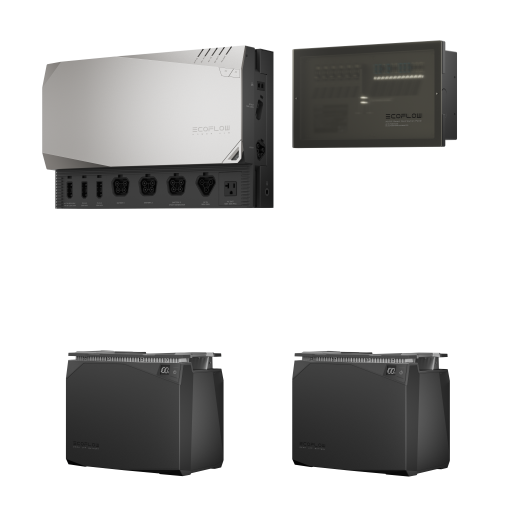

Prepared Kit Includes: Battery + Power Hub + Cable Pack + Smart Distribution Panel + Mounting Strap

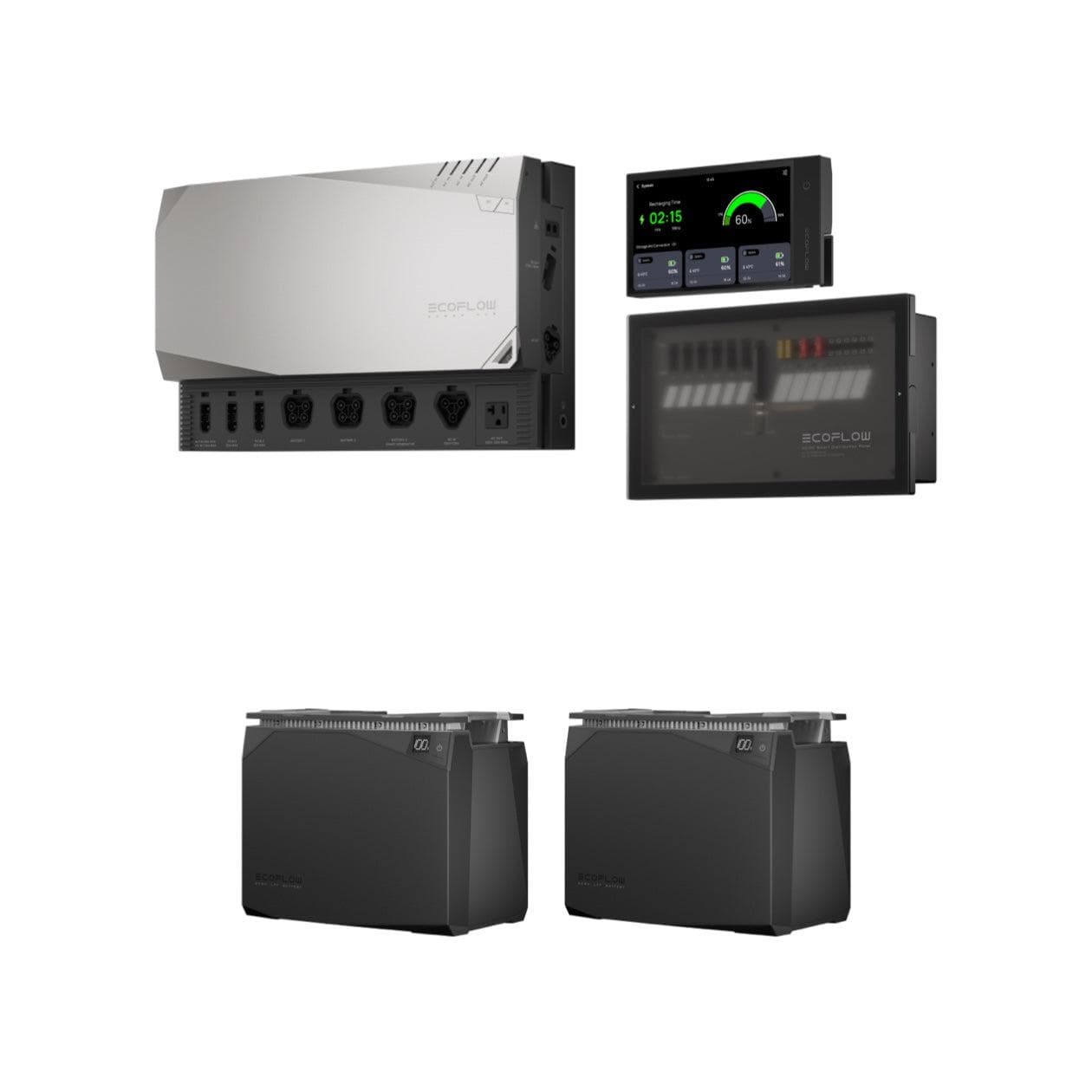

Independence Kit Includes: Battery + Power Hub + Cable Pack + Smart Distribution Panel + Mounting Strap + Monitor + Smart Generator
/mceItemMediaService
- 1x EcoFlow Power Hub
- 2x 2kWh LFP Battery
- 1x Cable Pack
- 1x Smart Distribution Panel (Only with Prepared and Independence Kits)
- 1x Mounting Strap (Only with Prepared and Independence Kits)
- 1x Monitor (Only with Independence Kit)
- 1x Smart Generator (Only with Independence Kit)
- Warranty:
5-year warranty on all Power Kit Components, Cables and Accesories have 1-year warranty
Capacity:
4 kWh
Power Hub:
Net Weight - 31 lbs.
Dimensions (in.) - 11.8 x 18.9 x 5.5 (HxWxD)
AC Main Output/Frequency - Pure Sine Wave, 3600W (Surge 7200W), 120V, 50Hz/60Hz
DC Main Output - 13.6V/70A 1000W Max; 26.4V/60A 1600W Max
AC Main Input - X-Stream Fast Charging 3000W Max, 30A Max
AC Main Input Voltage/Frequency - 100-120V, 50Hz/60Hz
Solar Charging Input - 15-150V 30A, 1600W Max
Alternator Charging Input - 13V-60V, 60A, 1000W Max
Operating Temperature - -13°F - 140°F
Discharge Temperature - -13°F - 140°F
Charge Temperature - -13°F - 140°F
Storage Temperature - -13°F - 140°F
Tests and Certifications - UL Standard, FCC, ICES
Wi-Fi - Yes
Bluetooth - Yes
Mobile App - Yes
2kWh LFP Battery:
Capacity - 2048Wh (51.2V, 40Ah)
Cell Chemistry - Lithium Iron Phosphate
Cycle Life - ~3000 Cycles up to 80% Capacity
Net Weight - 37 lbs
Dimension (in.) - 11.2 x 13.7 x 7.8 (HxWxD)
Protection Level - IP54
Tests and Certifications - UL Standard, FCC, CE, E-Mark, UKCA, UN38.3, RCM, PSE
Storage Temperature - -4°F - 140°F
Operating Temperature - -4°F - 140°F
Power Kit Console:
Touch Screen (Diagonal Measurement) - 7 inch (6 x 3.4 in.) (WxH)
Power Supply Voltage - 12 VDC
Operating Temperature - -4°F - 140°F
Dimension (inch) - 4.5 x 8 x 0.9 in. (HxWxD)
Net Weight - 1 lb
Tests and Certifications - UL Standard, FCC, ICES, CE, UKCA, E-Mark, RCM, TELEC, KCC
AC/DC Smart Distribution Panel:
AC Main Input - 30A Max, 120V, 3600W
DC Main Input - 70A Max
AC Output - 6 AC Positions, 20A Max each
DC Output - 12 Fused DC Positions (6 Positions controllable via Power Kit Console and App)
Dimensions - 8.3 x 13.9 x 3.9 in. (HxWxD)
Net Weight - 5.7 lbs
Protection Level - IP21
Operating Temperature - -13°F - 140°F
Tests and Certifications - UL Standard, FCC, PSE
Smart Generator:
Dimensions - 23.5 x 11.7 x 18.7 in (HxWxD)
Weight - 62.8 lbs
Type - Inverter generator
Frequency - 60Hz
Rated Voltage - 100~120V/200~240V
Rated Power - 1800W (1900W peak)
DC Output Voltage - 42-58.8V
DC Current - 32A Max
Engine Specs
Model - R80-i
Type - Single cylinder, four-stroke, forced-air cooling, overhead value
Displacement - 79.7cc
Fuel Type - Unleaded gasoline
Fuel Tank Capacity - 4 L / 1.05 gal.
Engine Oil Capacity - 0.38 L / 0.1 gal.
Noise Level (at a 7m distance) - 56~67dB (full load)
Continuous Working Time - 3.5 hrs (full load)
Number of outlets - 4 nominal, 1 30A
Wave Portable AC Unit:
Net weight - 38.58 lbs
Dimensions - 20.39 x 12.2 x 16.38 in (HxWxD)
Wi-Fi - Yes
Bluetooth - Yes
AC Input Voltage/Frequency - 115V 60Hz
AC Input Power - Max 700W
Add-On Battery Power - Max 600W
Solar Charging Input - 11-35V Max 12A Max 200W
Car Charging Input - 12 V/24V Max 8A Max 200W
Ambient Temperature - 5°C ~ 50°C (41°F ~ 122°F)
Cooling Temperature Settings - 16°C ~ 30°C (60.8°F ~ 86°F)
Cooling Capacity - 1200W
Circulation Air Volume - 290m'3'/h
Refrigerant/Amount - R134a/14.1oz
Rated Cooling Power (AC/DC) - 460W/410W
Max. Cooling Power - 600W
Noise - <55dB
No-Drain Function - Yes
Shut Down When Full Function - Yes
