Power Your Life Off-Grid!
Discover the ultimate off-grid power solution with our Acopower 800W Solar RV Kit. This versatile kit is perfect for RVs, cabins, homes, boats, and remote locations. It provides reliable power for all your needs.
Key Features:
- • High-Efficiency MPPT Controller: The 60A MPPT Charge controller ensures rapid, efficient, and safe battery charging with a peak conversion efficiency of 98% and a high Tracking efficiency of 99%.
- • High-Capacity Li-Battery Packs: Equipped with 2pcs 100Ah lithium batteries, offering superior charging/discharging efficiency and over 3000 deep cycles.
- • Complete DIY Kit: Comes with everything you need, including 8pcs 100W Polycrystalline Solar Panels, 2pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller, and more.
Technical Specifications:

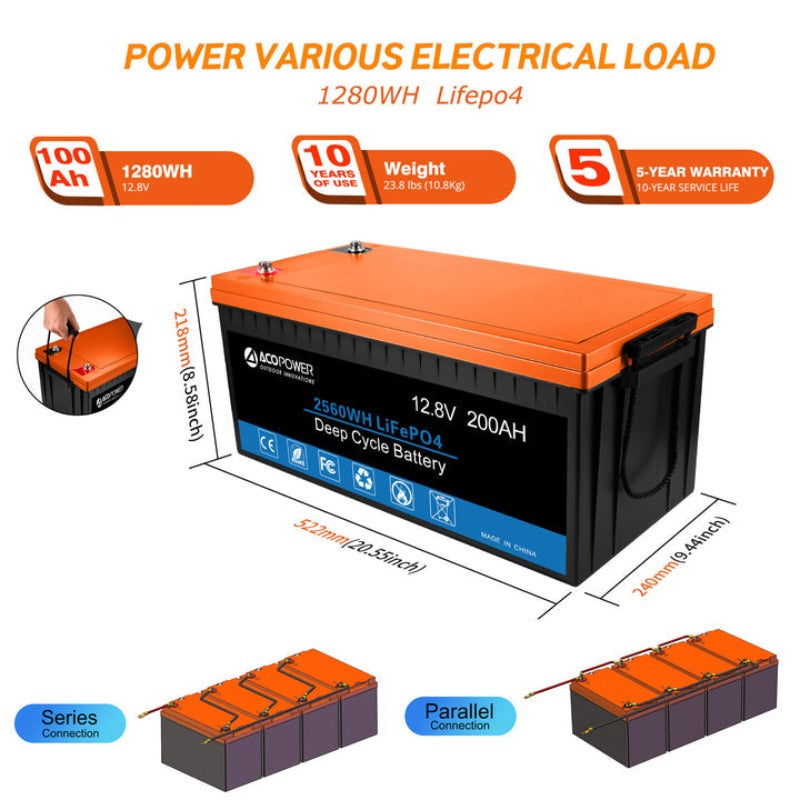

12V 200Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V, Charge voltage: 14.2 - 14.6V, Battery Capacity:2560WH, Depth of Discharge (DoD): 100%, Standard charge current: 50A, Max continuous charge current: 100A, Max continuous discharge current: 200A, dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch, Approx. Weight: 48.94lb

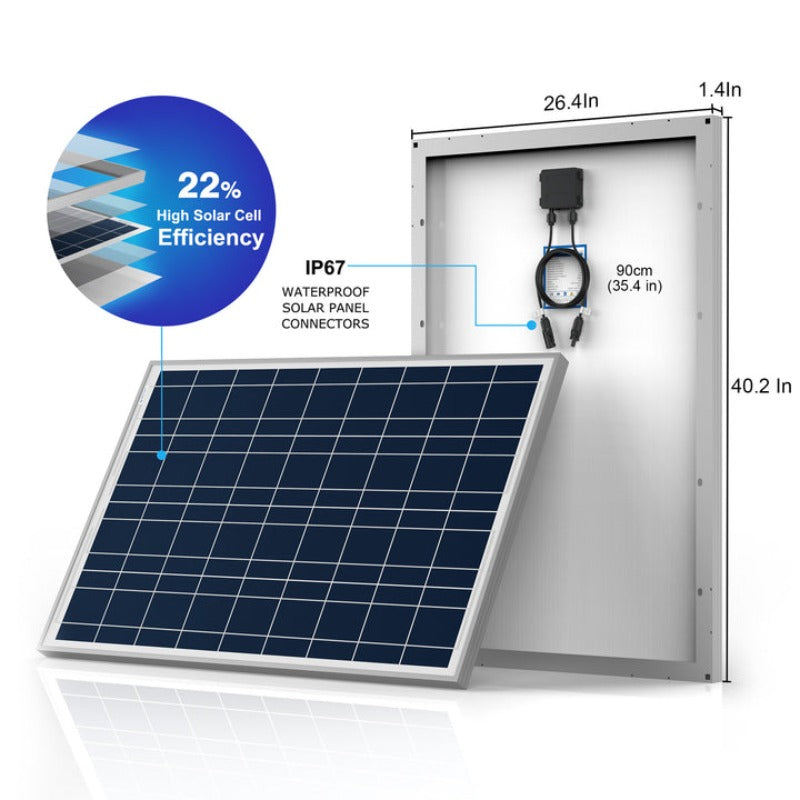

100W Poly Solar Panel
Nominal for 12V battery charger, Peak Power (Pmax):100W, Peak Circuit Voltage(Voc):22V, Max Power Voltage(Vmp):17.48V, Short Circuit Current(Isc):6.21A, Max Power Current(Imp):5.72A, Weight:17.6lb, Dimension:40.2*26.4*1.4 Inch, Application Class: Class A

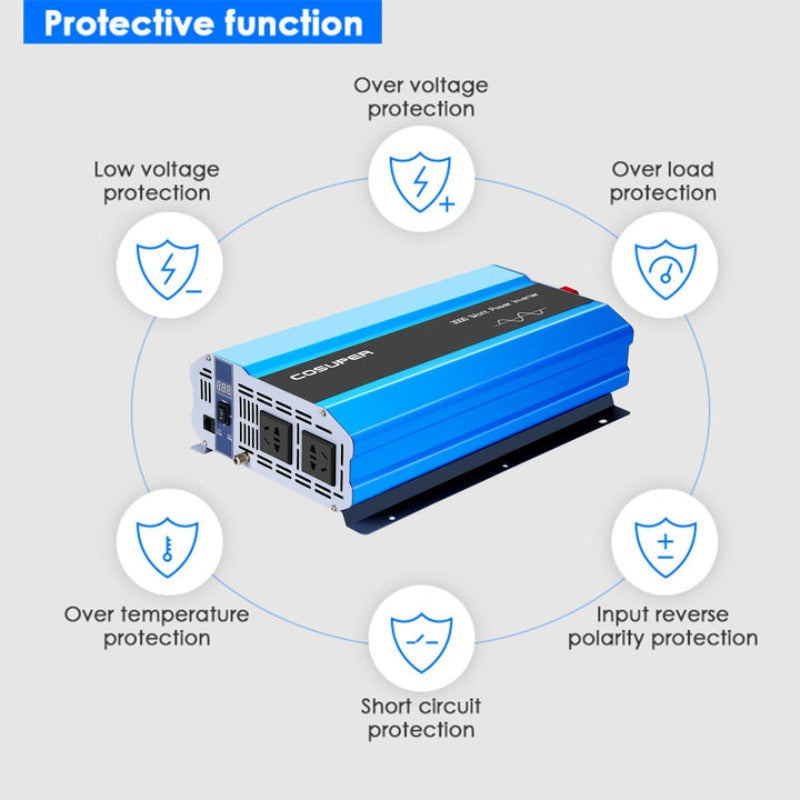

3000W Pure Sine Wave Inverter
Continuous output 3000W, Surge Power 6000W, Wave Form: Pure Sine Wave, Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection, Weight: 12.1lb, Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

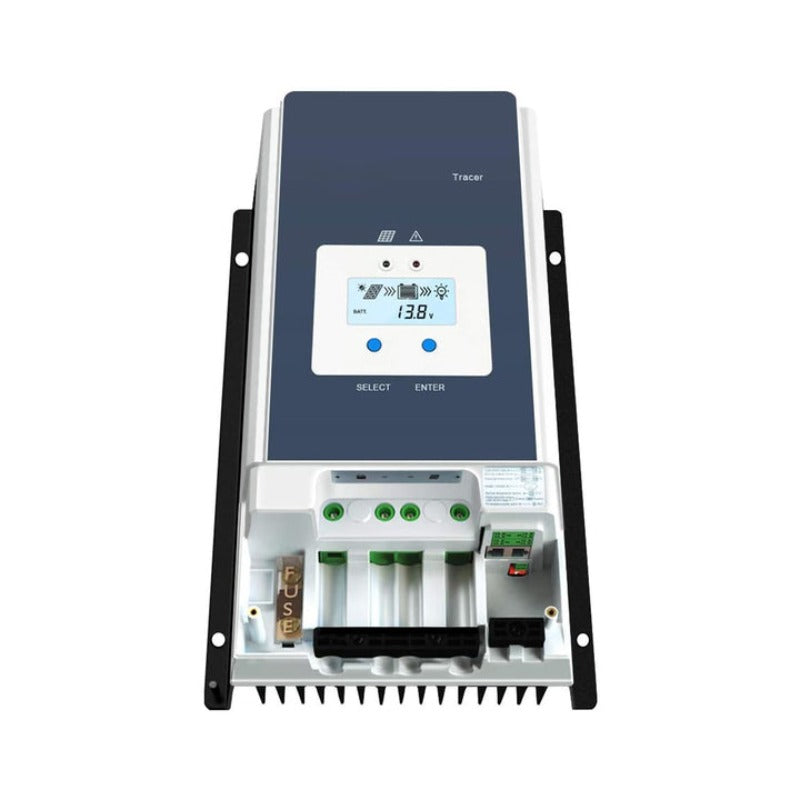

MPPT Solar Charge Controller 60A
Rated charge current: 60A, Battery voltage range: 8V~68V, Max.PV open circuit voltage: 150V, Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W, Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

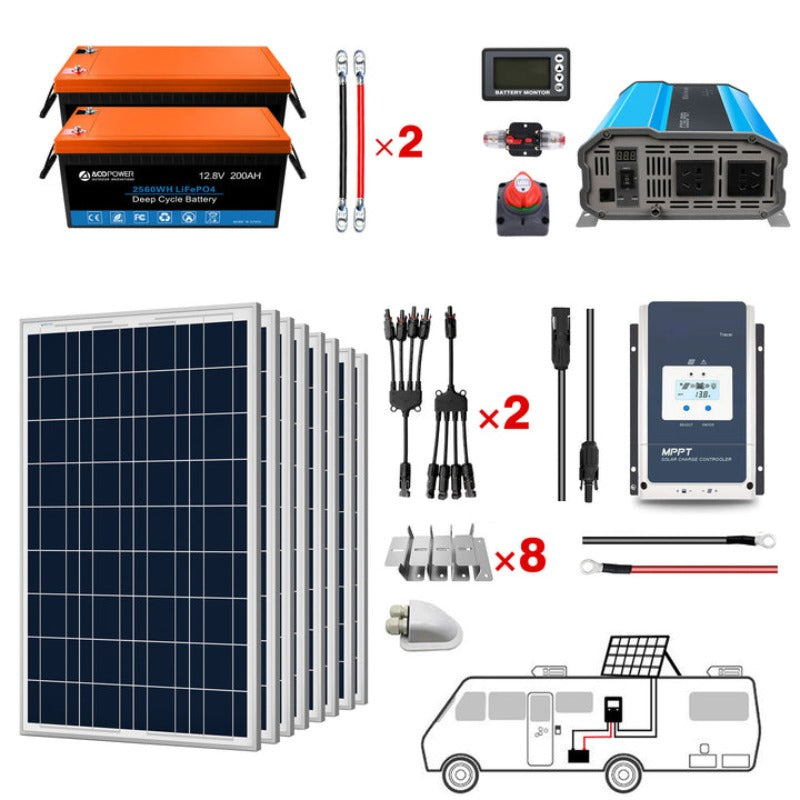

What's in the Box:
2 x Battery, 8 x 100W Solar Panel, 1 x 3K Inverter, 1 x 50A Controller, 1 x Monitor, 1 x Switch, 1 x 60A Fuse, 5 x sets z Brackets, 2 x Pairs Battery Cable
This Acopower 800W Solar RV Kit is designed for off-grid use in RVs, cabins, homes, boats, or remote locations. It comes with 8 100W polycrystalline solar panels, 2 100Ah LiFePO4 deep cycle lithium batteries, a 1500W DC to AC power inverter, a 60 amp MPPT solar charge controller, and all necessary cables and brackets. The 12V 200Ah LiFePO4 battery has a rated voltage of 12.8V, weighs about 48.94lb, and measures 20.55 x 9.44 (W) x 8.58 (H) inches. The 100W poly solar panel is for 12V battery charging, weighs 17.6lb, and measures 40.2*26.4*1.4 inches. The 3000W pure sine wave inverter has a continuous output of 3000W and weighs 12.1lb, measuring 18.23(D) x 9.53(W) x 4.65(H) inches. The 60A MPPT solar charge controller is compatible with various battery types.
