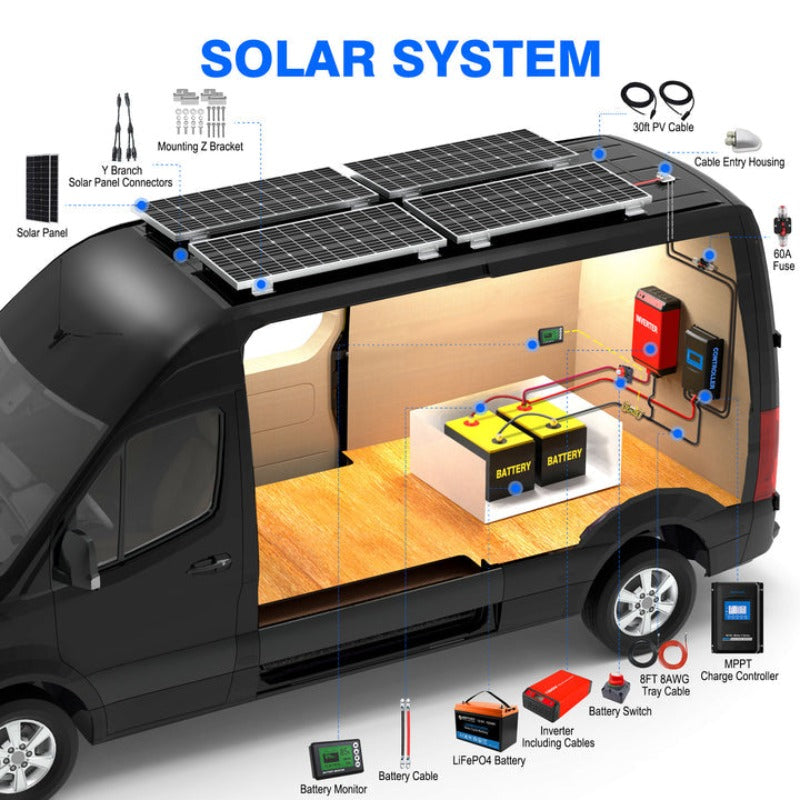

Powerful and Versatile Solar Solution
• Ideal for creating an off - grid power system for RVs, cabins, homes, and boats. Great for backup power or remote locations.
• The 3000 - watt Pure Sine Wave Inverter provides plenty of AC power (120VAC) to run household appliances.
• Tailored to meet your energy needs for moderate use.
Efficient MPPT Controller
• The 40A MPPT Charge controller has a peak conversion efficiency of 98% and a high Tracking efficiency of 99%.
• With a 4 - stage battery charging process, it charges your battery quickly, efficiently, and safely.
• Depending on sunlight, solar charging between 500W can yield about 960Wh - 3840Wh (Watt - hour) or 80Ah - 320Ah (Ampere - Hour) of charge per day.
High - Capacity Li - Battery Packs
• Comes with 2pcs 100Ah lithium batteries with 2560Wh - 3840Wh capacity, offering excellent charging/discharging efficiency.
• Endures over 3000 deep cycles, outperforming lead - acid batteries.
• The built - in BMS and 40A MPPT solar charge controller ensure double protection for the lithium battery.
Ready for Installation

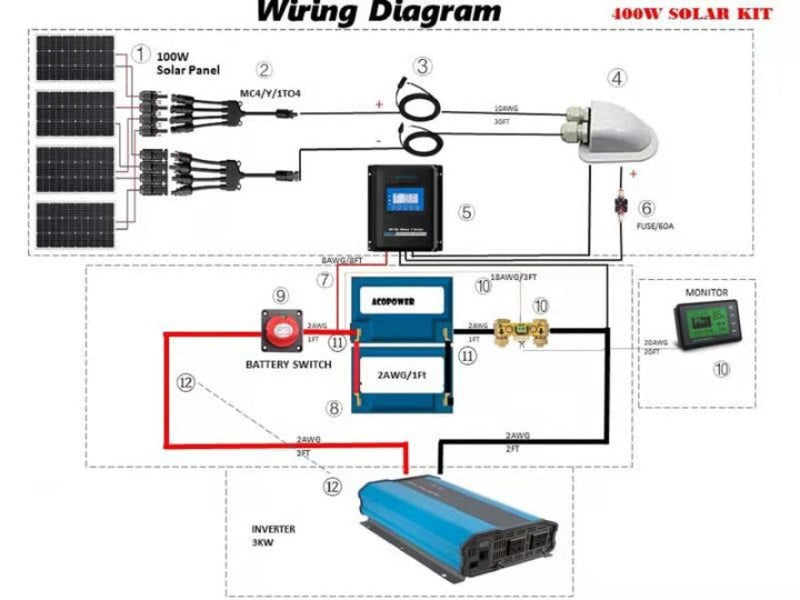

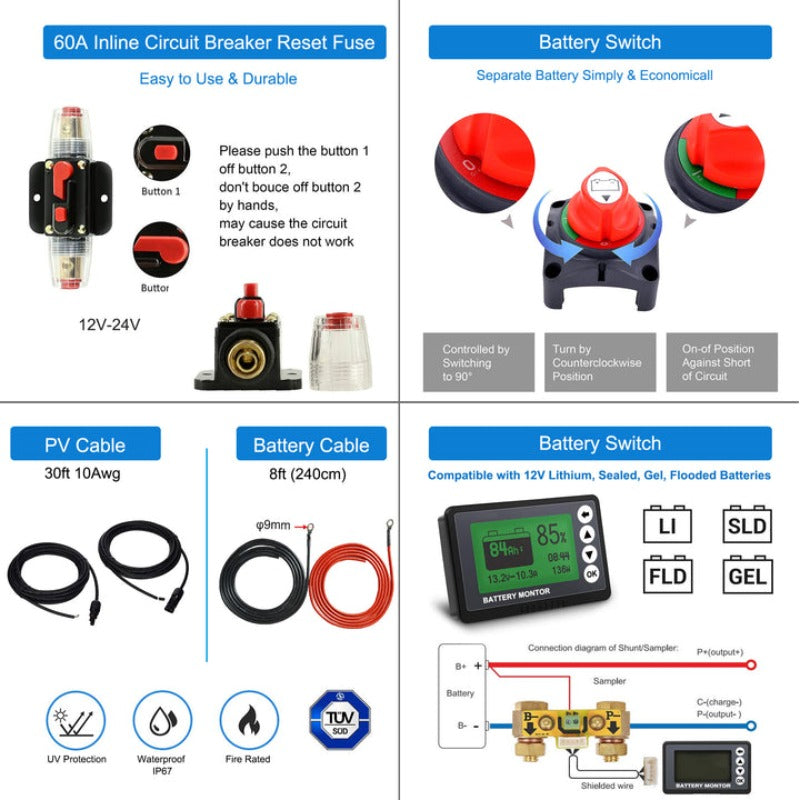

This all - in - one kit has everything you need to set up your solar charge system. It includes 5pcs 100 Watt Polycrystalline Solar Panels, 2pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built - in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 60A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.
Specifications

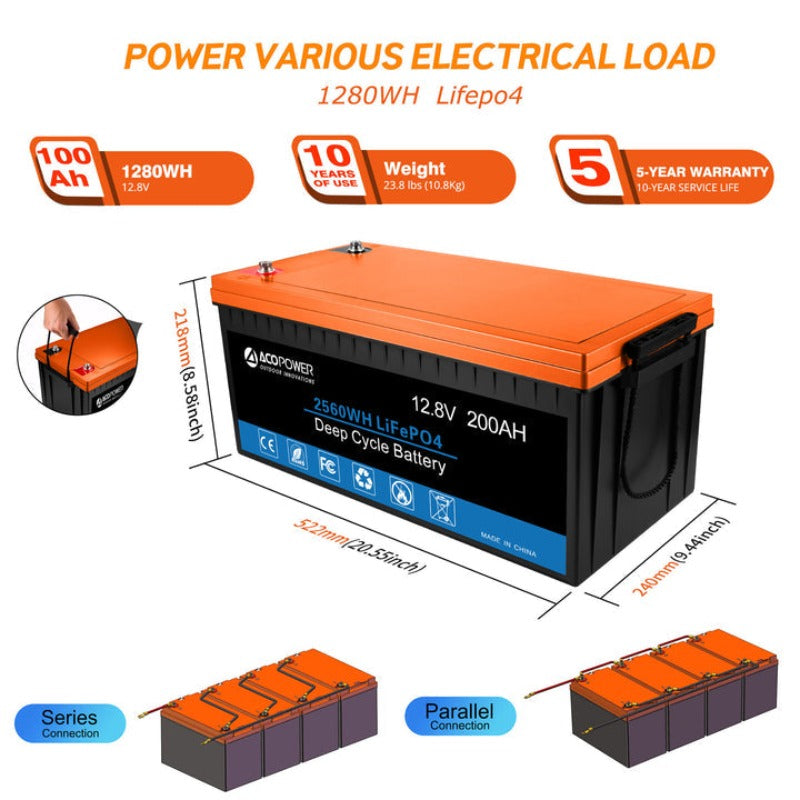

12V 200Ah LiFePO4 Deep Cycle Lithium Battery
- Rated voltage 12.8V
- Charge voltage: 14.2 - 14.6V
- Battery Capacity:2560WH
- Depth of Discharge (DoD): 100%
- Standard charge current: 50A
- Max continuous charge current: 100A
- Max continuous discharge current: 200A
- dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch;
- Approx. Weight: 48.94lb

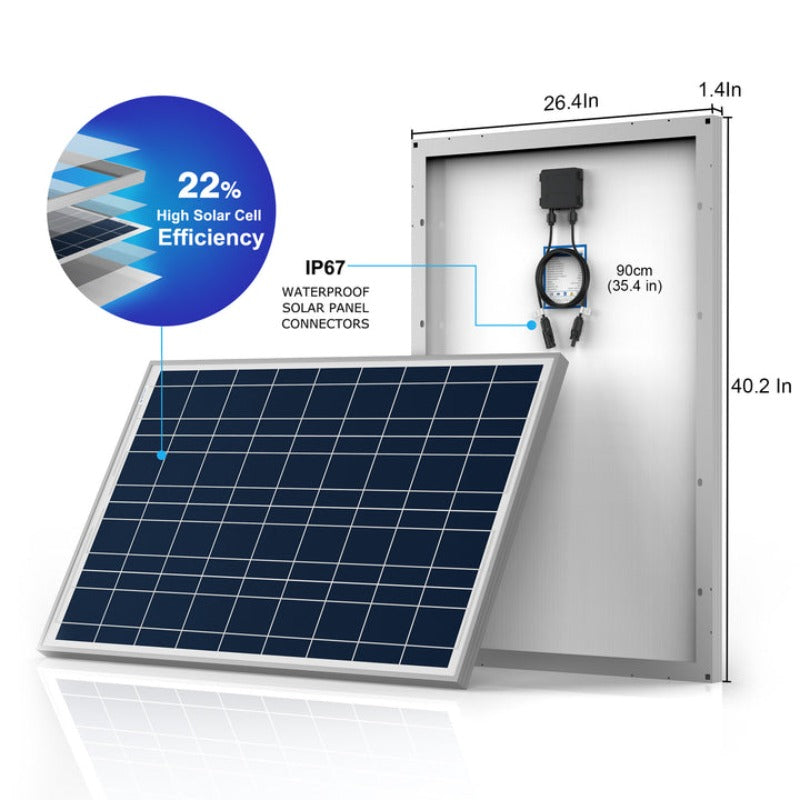

100W Poly Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.21A
- Max Power Current(Imp):5.72A
- Weight:17.6lb
- Dimension:40.2*26.4*1.4 Inch
- Application Class: Class A

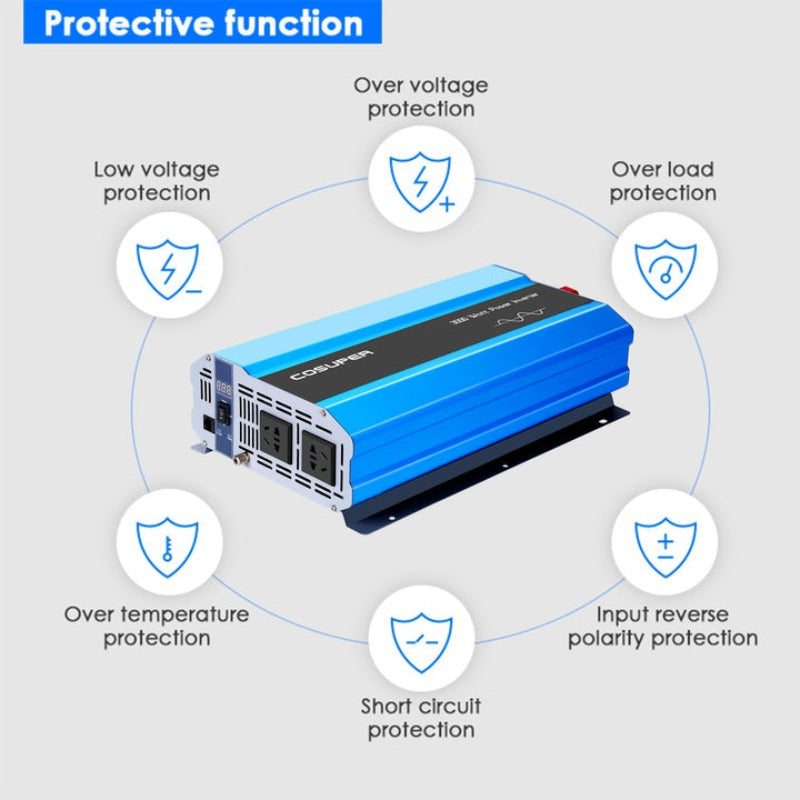

3000W Pure Sine Wave Inverter
- Continuous output 3000W
- Surge Power 6000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload
- Protection, Output short circuit protection
- Weight: 12.1lb
- Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

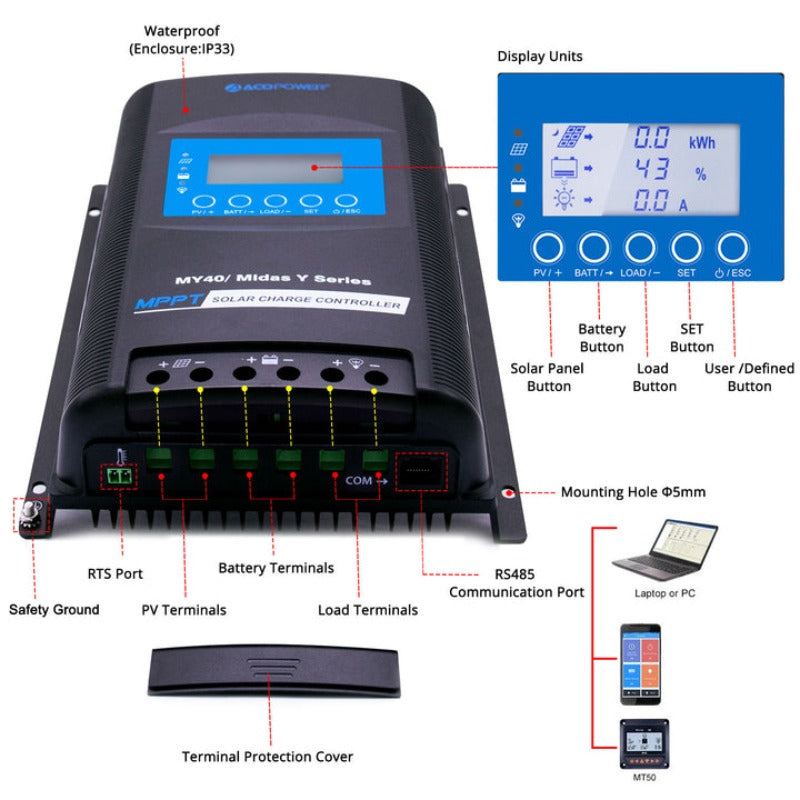

MPPT Solar Charge Controller 40A
- Rated charge current: 40A
- Battery voltage range: 8V~32V
- Max.PV open circuit voltage: 100VDC
- Max.PV input power: 12V/520W,24V/1040W
- Compatible with Various Deep Cycle Battery options: Sealed, Gel, Flooded and Lithium - ion. LiFePO4 Multiple Load Control Method.
What's in the Box:
2 x Battery
4 x 100W Solar Panel
1 x 3K Inverter
1 x 50A Controller
1 x Monitor
1 x Switch
1 x 40A Fuse
4 x sets z Brackets
2 x Pairs Battery Cable
This Acopower solar kit is perfect for those who want an off - grid power solution. Ideal for RVs, cabins, homes, and boats, it's also great as backup power or for remote locations. The kit includes 5pcs 100W polycrystalline solar panels, 2pcs 100Ah LiFePO4 deep cycle lithium batteries, a 1500W DC to AC power inverter, a 60A MPPT solar charge controller, and more. The 12V 200Ah LiFePO4 deep cycle lithium battery has a rated voltage of 12.8V, weighs about 48.94lb, and measures 20.55 x 9.44 (W) x 8.58 (H) inches. The 100W poly solar panel has a peak power of 100W, weighs 17.6lb, and measures 40.2*26.4*1.4 inches.
