Power Your Life Off-Grid with Ease
Discover the ultimate solution for off-grid living! Our Acopower 100W Polycrystalline Solar RV Kit is designed to meet the energy needs of RVs, cabins, homes, and boats. With its high-capacity lithium battery packs and efficient MPPT controller, you'll enjoy a reliable and consistent energy supply wherever you go.
Key Features:
- • Versatile Application: Perfect for establishing an off-grid 12-volt lithium battery solar panel system.
- • High-Capacity Li-Battery Packs: 2560Wh-3840Wh of 2 100Ah lithium batteries with higher charging/discharging efficiency and over 3000 deep cycles.
- • Efficient MPPT Controller: 50A MPPT charge controller with 98% peak conversion efficiency and 99% tracking efficiency.
What's Included:

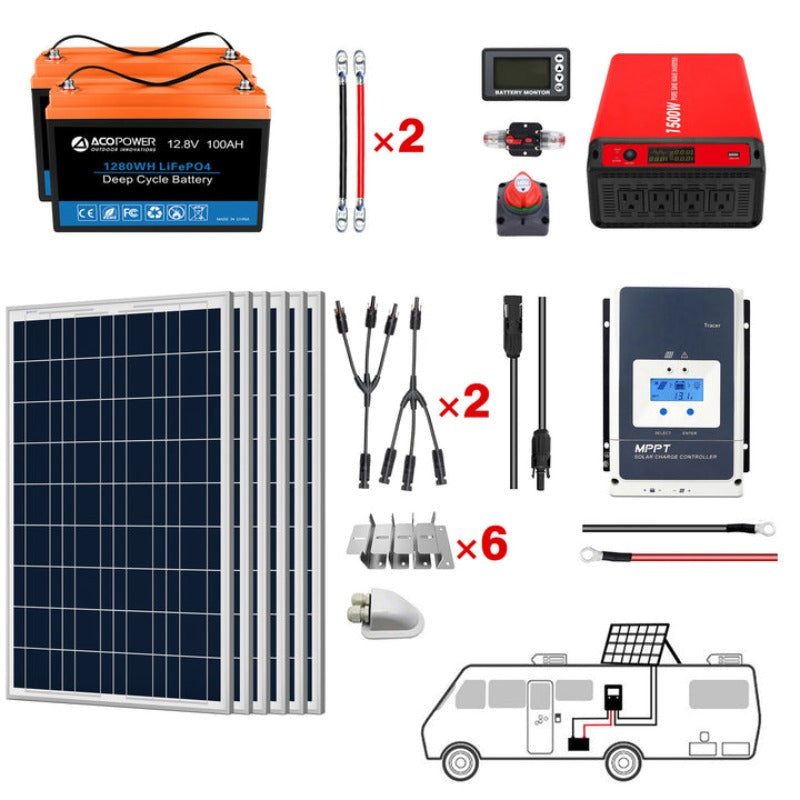

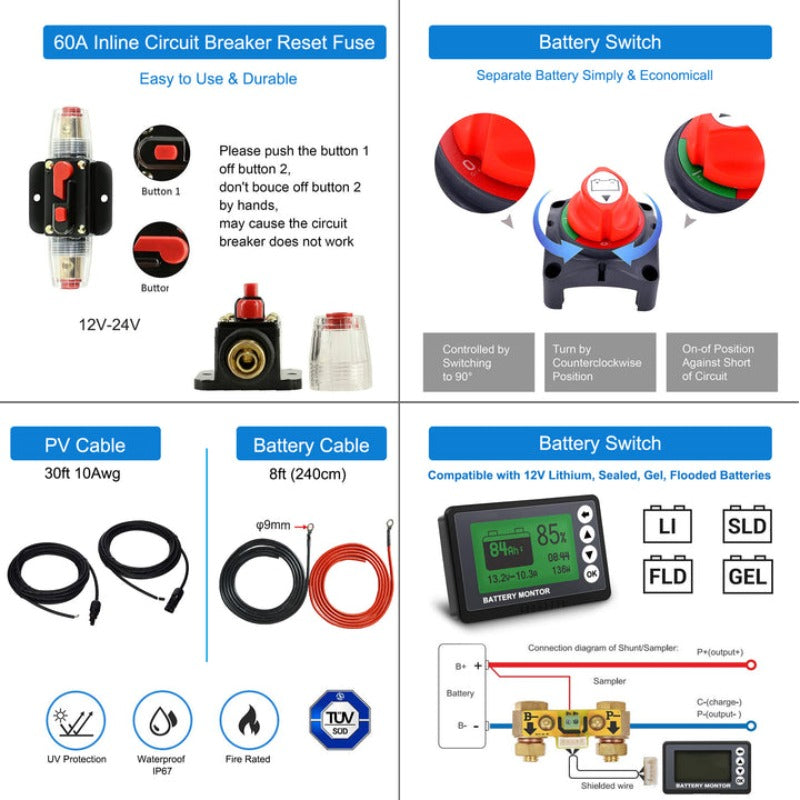

The kit includes 6pcs 100 Watt Polycrystalline Solar Panels, 3pcs 100Ah LiFePO4 Deep Cycle Lithium Batteries with Built-in 100A BMS, a 1500W DC to AC Power Inverter, a 60 amp MPPT Solar Charge Controller (with LCD Display), a 60A fuse, a battery switch, a battery monitor, and all the necessary cables and solar mounting Z brackets.
Technical Specifications:
12V 200Ah LiFePO4 Deep Cycle Lithium Battery
Rated voltage 12.8V, Charge voltage: 14.2 - 14.6V, Battery Capacity:2560WH, Depth of Discharge (DoD): 100%, Standard charge current: 50A, Max continuous charge current: 100A, Max continuous discharge current: 200A, dimension(inch):20.55 x 9.44 (W) x 8.58 (H) inch, Approx. Weight: 48.94lb

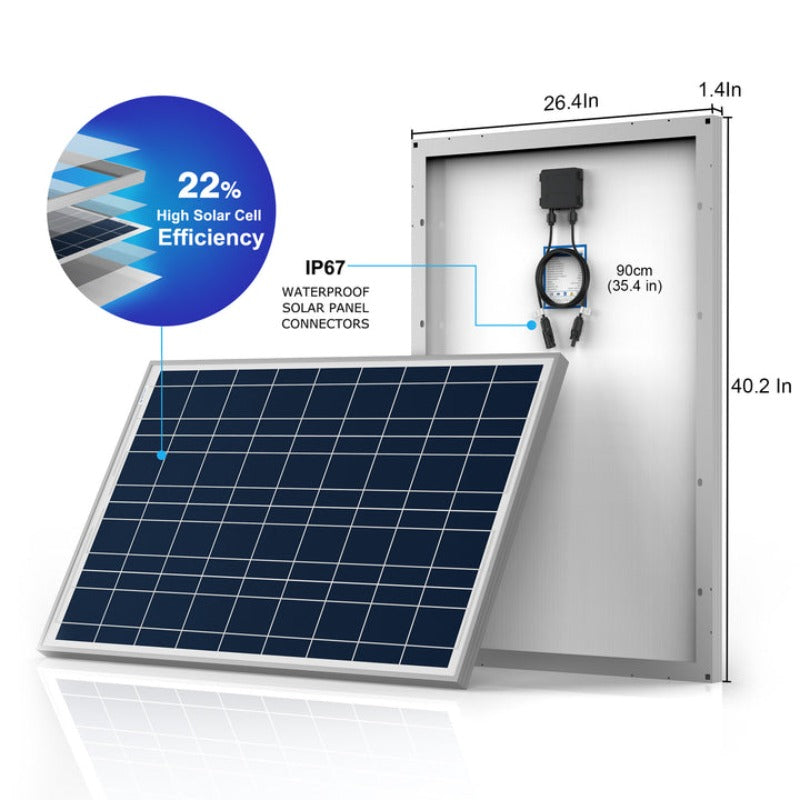

100W Poly Solar Panel
Nominal for 12V battery charger, Peak Power (Pmax):100W, Peak Circuit Voltage(Voc):22V, Max Power Voltage(Vmp):17.48V, Short Circuit Current(Isc):6.21A, Max Power Current(Imp):5.72A, Weight:17.6lb, Dimension:40.2*26.4*1.4 Inch, Application Class: Class A

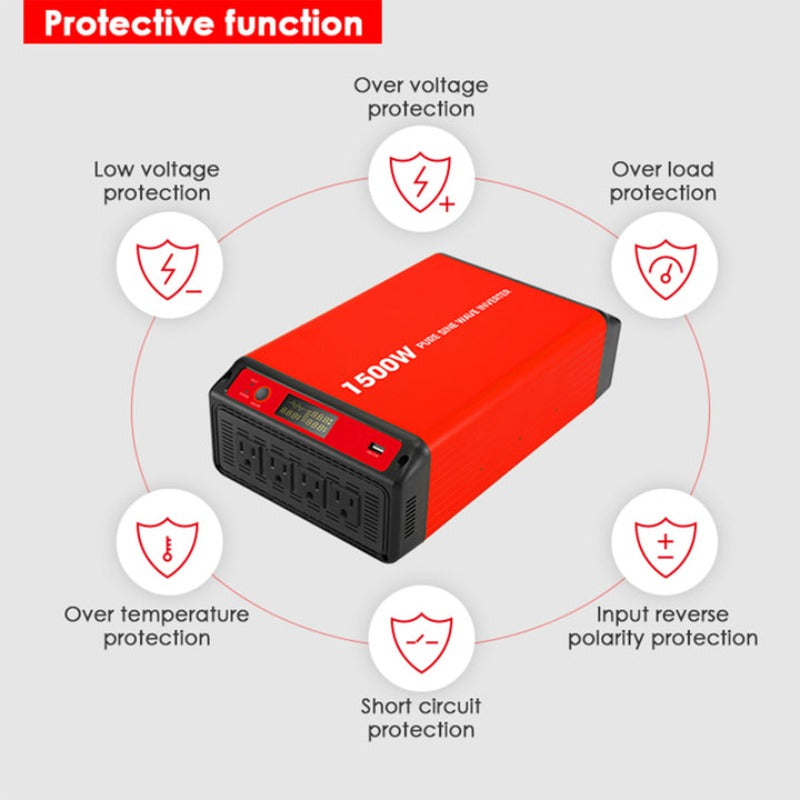

1500W Pure Sine Wave Inverter
Continuous output 1500W, Surge Power 3000W, Wave Form: Pure Sine Wave, Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection, Weight: 7.79lb, Dimension(inch): 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

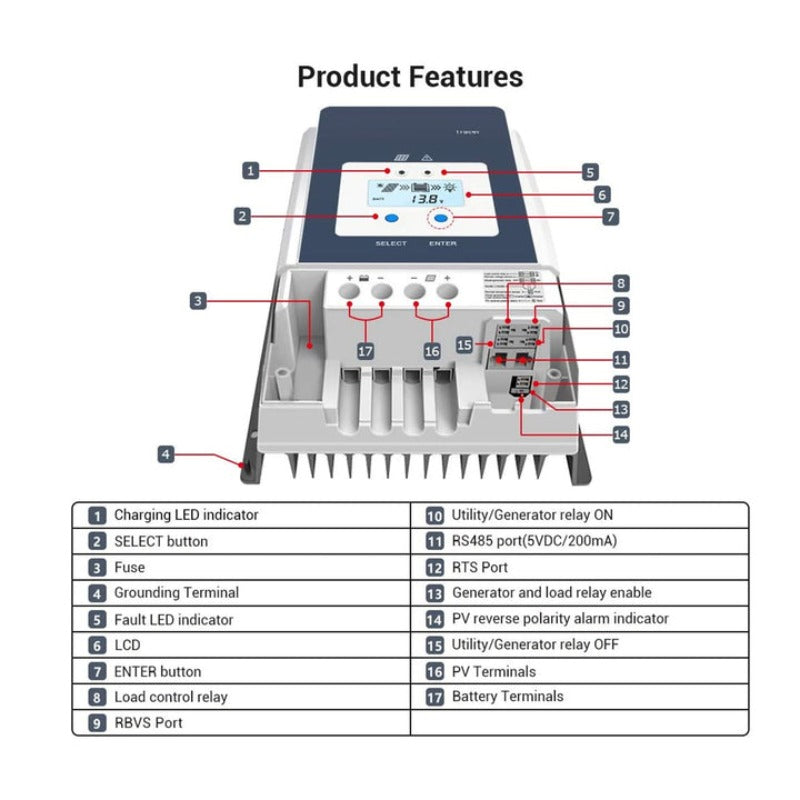

MPPT Solar Charge Controller 50A
Rated charge current: 50A, Battery voltage range: 8V~68V, Max.PV open circuit voltage: 150V, Max.PV input power: 12V/625W,24V/1250W,36V/1875W,48V/2500W, Compatible with Various Deep Cycle Battery options: Sealed(Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries

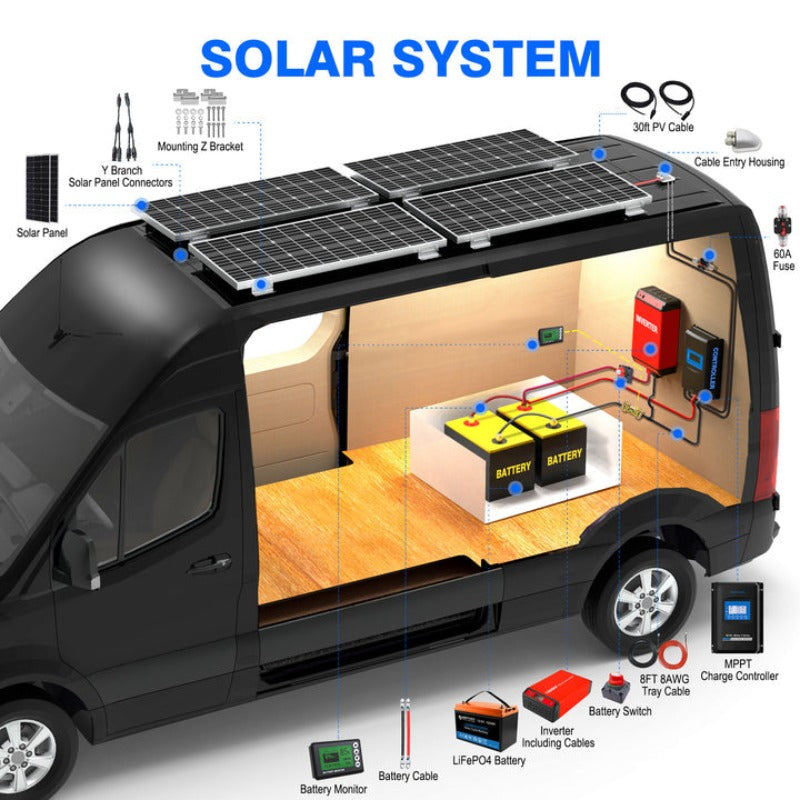

This Acopower solar kit is perfect for RV owners, cabin dwellers, homeowners, and boaters looking to go off-grid. It comes with everything you need to set up a 12-volt solar system, including 6 100W polycrystalline solar panels, 3 100Ah LiFePO4 deep cycle lithium batteries, a 1500W pure sine wave inverter, a 60A MPPT solar charge controller, and all necessary cables and brackets. The lithium batteries have a capacity of 2560-3840Wh and can endure over 3000 deep cycles. The MPPT charge controller has a peak conversion efficiency of 98% and a tracking efficiency of 99%. The 12V 200Ah LiFePO4 deep cycle lithium battery has a rated voltage of 12.8V, a charge voltage of 14.2 - 14.6V, and weighs approximately 48.94lb. The 100W poly solar panel has a peak power of 100W and weighs 17.6lb. The 1500W pure sine wave inverter has a continuous output of 1500W and weighs 7.79lb. The 50A MPPT solar charge controller has a rated charge current of 50A and is compatible with various battery types.
