Acopower 100W Mono RV System with 800ah Gel Battery
Introducing the Acopower 100W mono RV System with Gel Battery 800ah - the perfect power solution for your outdoor adventures!
• High-Efficiency Solar Panel: Our 100W monocrystalline solar panel captures sunlight and converts it into clean energy, ensuring you have power wherever you go. With its sleek design, it's built to withstand any weather condition.
• High-Capacity Gel Battery: The 800ah gel battery provides long-lasting power, keeping your appliances, electronics, and lights running for extended periods.
• Reliable Inverter: The 3kw inverter converts the battery power into 800 watts of continuous energy, perfect for charging laptops, powering kitchen appliances, or running your entertainment system.
Installation is easy with the included mounting brackets and cables. Simply set up the solar panel on your RV's roof or any sunny spot, connect the gel battery, and you're ready to go. Upgrade to the Acopower 100W mono RV System with Gel Battery 800ah and experience the freedom of off-grid power today!
- 8 x 100W Mono Solar Panel
- Solar charging provides about 3840 Watt Hours (Wh) or 320 Amp hours of charge per day (depends on sunlight availability)
- Perfect kit for an off-grid 12 volt battery system
- 3000 Watt Inverter
- Designed for RVs, cabins, homes, boats, back-up and remote power use
SPECIFICATIONS:
100W Monocrystalline Black Solar Panel
- Nominal for 12V battery charger
- Peak Power (Pmax):100W
- Peak Circuit Voltage(Voc):22V
- Max Power Voltage(Vmp):17.48V
- Short Circuit Current(Isc):6.14A
- Max Power Current(Imp):5.71A
- Weight:12.8 lb
- Dimension:40.2*20.1*1.4 Inch
- Application Class: Class A

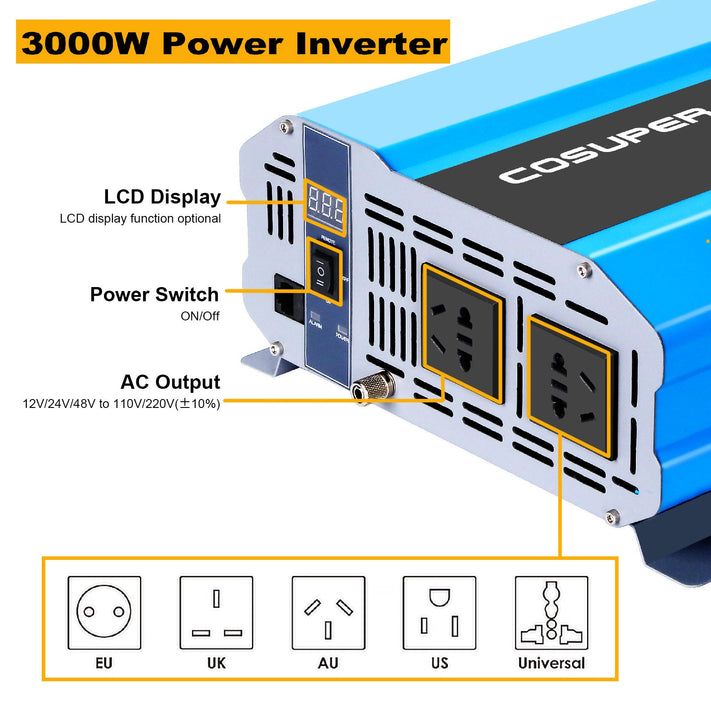

3000W Inverter 12VDC to 120VAC
- Continuous output 3000W
- Surge Power 6000W
- Wave Form: Pure Sine Wave
- Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
- Weight: 12.1lb
- Dimension(inch): 18.23(D) x 9.53(W) x 4.65(H) inch

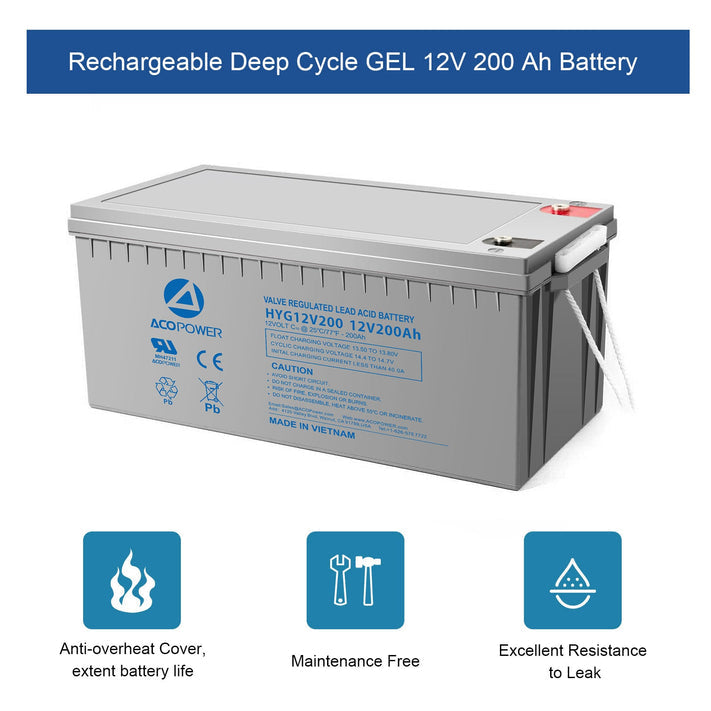

12V 200 Ah Rechargeable Deep Cycle GEL Battery
- Nominal Voltage 12V
- Rated capacity (10 hour rate): 200Ah
- dimension(inch):20.55x 9.37 (W) x 8.58 (H) inch; Total Height: 8.74inch
- Approx. Weight: 62.5kg(137.5lbs)¡À3%

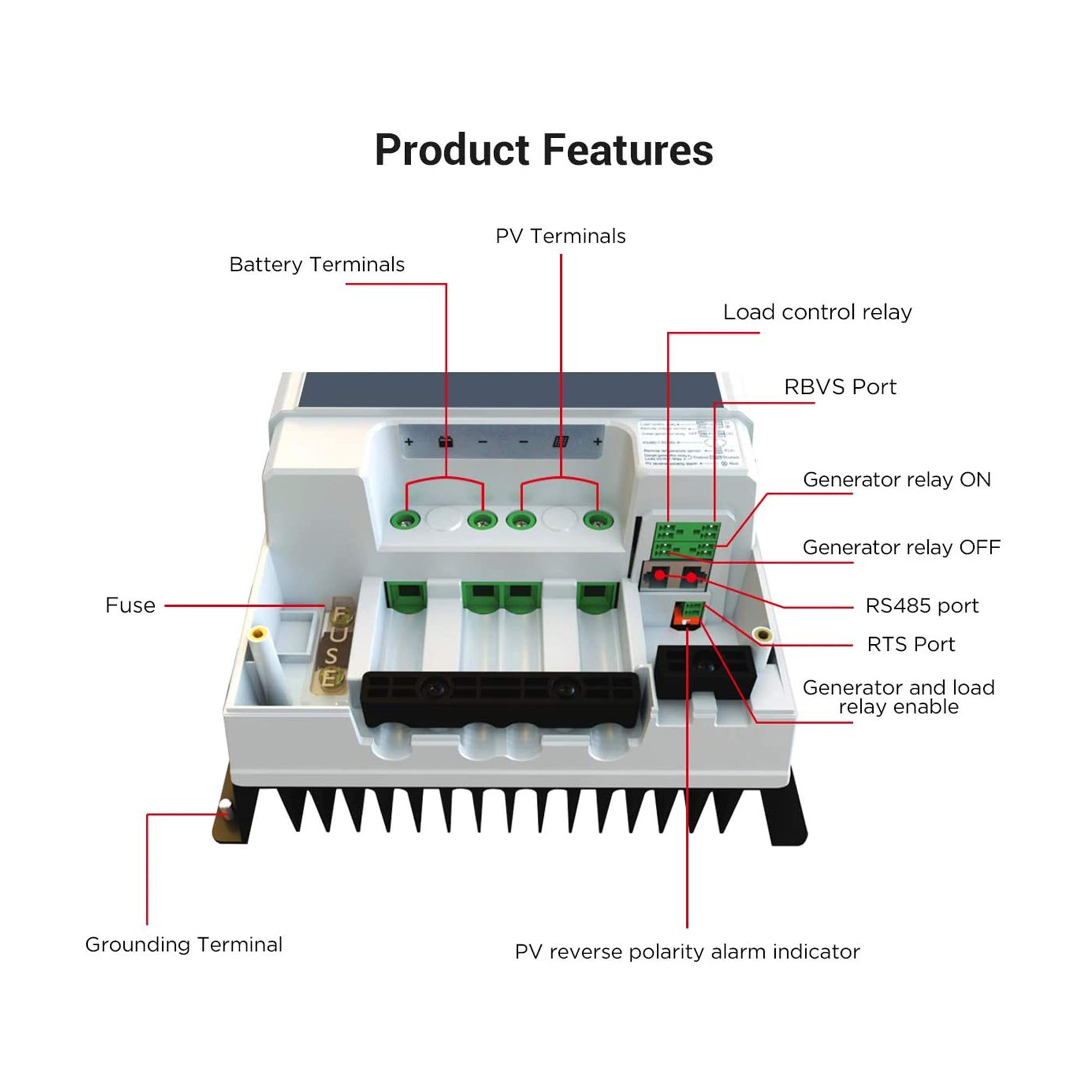

MPPT 60A Charge Controller
- Rated charge current: 60A
- Battery voltage range: 8V~68V
- Max.PV open circuit voltage: 150V
- Max.PV input power: 12V/750W,24V/1500W,36V/2250W,48V/3000W
- Common positive grounding design
- Compatible with Various Deep Cycle Battery options: Sealed (Defalut)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries.

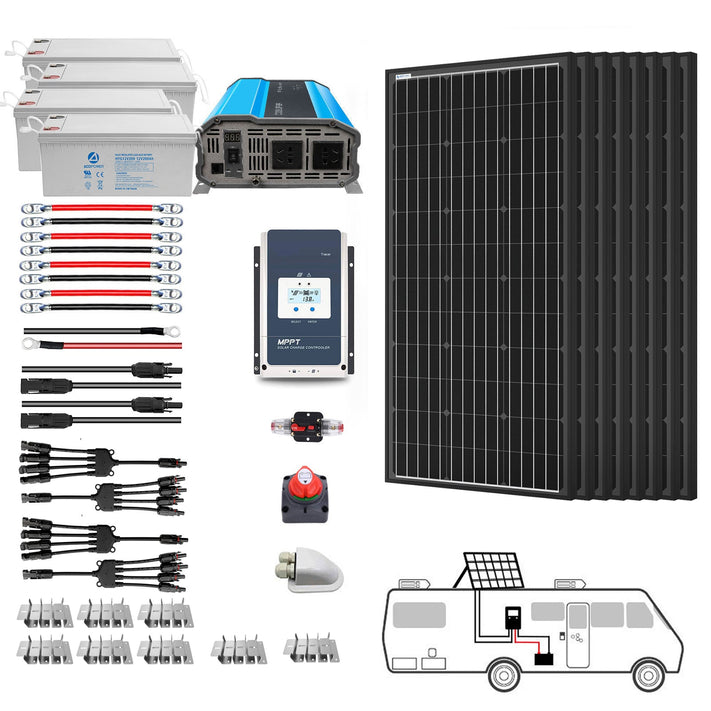

WHAT'S IN THE BOX:
8 x 100W Mono Solar Panel
1 x 3000W Inverter
4 x 200Ah Gel Battery
1 x 60A MPPT Charge Controller
1 x 50A Fuse
1 x Battery Switch
8 Sets x Mounting Z Bracket
1 Pair x 30ft 12AWG PV Cable
4 Pair x 1Ft 2AWG Battery Cable
1 Pair x 8FT 8AWG Tray Cable
1 x Cable Entry Housing
7 Pair x Y Branch Solar Panel Connectors
This Acopower 100W mono RV system is perfect for those who love outdoor adventures like RV trips, cabin stays, or boating. It's designed to provide reliable off-grid power. The system includes an 800ah gel battery, a 100W monocrystalline solar panel, and a 3kw inverter. The solar panel measures 40.2*20.1*1.4 inches and weighs 12.8 lb. The inverter has dimensions of 18.23(D) x 9.53(W) x 4.65(H) inches and weighs 12.1lb. The 12V 200 Ah rechargeable deep cycle gel battery has dimensions of 20.55x 9.37 (W) x 8.58 (H) inches (total height 8.74 inches) and weighs approximately 62.5kg (137.5lbs) ±3%.
