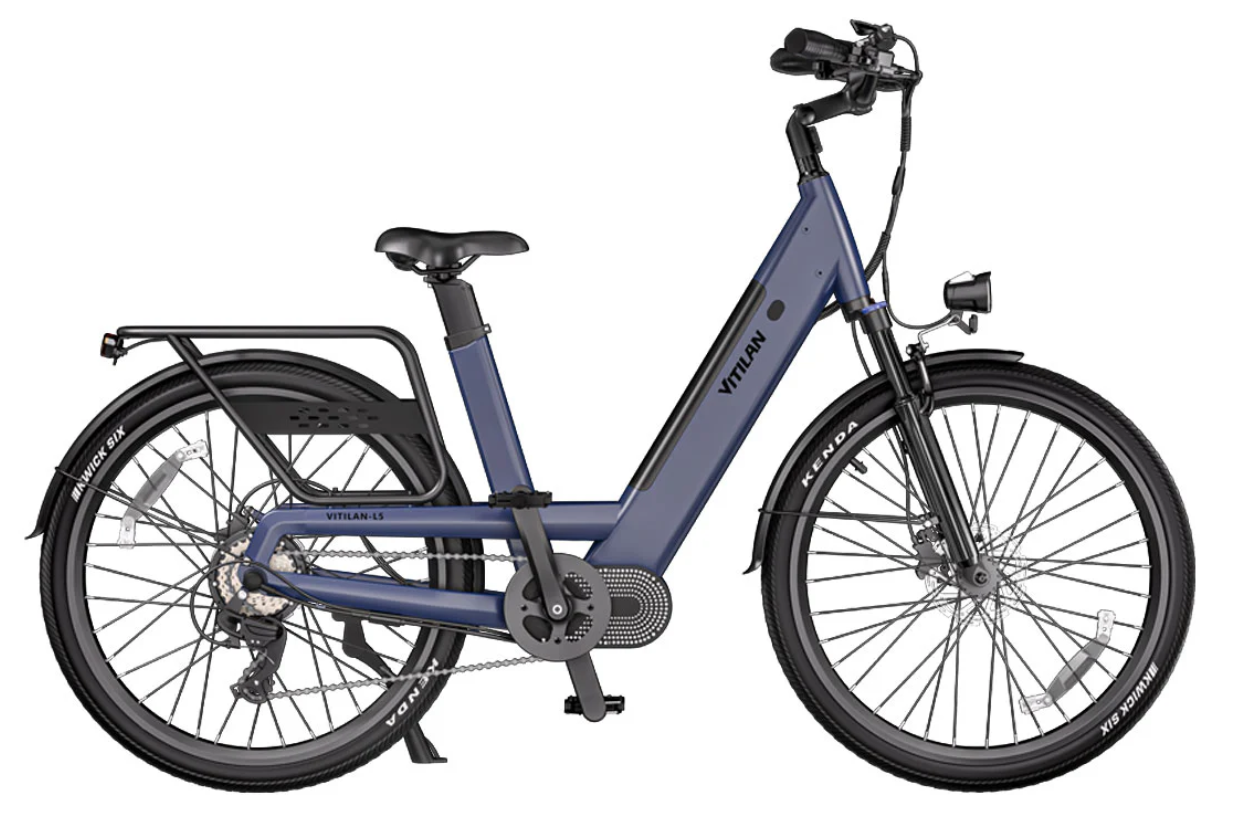

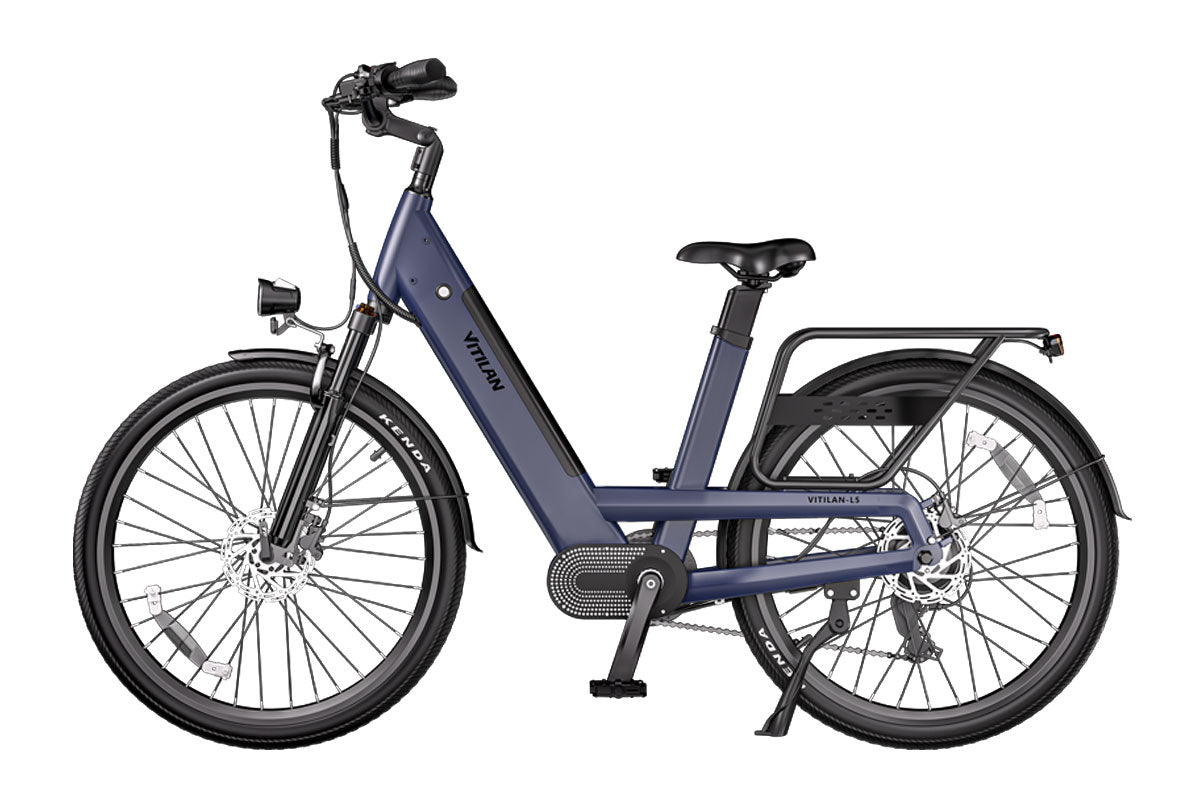

VITILAN L5 - The Ultimate Urban Commuter Electric Bike

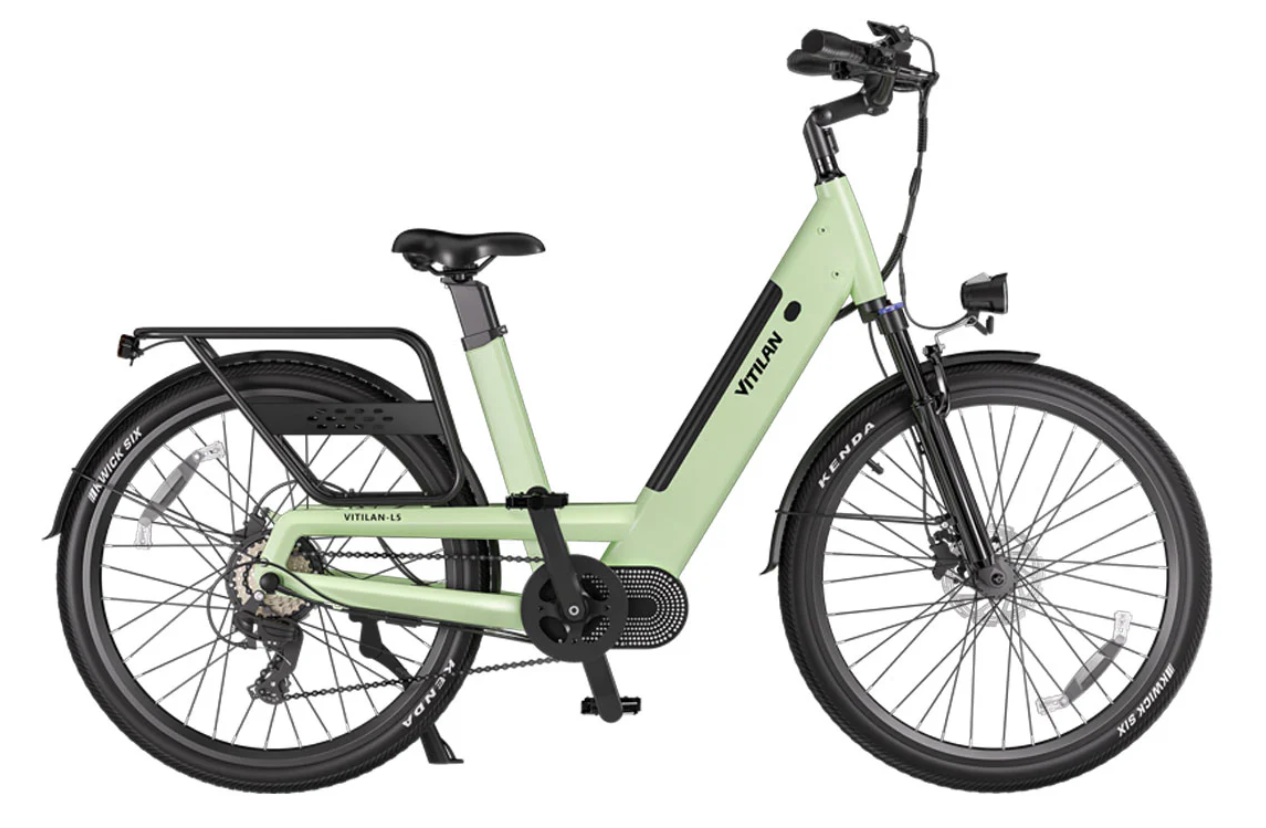

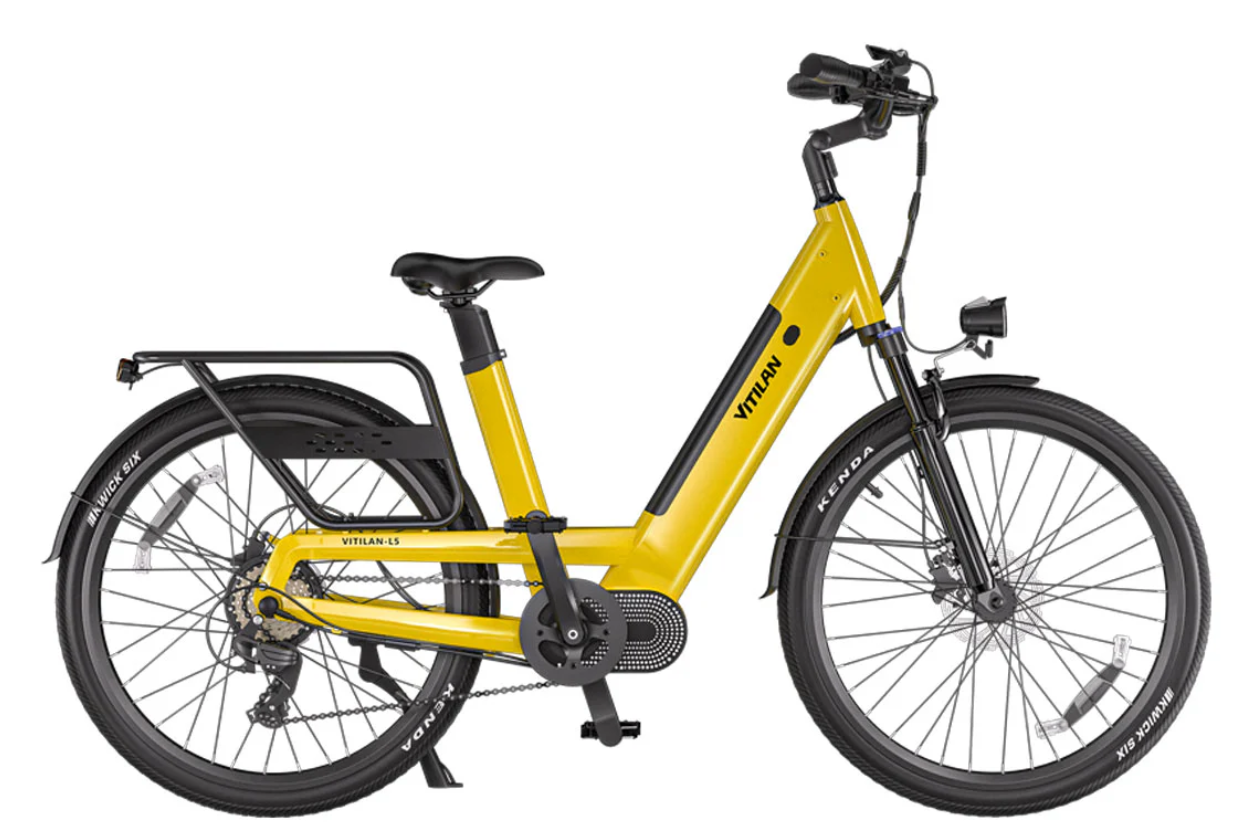

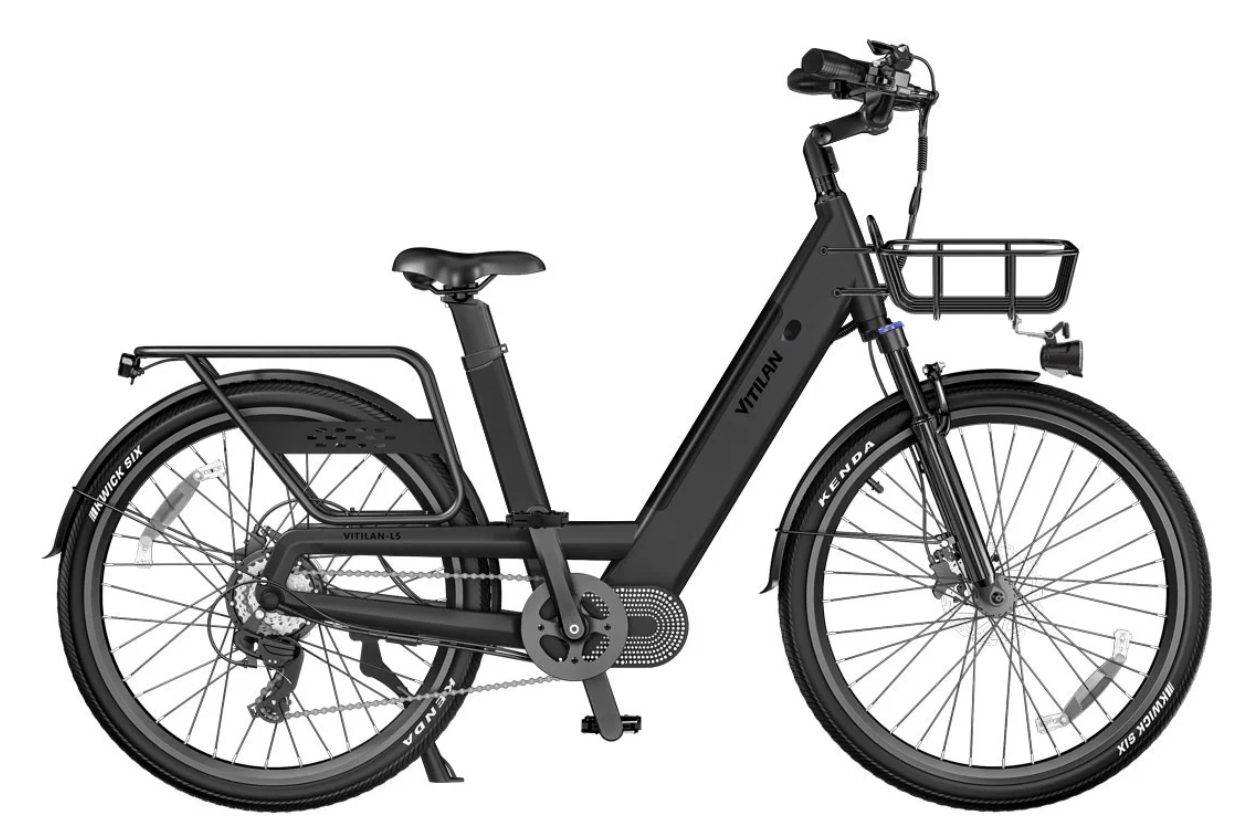

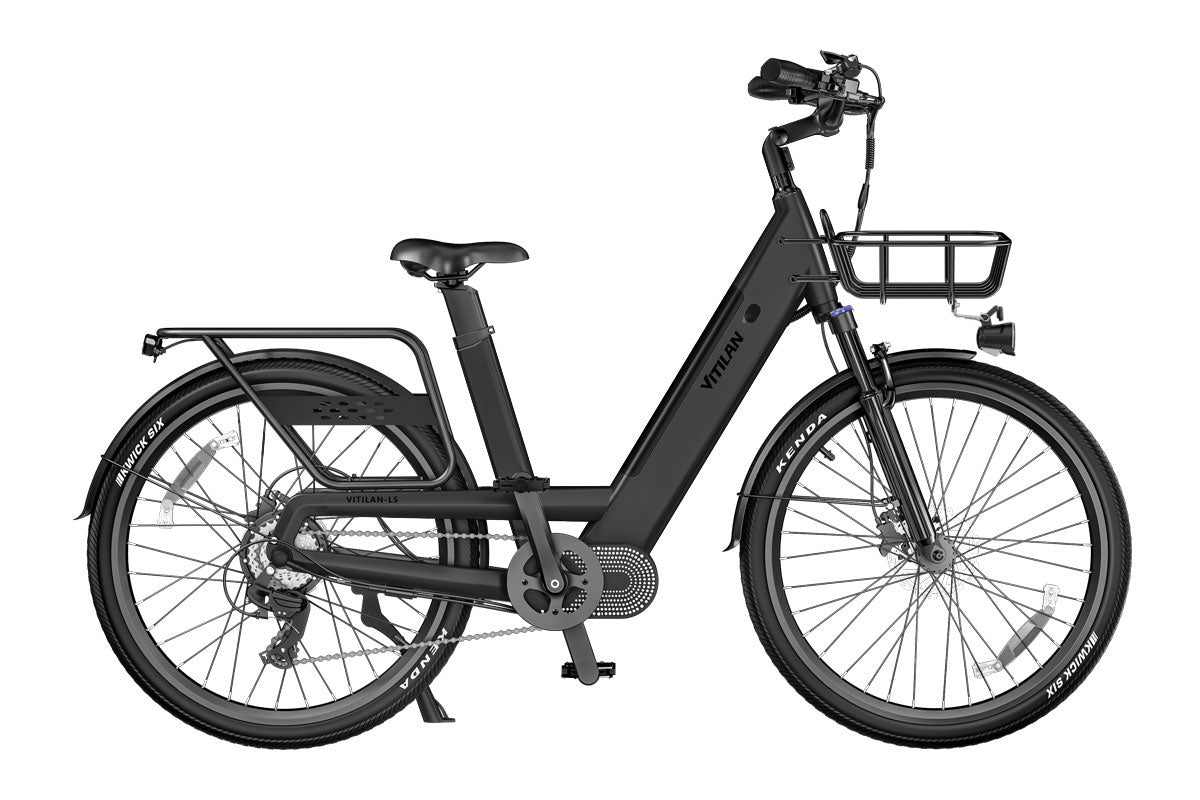

Arrive in style with the VITILAN L5! This dedicated urban commuter electric bike is a perfect blend of style, comfort, reliability, smart tech, and green energy. Explore the city lights with ease, cruising at 25 mph in 7 speeds (960W peak power). Customized in 4 color styles to suit your taste!

BRUSHLESS HUB MOTOR

Powered by a superior 500W motor with 960W peak power and 65Nm torque, scale uphill like a pro. The 25mph speed keeps you ahead, no matter how tough the terrain.

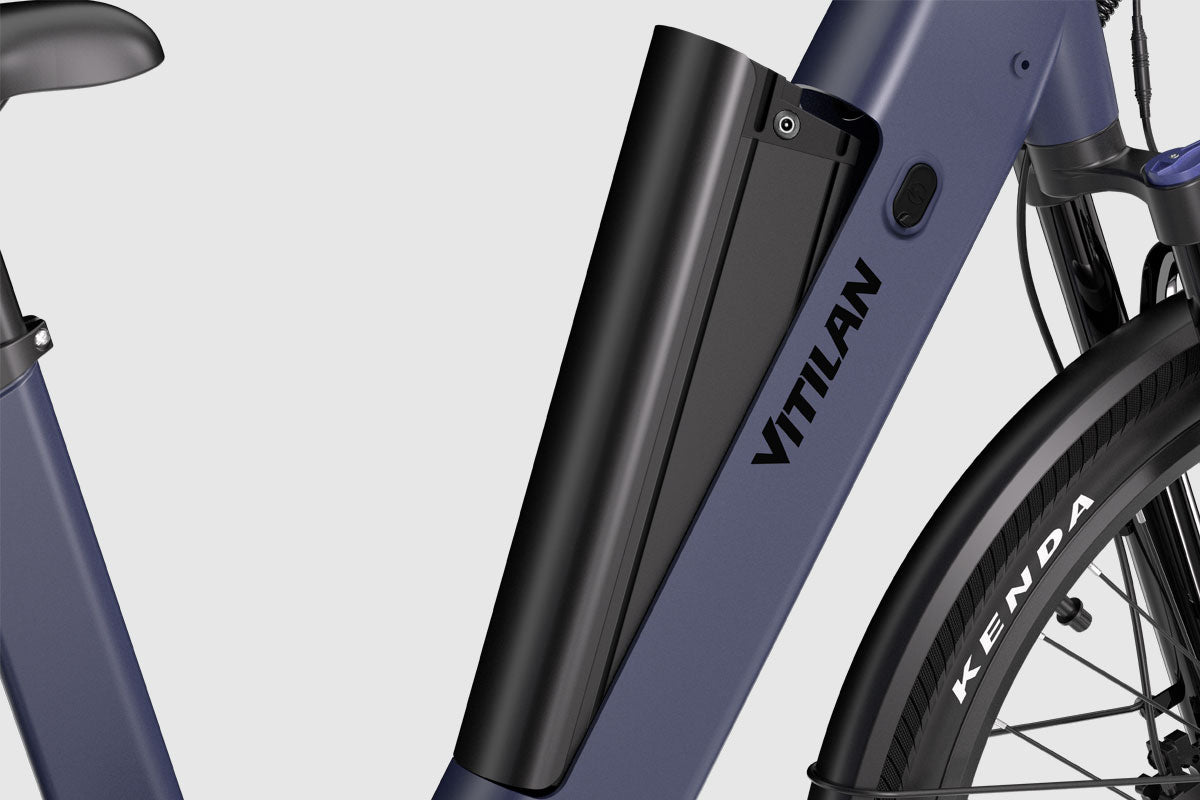

720Wh REMOVABLE BATTERY

Fitted with a 48V 15Ah removable Samsung lithium-ion battery. Charge while exploring additional riding options with a 2.0A quick charger. Enjoy up to 80 kilometers of range with reliable Samsung power.

SMOOTH PEPPY RIDE

Power pedal to work or glide along the beach. Smart torque transforms your movements into smooth motor power for a comfortable ride.

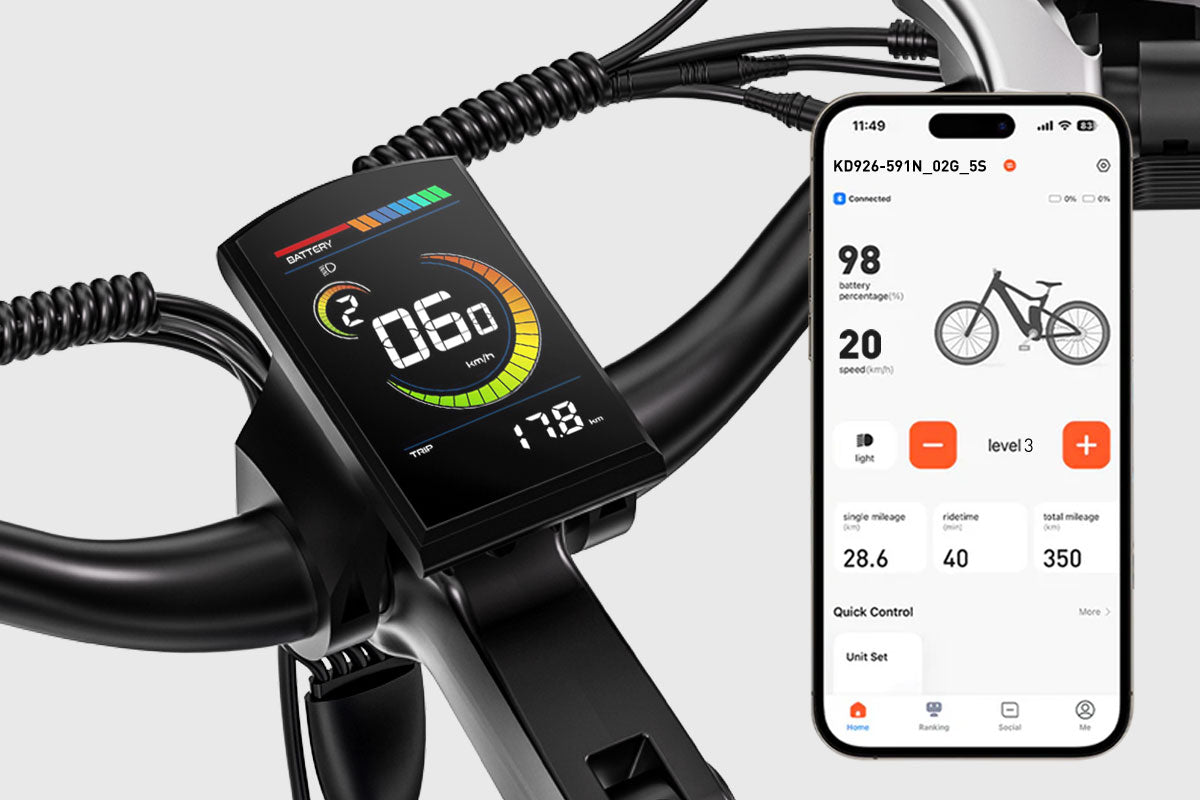

INTELLIGENT COLOR DISPLAY

Tempered glass laminated display for clear TFT color smart meter in sunlight. Automatic light sensor and Apple AirTag help locate your bike. Control settings with the Vitilan smart app.

Highlights:

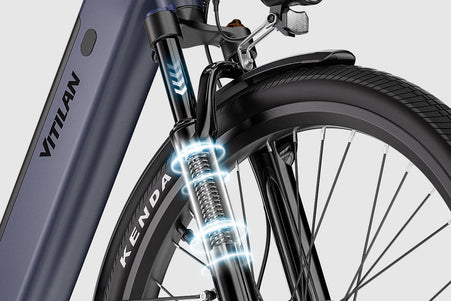

• Adjustable spring suspension fork for a smooth ride on bumpy roads
• 180mm Hydraulic brake for reliable braking in any condition
• Shimano 7-speed gear shift system for different terrains

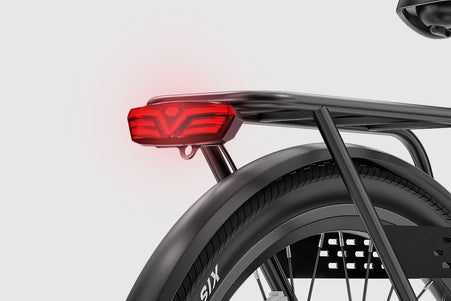

• Integrated taillights for visibility

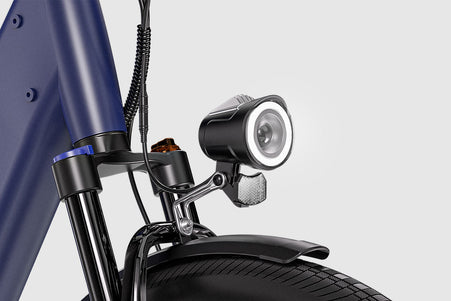

• Multi-angle headlight to light your way
• Versatile, anti-puncture tires for longer rides

Specifications:

TECHNICAL

Motor Hub: 48V, 500W (peak 960W) Motor, max torque 65Nm

Battery: 48V, 15Ah, 720Wh SAM-SUNG Li-ion Battery

Charger: 54.6V 2.0A, Operates on 110V-240V AC, 50-60Hz

Sensor: Torque sensor

Display: 48V Multi-function Intelligent Display

Throttle: Thumb Throttle

Headlight: High output integrated LED, IPX6

Rear Light: Signal Turn Light/48V LED Light

Pedal Assist Range: 60 Miles

Throttle Range: 45 Miles

Controller: 48V / 20A

Pedals: All aluminum pedal forging

FRAMESETS

Frame: Aluminum alloy, fully integrated

Crankset: 38T*170MM, sand-black aluminum alloy crank

Cassette: 7 Speeds, 14-28T

Rear Derailleur: SHIMANO RD-TY300

Shift Lever: SHIMANO SL-TX50-7R

Chain: KMC C8

Brake: 180mm front and rear Hydraulic disc brakes

Fork: Adjustable Spring Suspension Fork

IP Level: IPX6

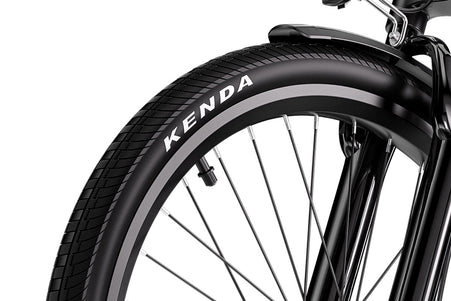

Tire: Kenda 26x2.4†puncture-resistant liner

Max Load: 330lbs

Max Speed: 25MPH

What's in the Box:

1 x VITILAN L5 Urban Commuter Electric Bike

1 x User Manual

The VITILAN L5 is the ultimate electric bike for urban commuting. Ideal for city dwellers, it offers a stylish and efficient way to get around. With a powerful motor, long-lasting battery, and smooth ride, you'll breeze through traffic. Technical specs include a 48V, 500W motor, 720Wh removable battery, and adjustable features for a comfortable ride.
