Powerful 3/4 HP 115V Submersible Utility Drainer Pump with All You Need
This amazing submersible pump is perfect for utility and draining jobs. It can handle water down to 1 3/8 inches deep. Here are its great features:
- • Superior stainless-steel parts for long life and high corrosion resistance.
- • Can handle stones and debris up to 3/4 inches in diameter.
- • 1 1/4-inch discharge outlet for quicker drainage.
Automatic Reset Thermal Protector
Keeps the motor safe from overheating. If the motor gets too hot, it stops, then restarts automatically when cooled.
Float Switch
Allows for optional automatic operation. Simple installation. Turns on at a 45¡ã angle and off when back to normal.
Highlights:
115V, 60 Hz, single phase, permanent split capacitor motor.
Automatic thermal overload protection.
Clog-resistant cast stainless steel impeller.
Accommodates water temperatures ranging from 32¡ãF to 130¡ãF.
Permanently lubricated ball bearings.
Equipped with 15-foot, 18/3 grounding-type power cord.
Convenient, top-mounted handle.
Rubber feet to eliminate scratching
SPECIFICATIONS:
Model: PCD-1000
HP: 3/4
Motor Full Load (Amps): 6.4
RPM: 3450
Minimum Circuit Requirement: 15 amps
Liquid Temperature Range: 32/130¡ãF-0/54¡ãC
Switch Setting On-12' (30 cm); Off- 6' (15.2 cm)
Pumps Down To: 1 3 8' (3.5 cm)
Pump Performance TDH/GPM
5': 45.5
10': 34.0
15': 21.5
20': 12.0
Shut Off Head- 26.2'-N/A
WHAT'S IN THE BOX:

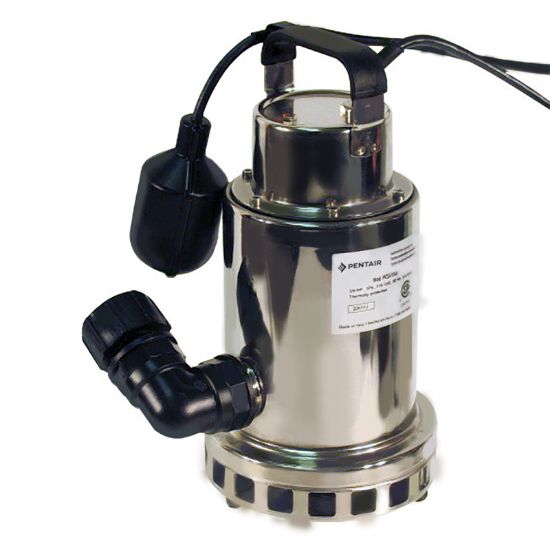

1 x Pentair PCD-1000 Submersible Stainless Steel Utility Pump
This submersible utility drainer pump is designed for various draining applications. Ideal for homeowners, DIY enthusiasts, and small business owners who need to remove water efficiently. With a 3/4 HP motor, it can pump water down to 1 3/8 inches deep. It has a 15-foot, 18/3 grounding cord. The pump can handle stones and debris up to 3/4 inches in diameter, making it great for handling water with small solids. It operates on 115V, 60 Hz, single phase power.
